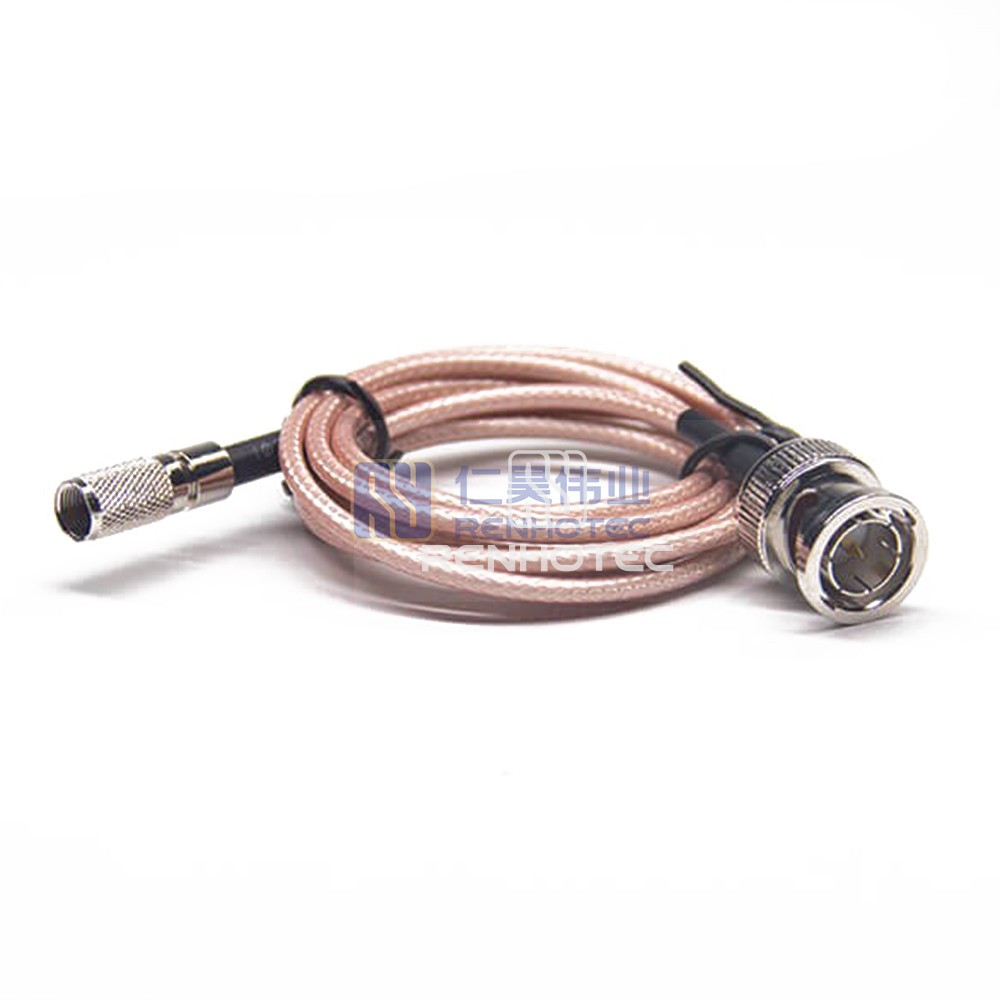

product image

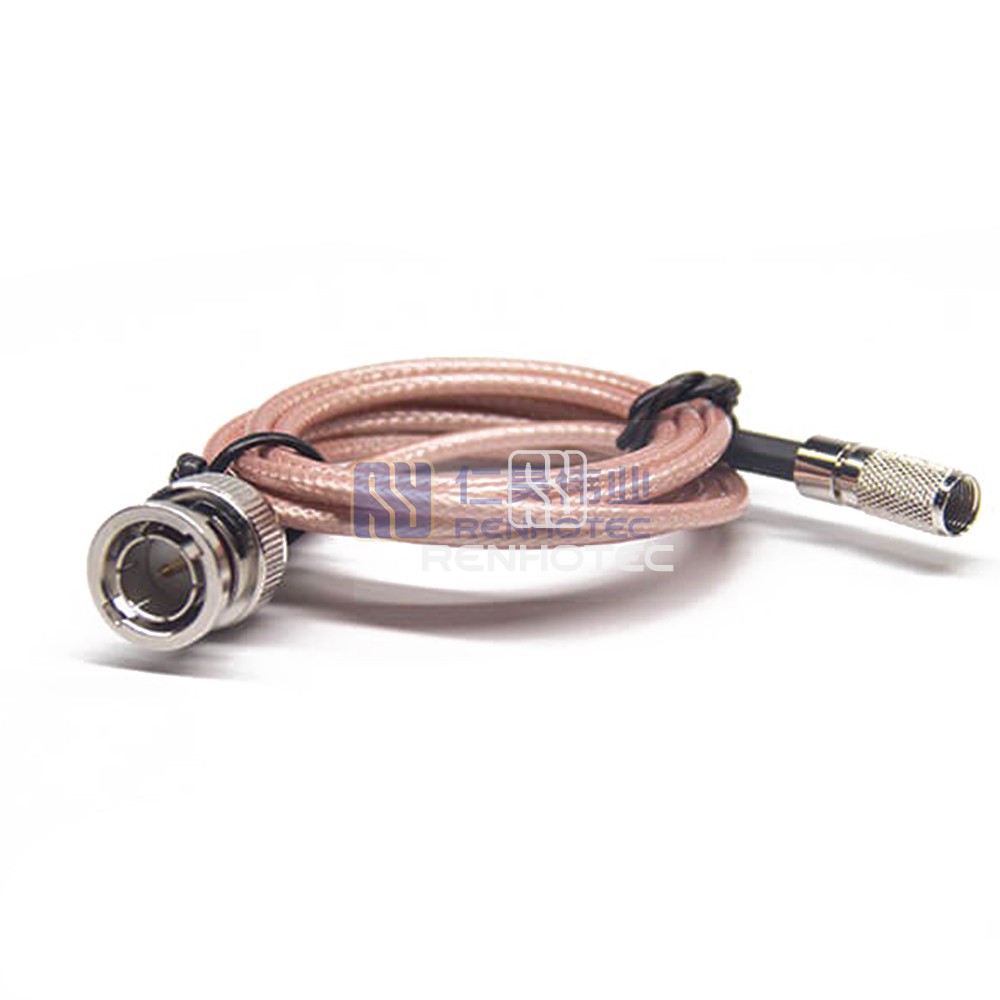

product image

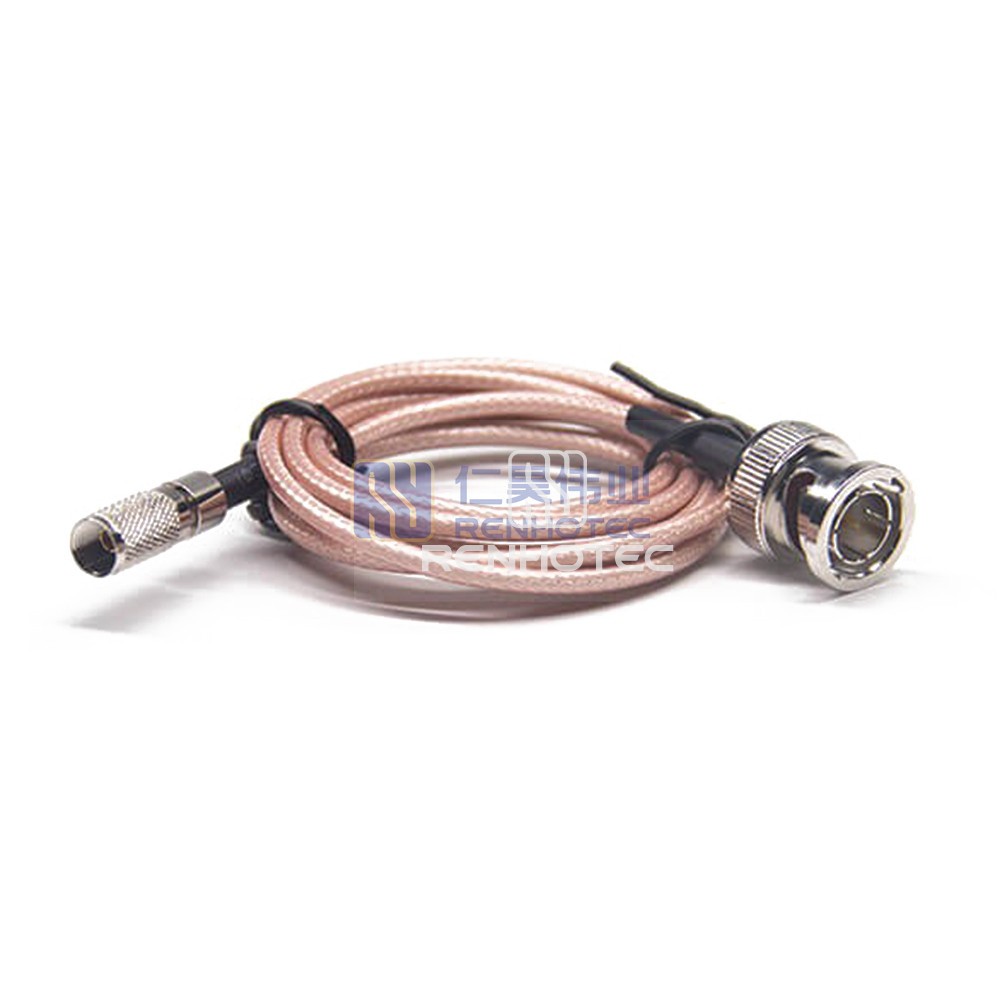

product image

R02-B01-10131-100

BNC Plug to 1.0/2.3 Plug RF Cable Assembly with 75 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Plug to 1.0/2.3 Plug RF Cable Assembly with 75 Ohm RG316 Coax. Ideal for reliable and secure RF signal connections.
GeneralMechanicalElectricalEnvironmental
General
Conversion StyleBNC to 1.0/2.3
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector Series1.0/2.3 Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG316
Electrical
Impedance75 Ohms
Frequency Range0-4Ghz
Environmental
Operating Temperature-40°C ~ + 85°C
