Products > RF Coaxial Connector > Coaxial Connector F Type Straight Jack Female Pin Panel Mount Two Flange 75 Ohm
product image

RHT-611-0025

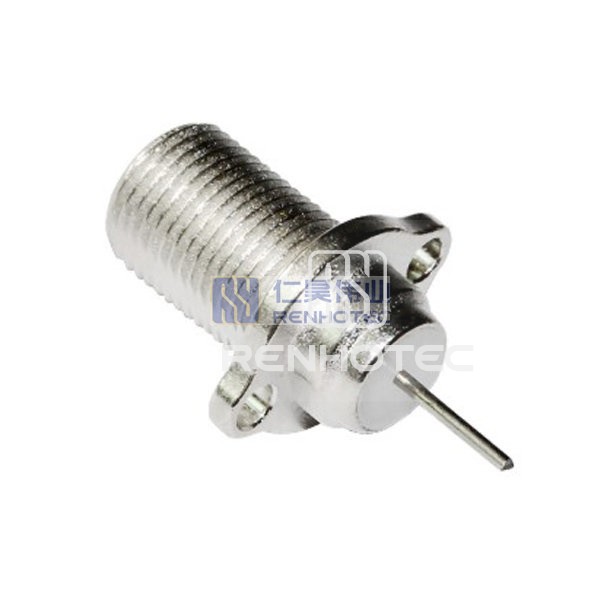

Coaxial Connector F Type Straight Jack Female Pin Panel Mount Two Flange 75 Ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Purchase high-quality Coaxial Connector F Type Straight Jack Female Pin Panel Mount with Two Flange, 75 Ohm impedance, ideal for industrial and commercial applications. Contact us for a quote.
GeneralMaterialMechanicalElectrical
General
Connector TypeJack
OrientationStraight
Contact TypeFemale Pin
Number of Ports1
Feature-
Material
Body MaterialCopper Alloy
PlatingNickel Plated
Contact MaterialBrass
Contact PlatingTin
Mechanical
Fastening TypeThreaded
TerminationSolder
Mounting TypePanel Mount
Mount FeatureTwo Flange
Suitable Cable-
Electrical
Impedance75 Ohms
Frequency(max)0-3Ghz
