Products > RF Coaxial Connector > Coaxial Connector SMA Right Angle Jack Female Pin Panel Mount Two Flange 50 Ohm
RHT-612-0256

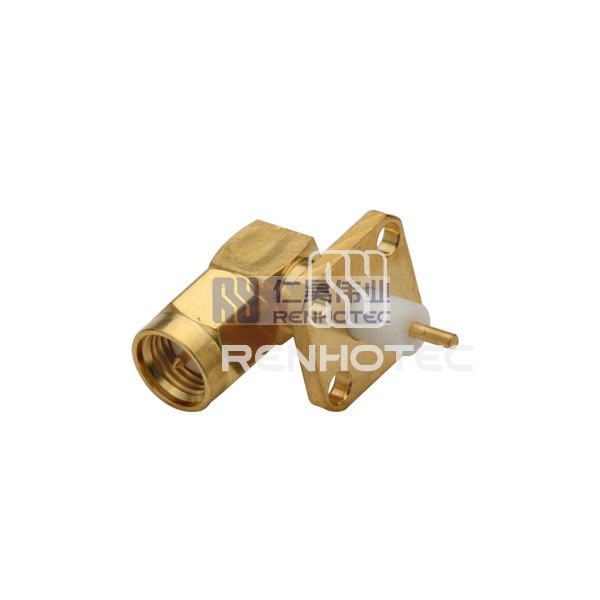

Coaxial Connector SMA Right Angle Jack Female Pin Panel Mount Two Flange 50 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Get high-quality Coaxial SMA Right Angle Connectors from trusted suppliers. This SMA Female Pin Panel Mount connector features Two Flange design and 50 Ohm impedance. Contact us for a quotation on RHT-612-0256.
MechanicalGeneralElectricalMaterial
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Four Flange |
| Suitable Cable | - |
| General | |
|---|---|
| Connector Type | Male |
| Orientation | Right Angle |
| Contact Type | Male Pin |
| Number of Ports | 1 |
| Feature | - |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency(max) | 6GHz |
| Material | |
|---|---|
| Body Material | Copper Alloy |
| Plating | Gold Plated |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
