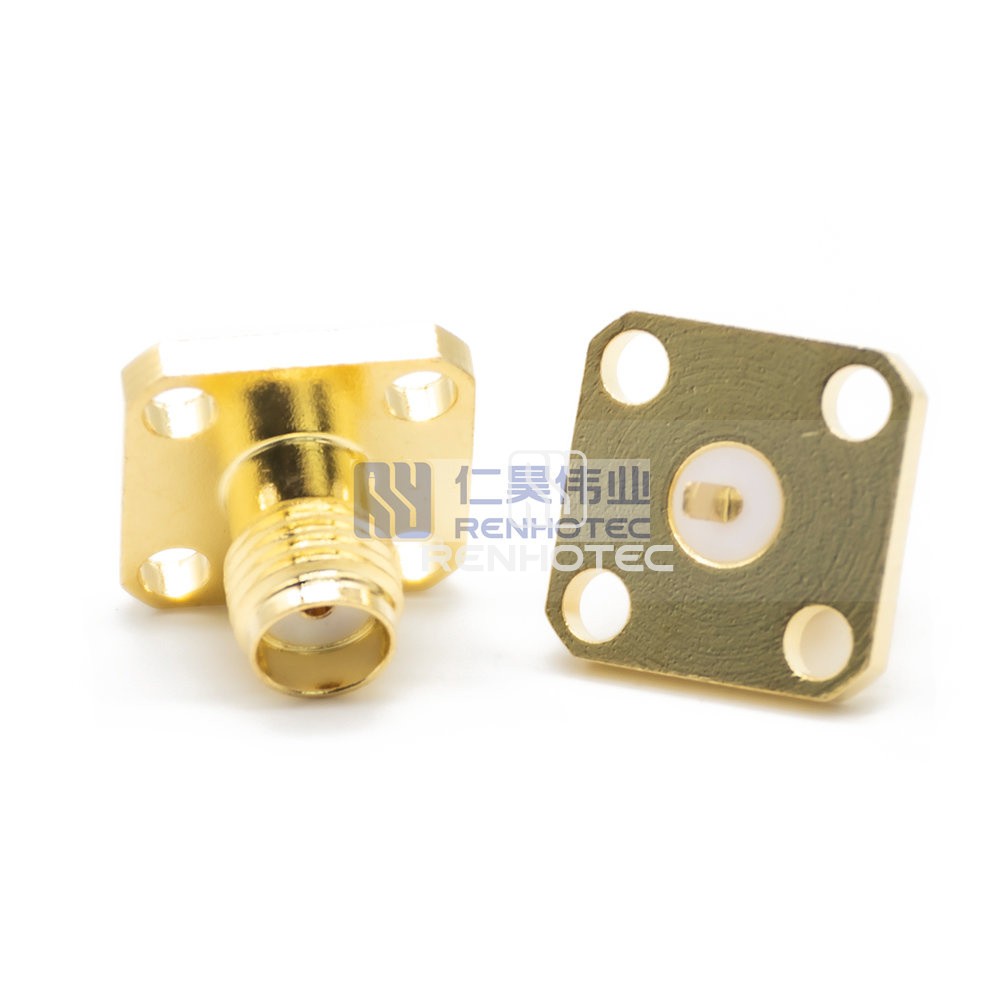

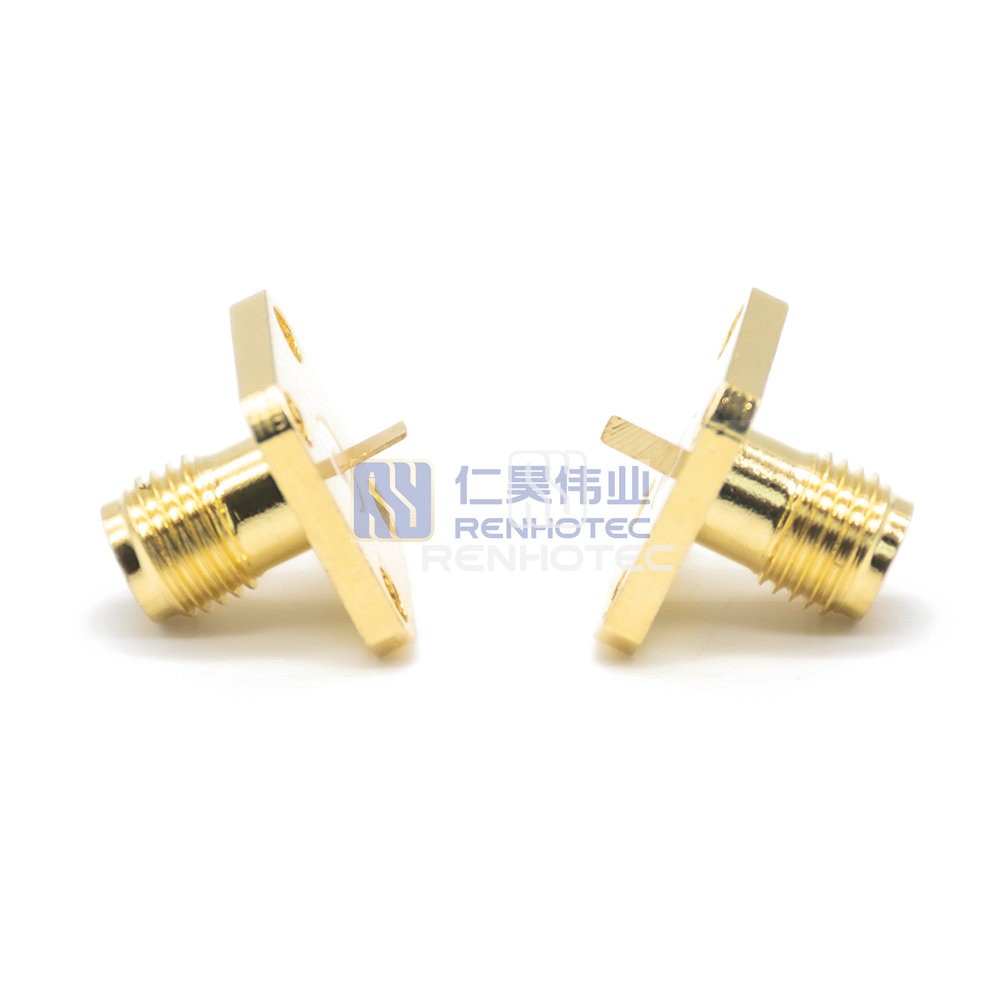

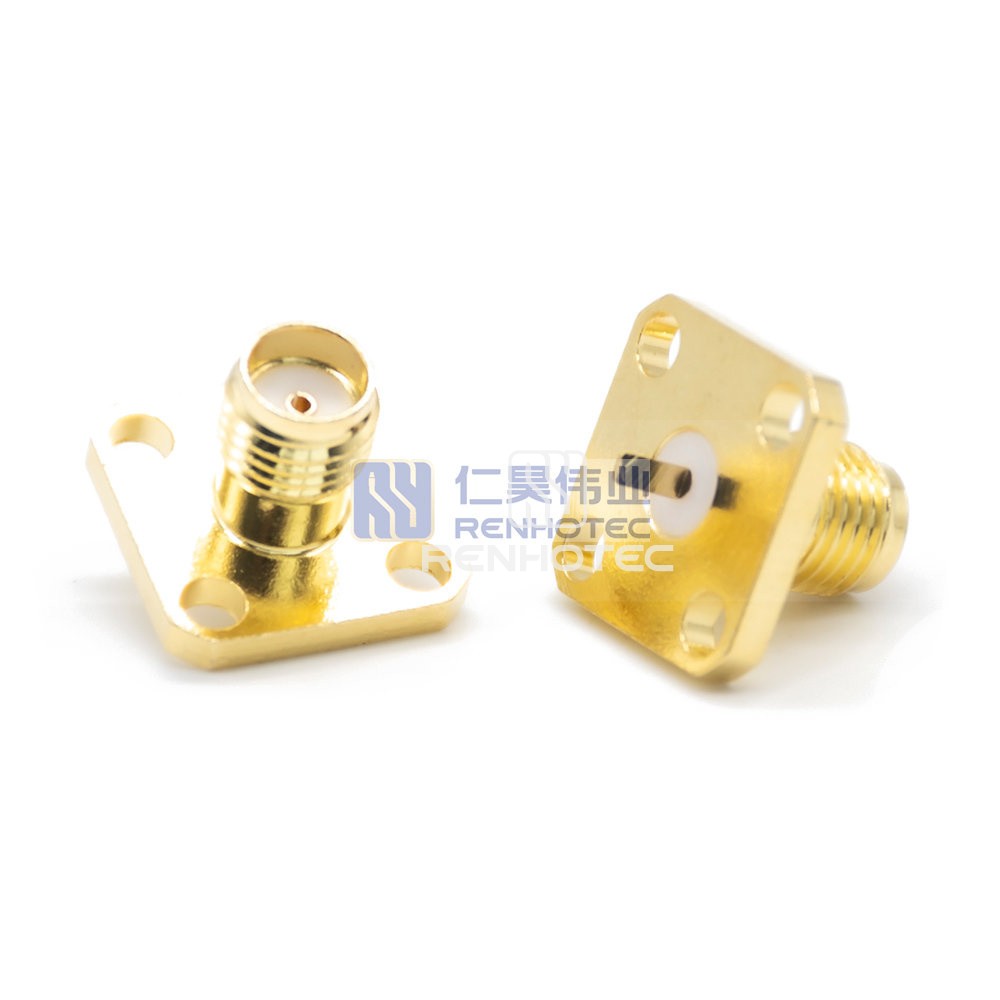

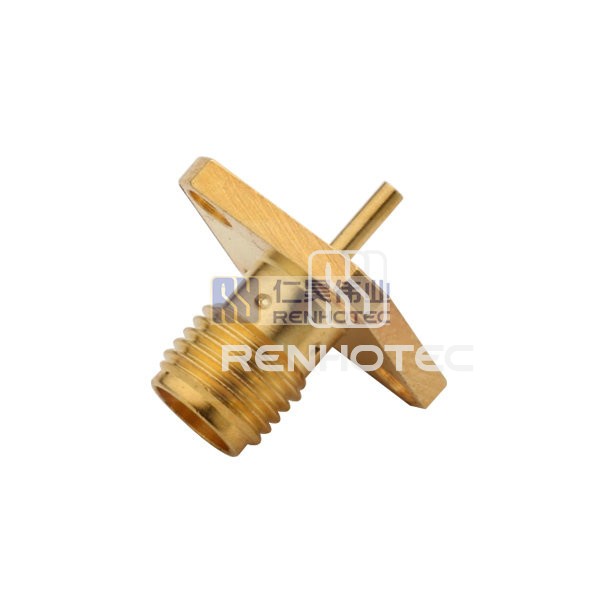

Products > RF Coaxial Connector > Coaxial Connector SMA Straight Jack Female Pin Panel Mount Bulkhead 50 Ohm
RHT-612-0242
Coaxial Connector SMA Straight Jack Female Pin Panel Mount Bulkhead 50 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMA Straight Jack Female Pin Panel Mount Bulkhead Coaxial Connector with 50 Ohm impedance. Contact us for a quote on RHT-612-0242 SMA connectors for your business needs.
MechanicalGeneralElectricalMaterial
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Four Flange |
| Suitable Cable | - |
| General | |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Ports | 1 |
| Feature | - |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency(max) | 6GHz |
| Material | |
|---|---|
| Body Material | Copper Alloy |
| Plating | Gold Plated |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
