RHT-612-0246

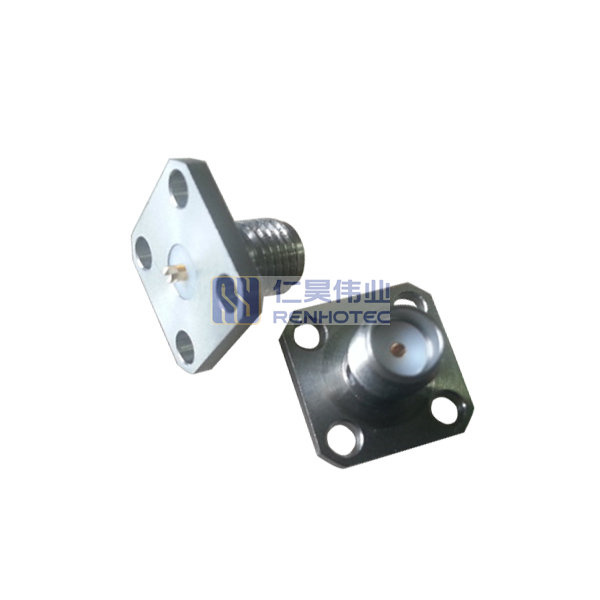

Coaxial Connector SMA Straight Jack Male Pin Panel Mount Bulkhead 50 Ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Bulkhead SMA Straight Jack Male Pin coaxial connector with 50 Ohm impedance for reliable signal transmission. Contact us for a quote on RHT-612-0246.
GeneralMaterialMechanicalElectrical
General
Connector TypeJack
OrientationStraight
Contact TypeFemale Pin
Number of Ports1
Feature-
Material
Body MaterialCopper Alloy
PlatingNickel Plated
Contact MaterialPhosphor Bronze
Contact PlatingGold
Mechanical
Fastening TypeThreaded
TerminationSolder
Mounting TypePanel Mount
Mount FeatureFour Flange
Suitable Cable-
Electrical
Impedance50 Ohms
Frequency(max)6GHz
