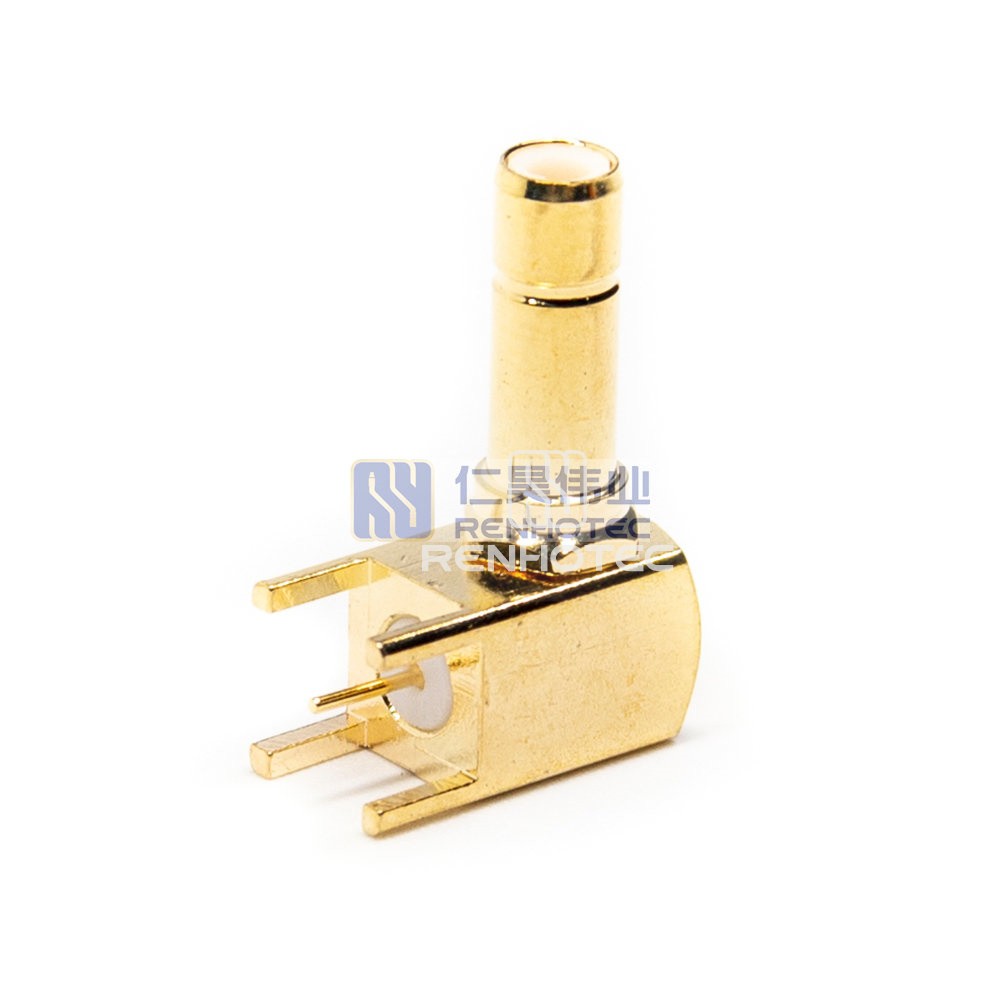

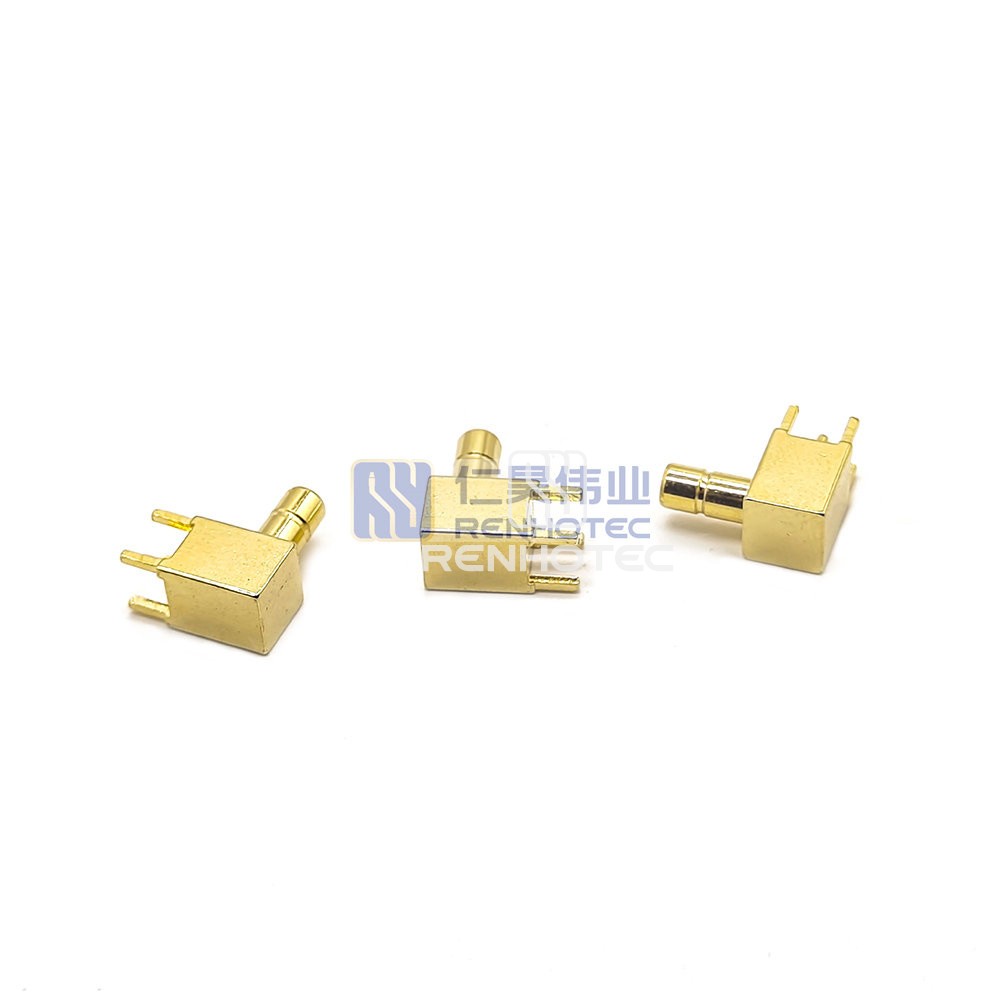

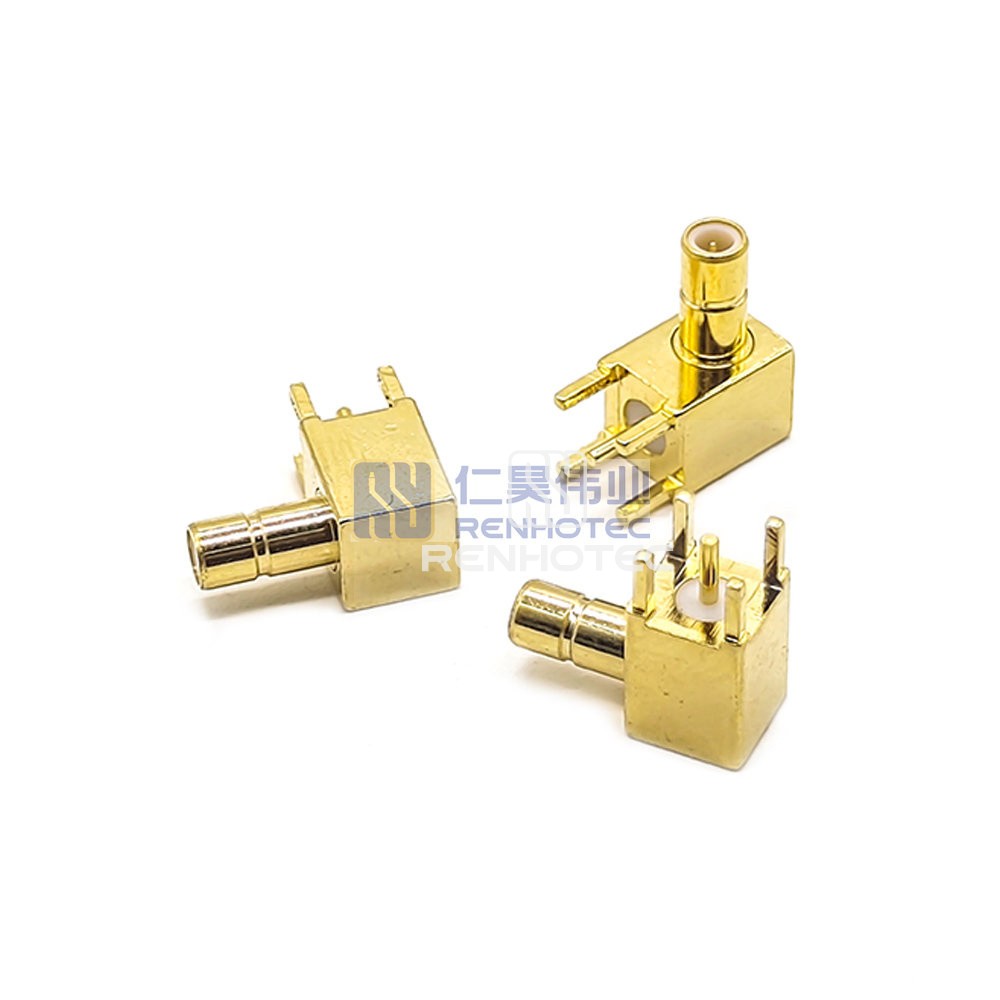

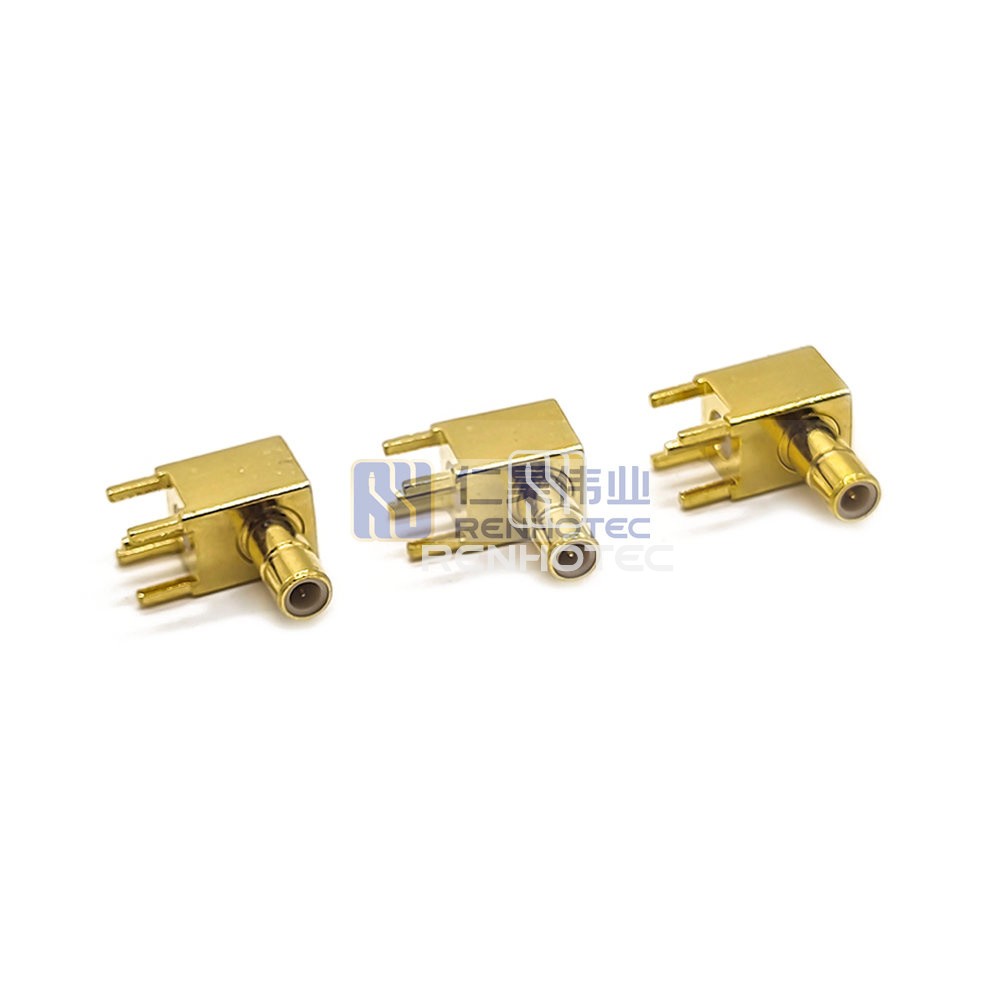

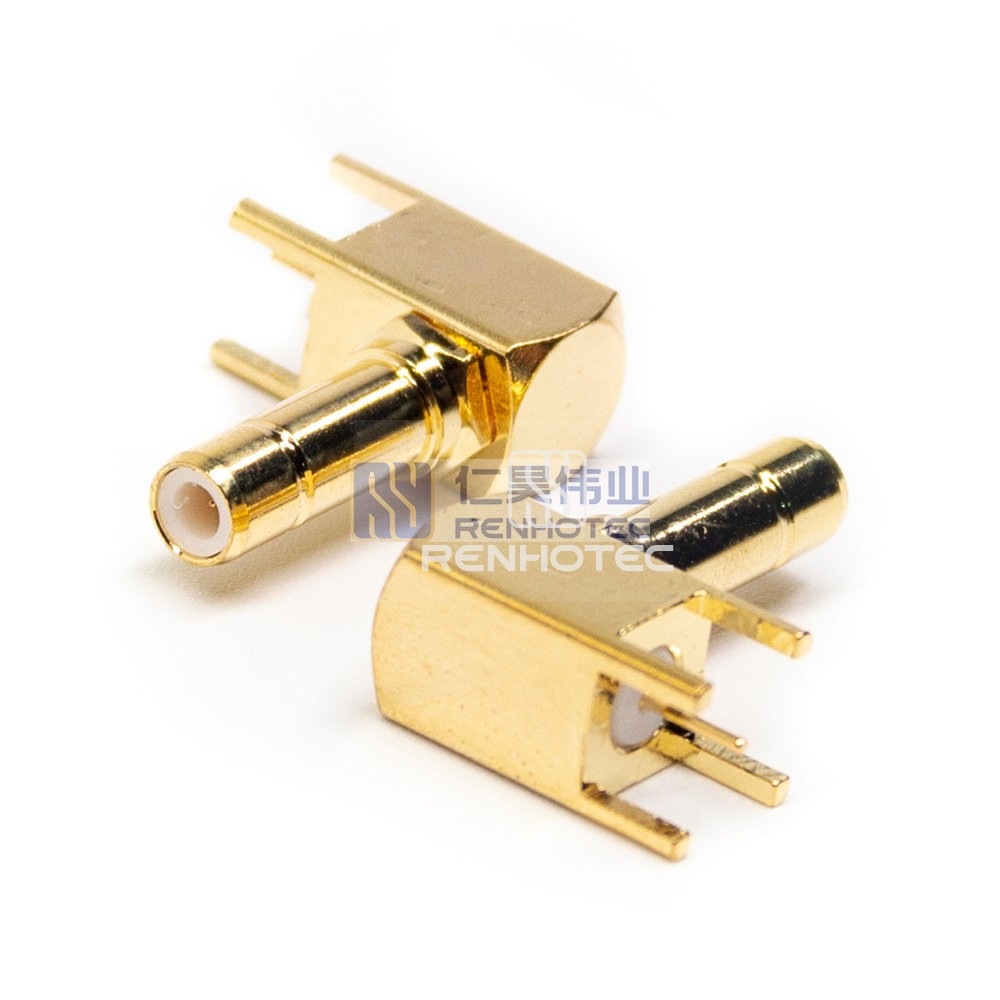

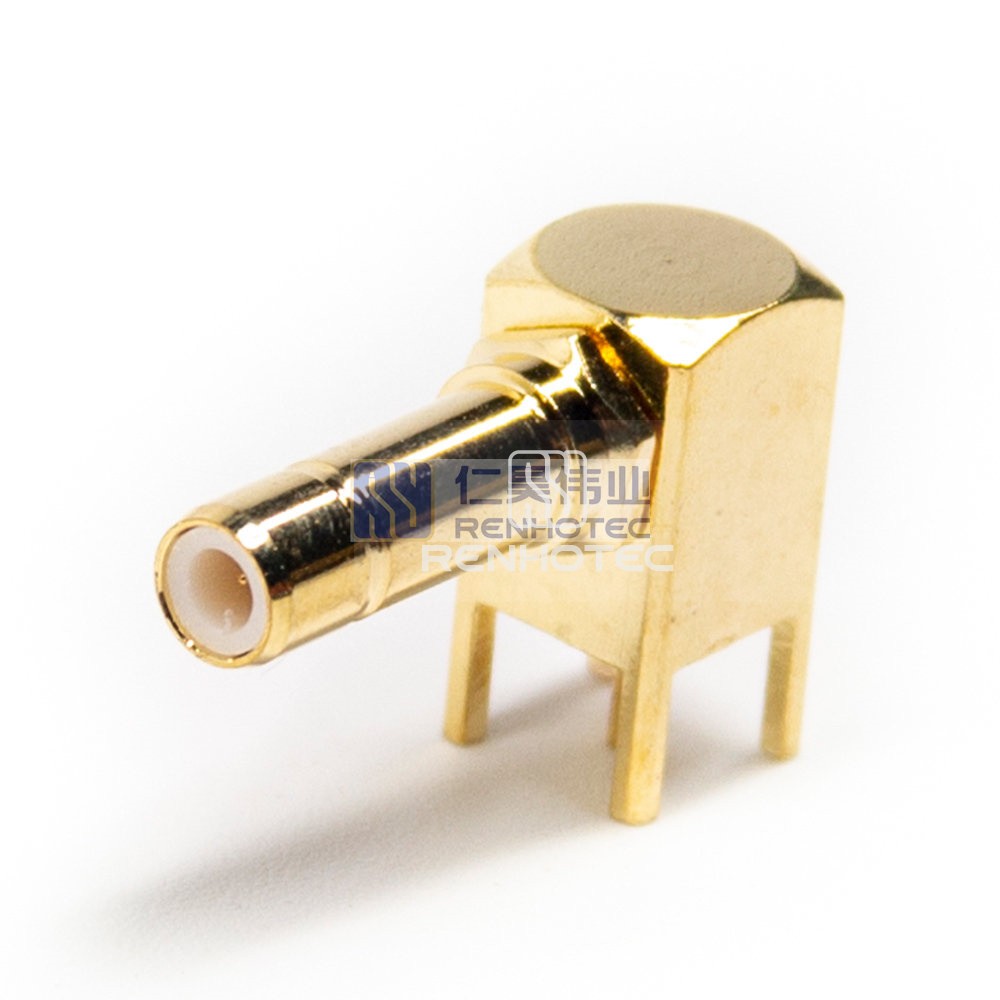

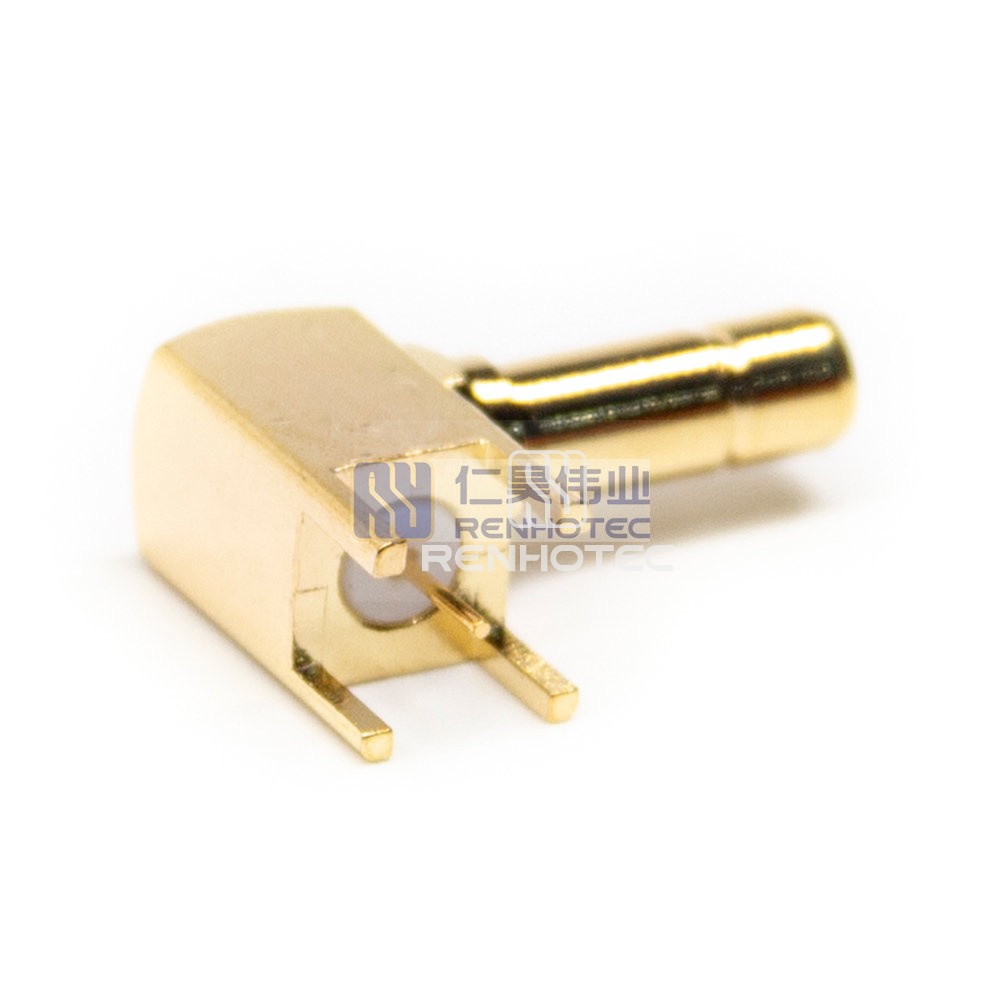

Products > RF Coaxial Connector > Coaxial ConnectorSMB Straight Jack Male Pin Panel Mount Edge Mount 75 Ohm
RHT-626-0115
Coaxial ConnectorSMB Straight Jack Male Pin Panel Mount Edge Mount 75 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMB straight jack male pin panel mount edge mount coaxial connector with 75 Ohm impedance. Ideal for various RF applications. Contact us for a quote on SKU RHT-626-0115.
MechanicalGeneralElectricalMaterial
| Mechanical | |
|---|---|
| Fastening Type | Snap on |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Through Hole |
| Suitable Cable | - |
| General | |
|---|---|
| Connector Type | Jack |
| Orientation | Right Angle |
| Contact Type | Male Pin |
| Number of Ports | 1 |
| Feature | - |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency(max) | 4GHz |
| Material | |
|---|---|
| Body Material | Copper Alloy |
| Plating | Gold Plated |
| Contact Material | Brass |
| Contact Plating | Gold |
