Products > RF Coaxial Connector > Coaxial ConnectorSMB Straight Jack Male Pin Panel Mount Two Flange 50 Ohm
RHT-626-0228

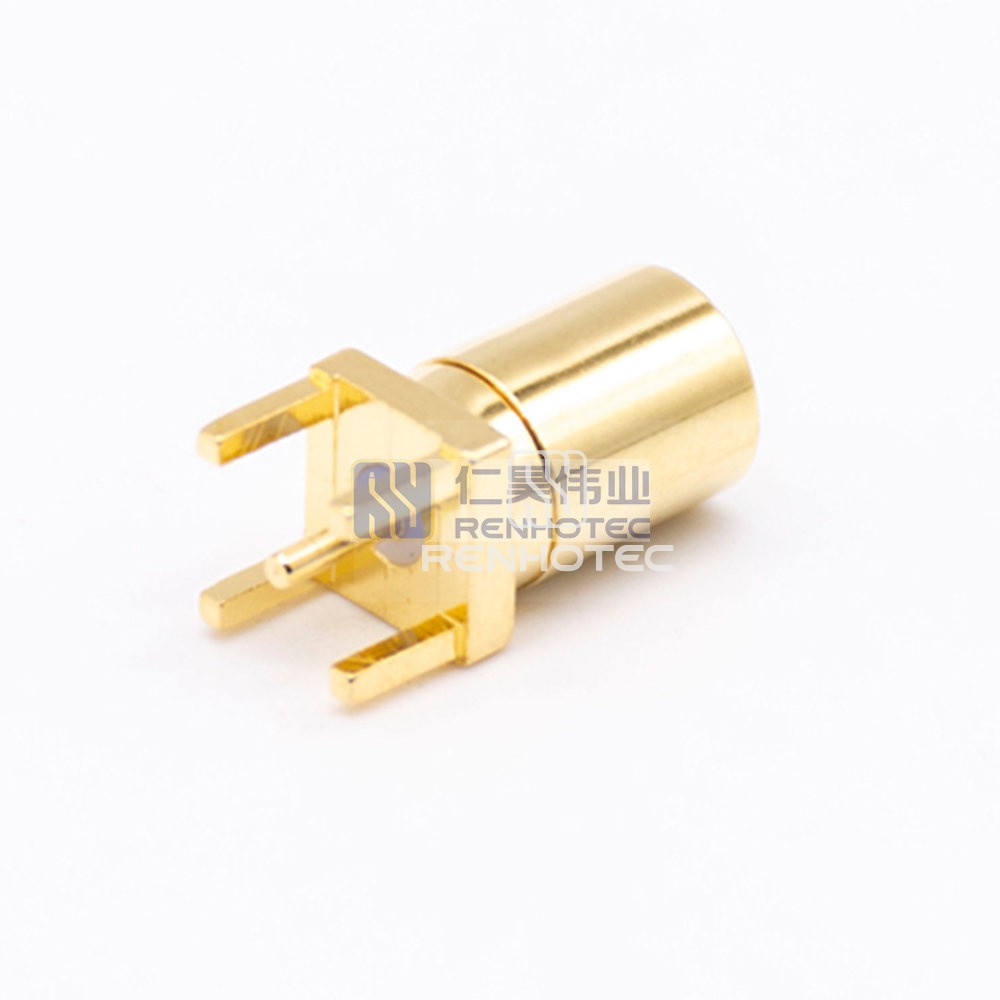

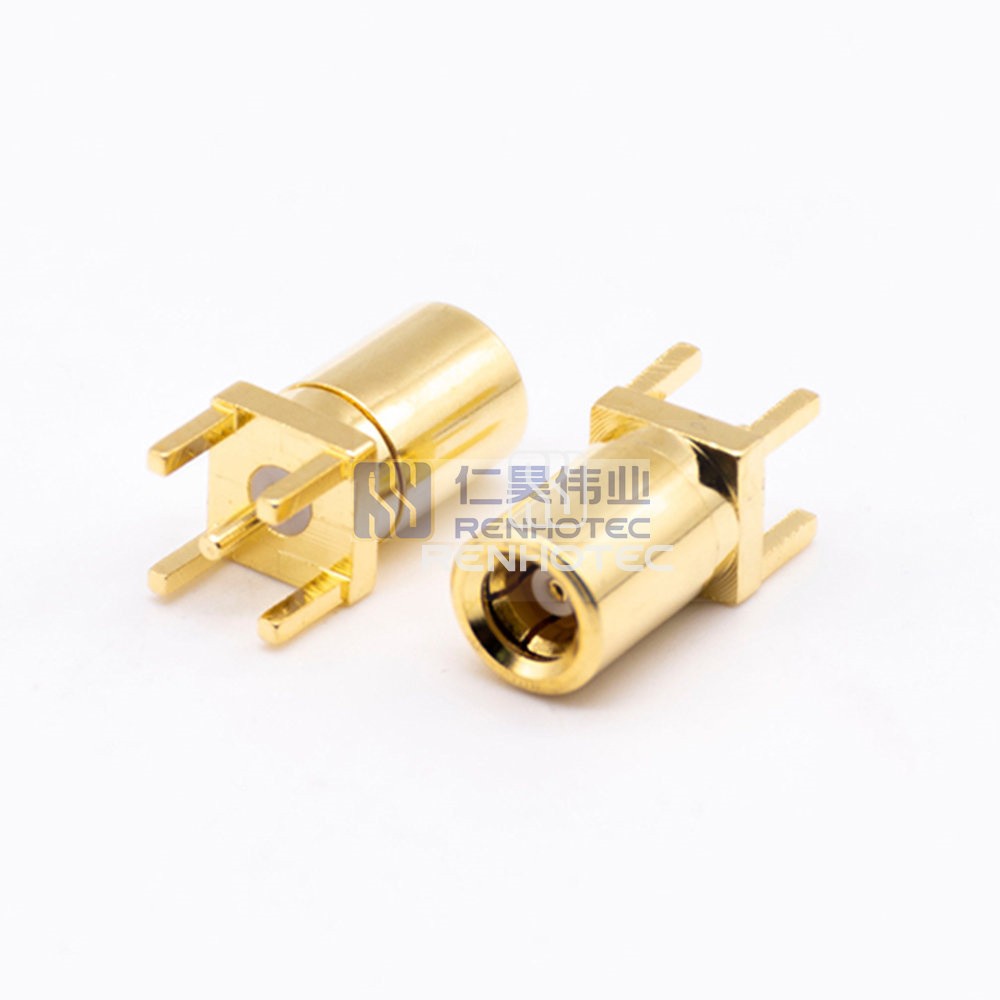

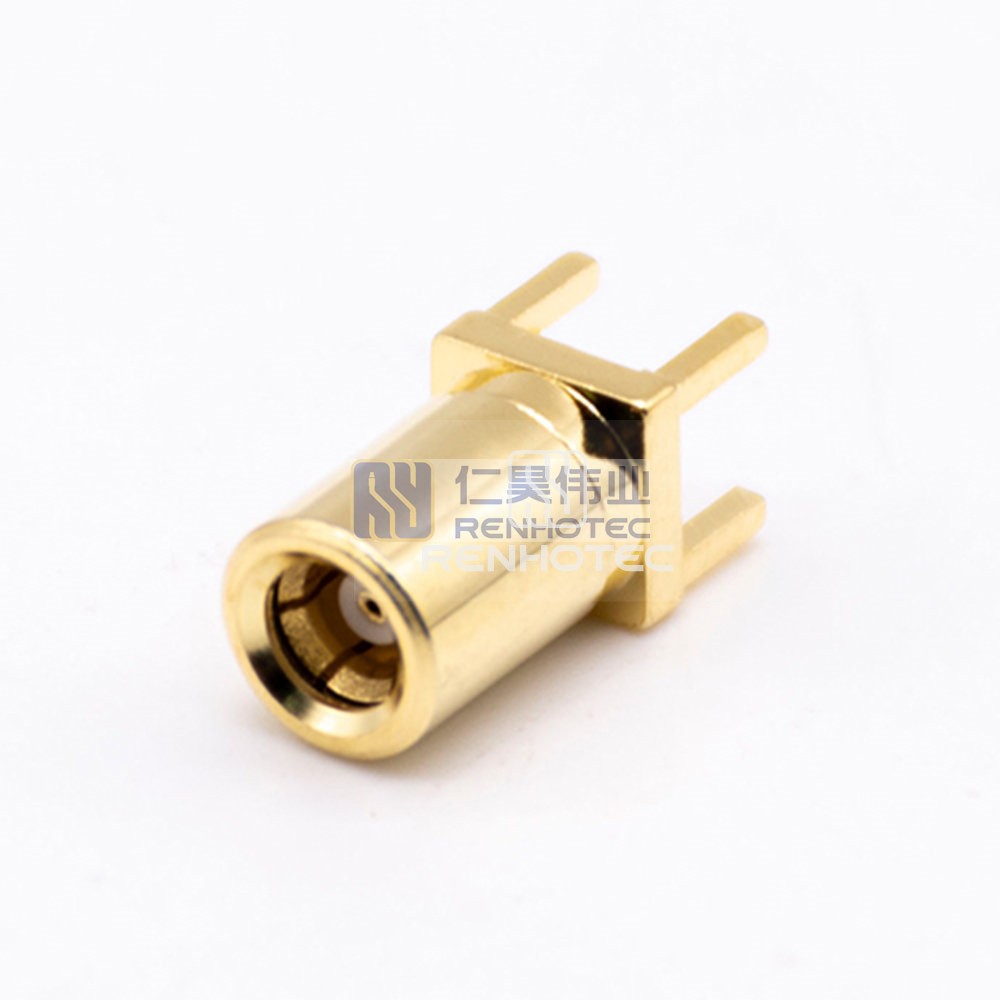

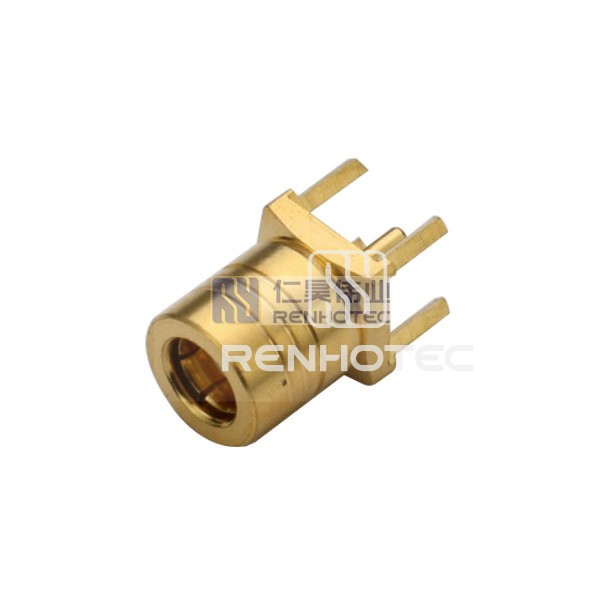

Coaxial ConnectorSMB Straight Jack Male Pin Panel Mount Two Flange 50 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Purchase high-quality Coaxial Connector SMB Straight Jack Male Pin Panel Mount Two Flange 50 Ohm from our B2B platform. Contact us for a custom quotation today!
MechanicalGeneralElectricalMaterial
| Mechanical | |
|---|---|
| Fastening Type | Snap on |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Through Hole |
| Suitable Cable | J1.5 |
| General | |
|---|---|
| Connector Type | Male |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Ports | 1 |
| Feature | - |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency(max) | 4GHz |
| Material | |
|---|---|
| Body Material | Copper Alloy |
| Plating | Gold Plated |
| Contact Material | Brass |
| Contact Plating | Gold |
