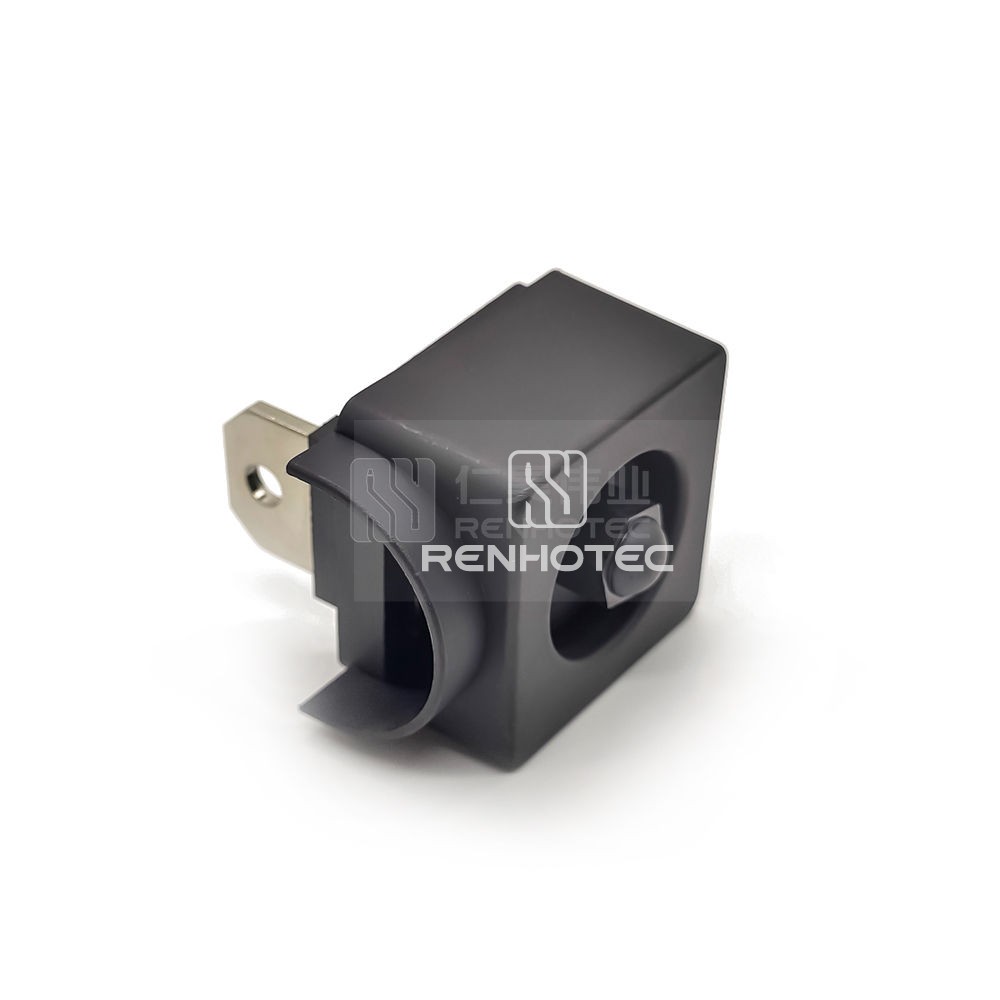

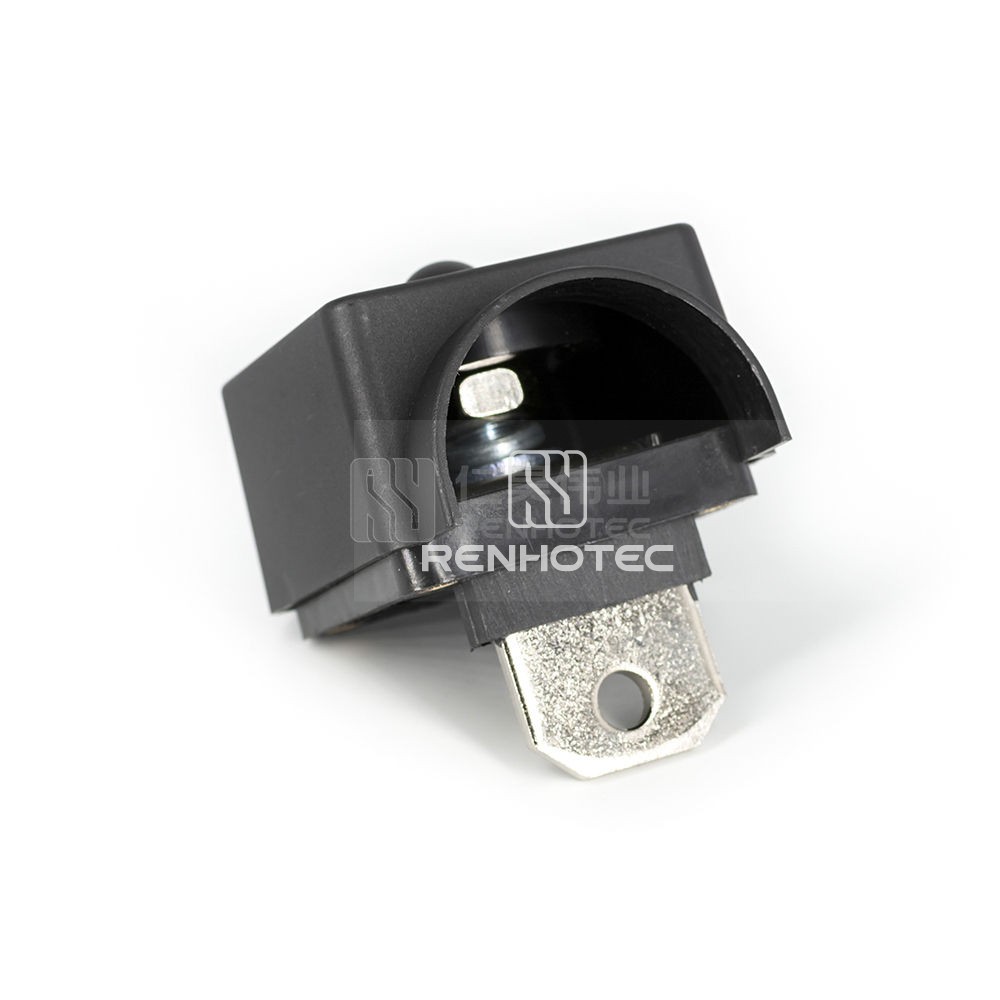

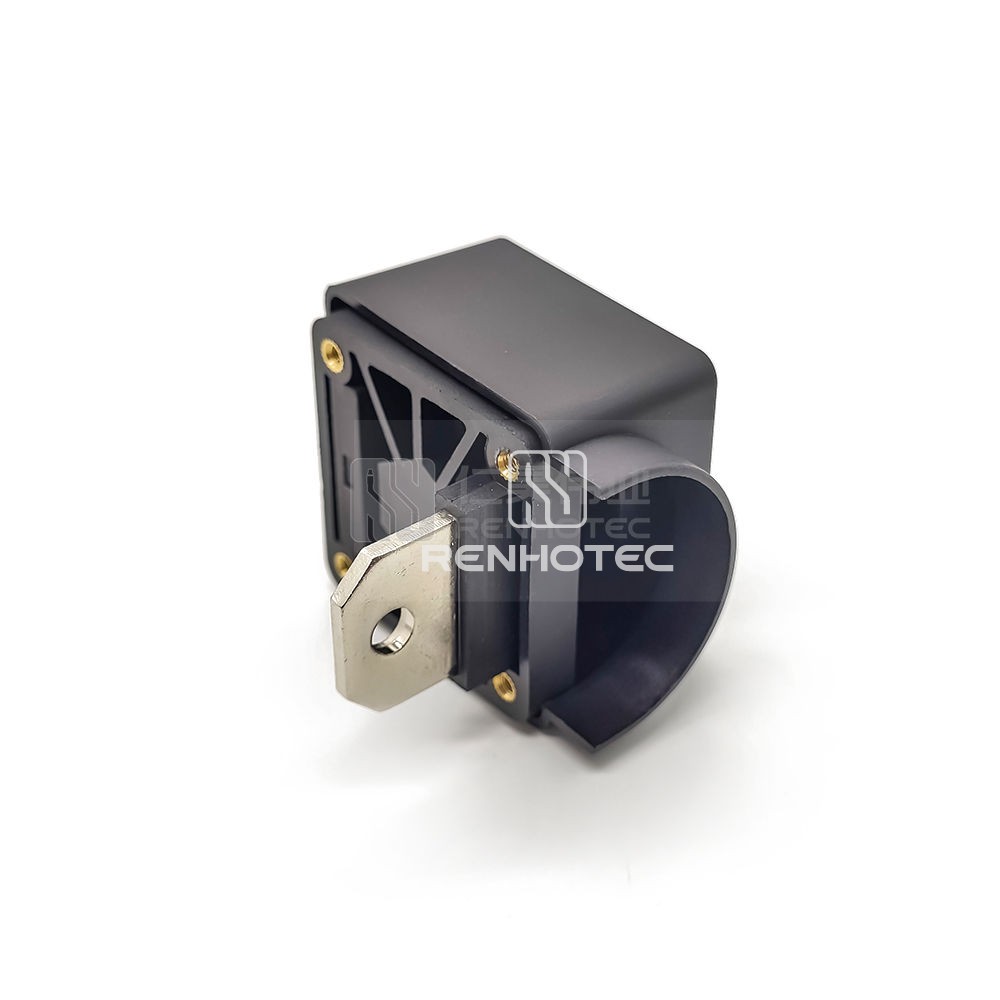

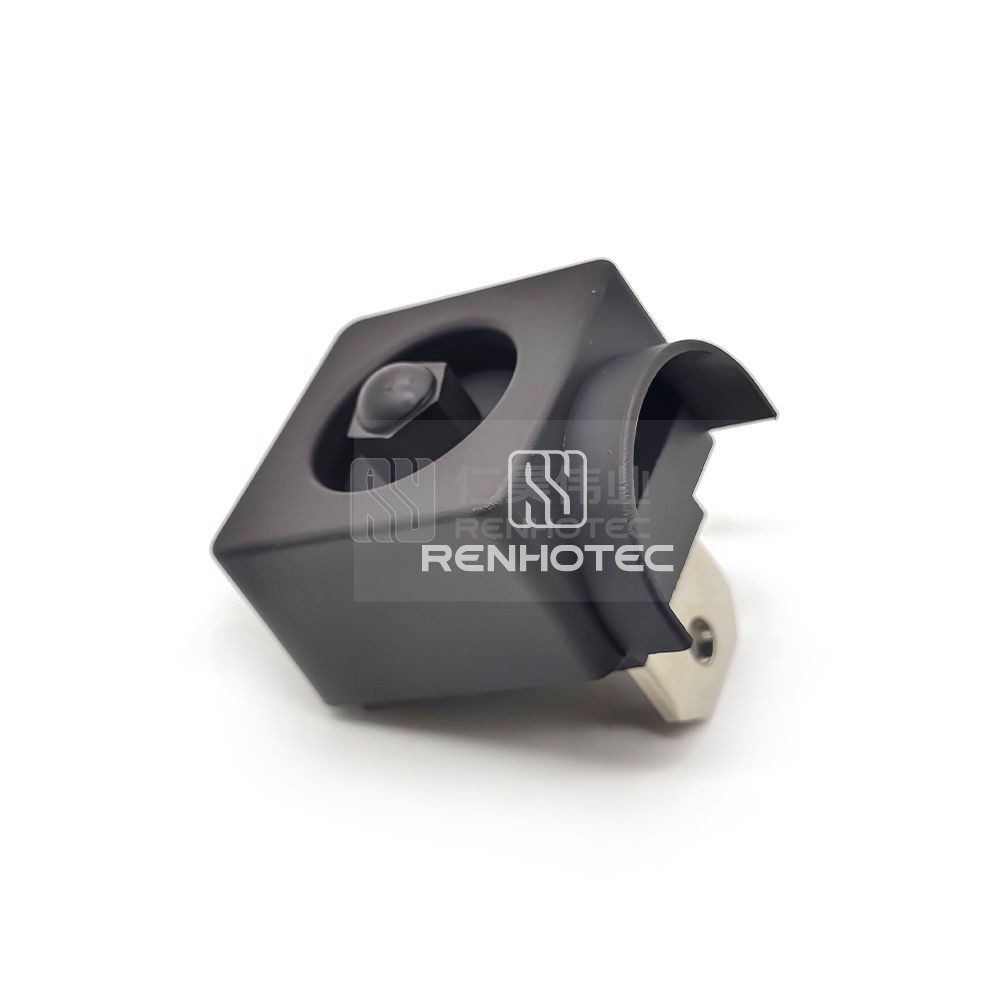

These Feed Through Junction Blocks with a 150A rating and Outer Screw(M8) are ideal for secure electrical connections. Designed in a sleek black color, perfect for your wiring needs. Suitable for various applications requiring high current capacity and reliable performance.
General
Body Style | Square |
Contact Termination | Busbar/Screw |
Color | Black |
Mechanical
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical
Rated Voltage | 600V |
Rated Current | 150A |
Material
Contact Material | Brass |
Contact Finish | Nickel |
Insulating Material | PBT |
Environmental
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
