Products > Terminal Blocks > Feed Through Junction Blocks 200A Outer Screw(M8) Red

IF-FM8-56-4M-R

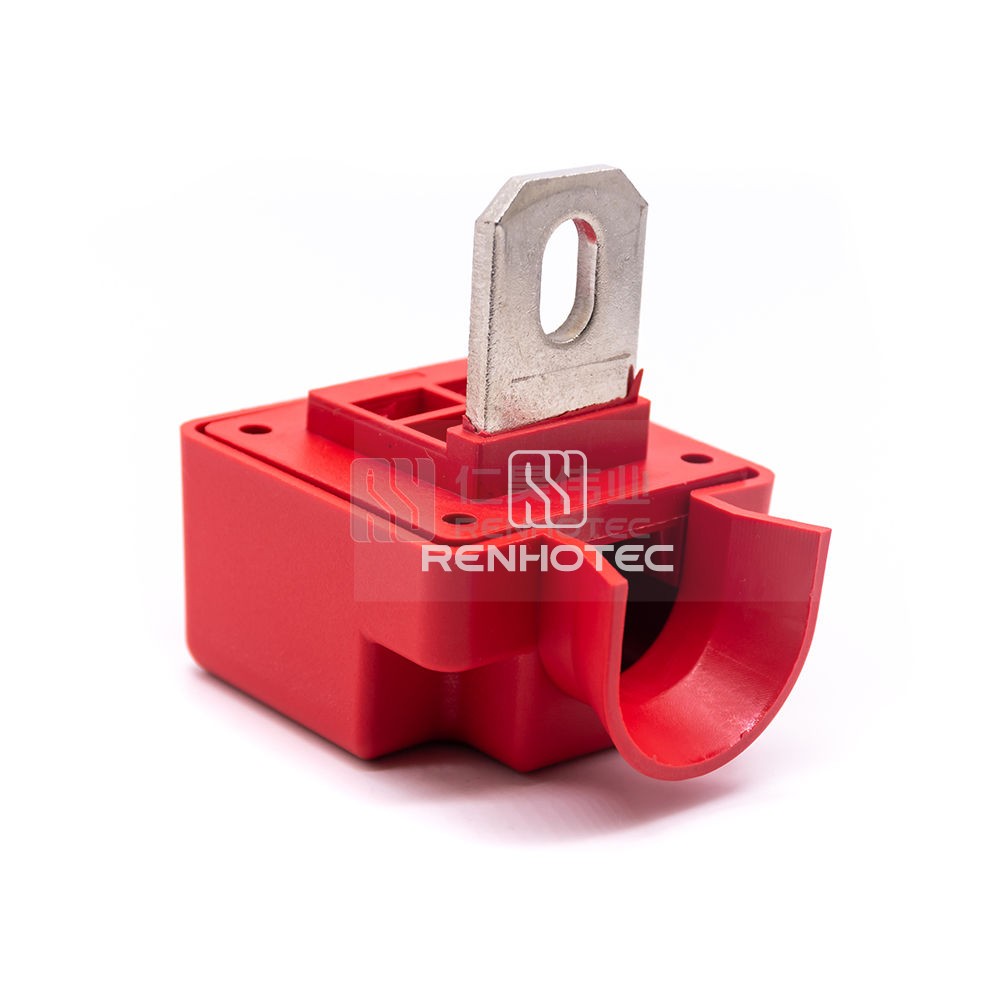

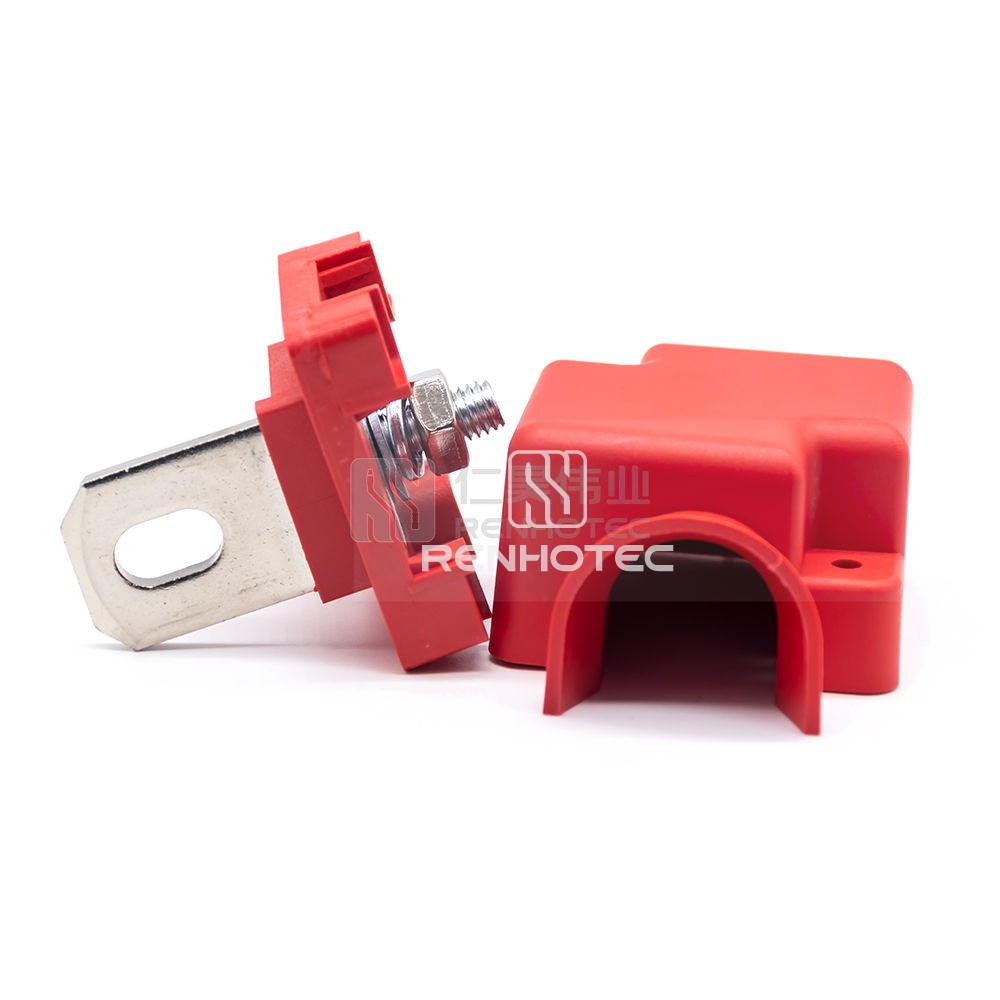

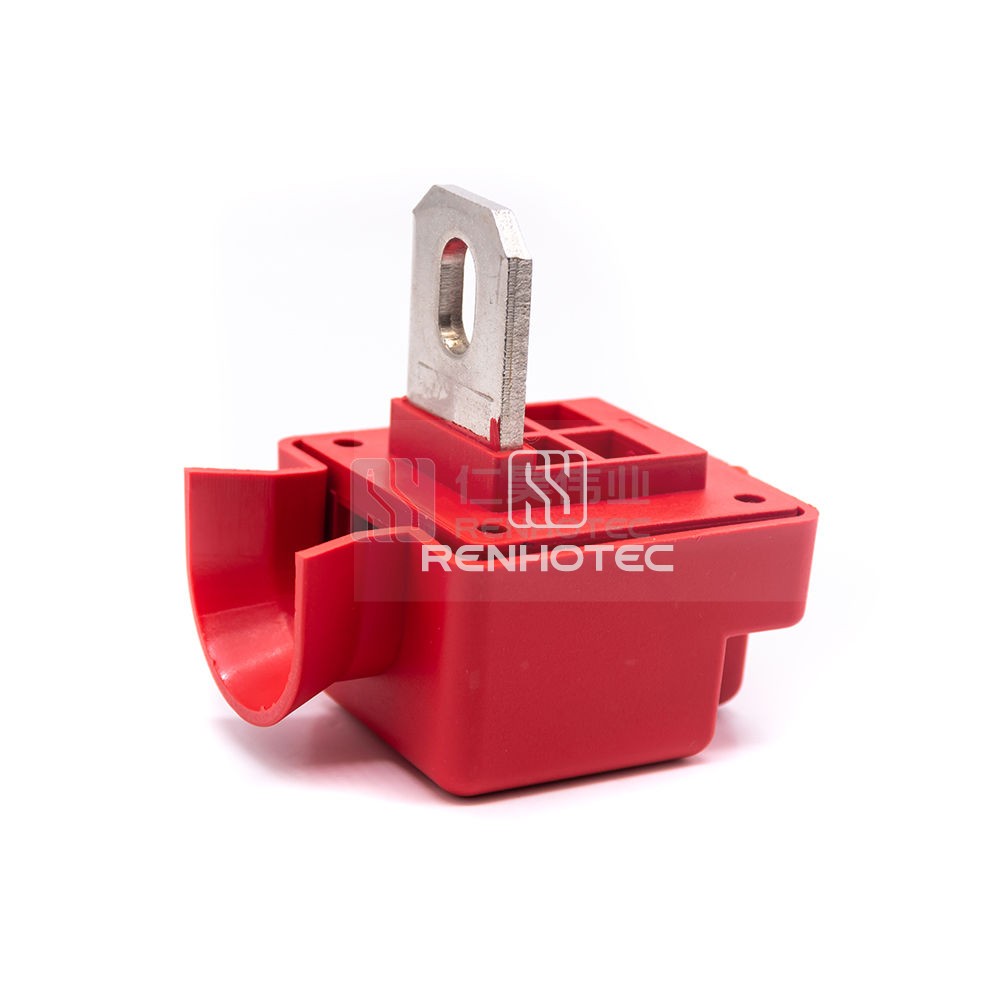

Feed Through Junction Blocks 200A Outer Screw(M8) Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    These 200A feed through junction blocks are designed with an outer screw connection (M8) in a vibrant red color. Ideal for secure electrical connections in various applications, they offer high amperage capacity and reliable performance.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Body StyleSquare
    Contact TerminationBusbar/Screw
    ColorRed

    Mechanical

    Termination ThreadM8
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Electrical

    Rated Voltage600V
    Rated Current200A

    Material

    Contact MaterialBrass
    Contact FinishNickel
    Insulating MaterialPBT

    Environmental

    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
