Products > RF Cable Assembly > Flange Mount SMA Jack to Right Angle MCX Plug RF Cable Assemblies RG174 Cable 50ohm
R02-S01-10107-10

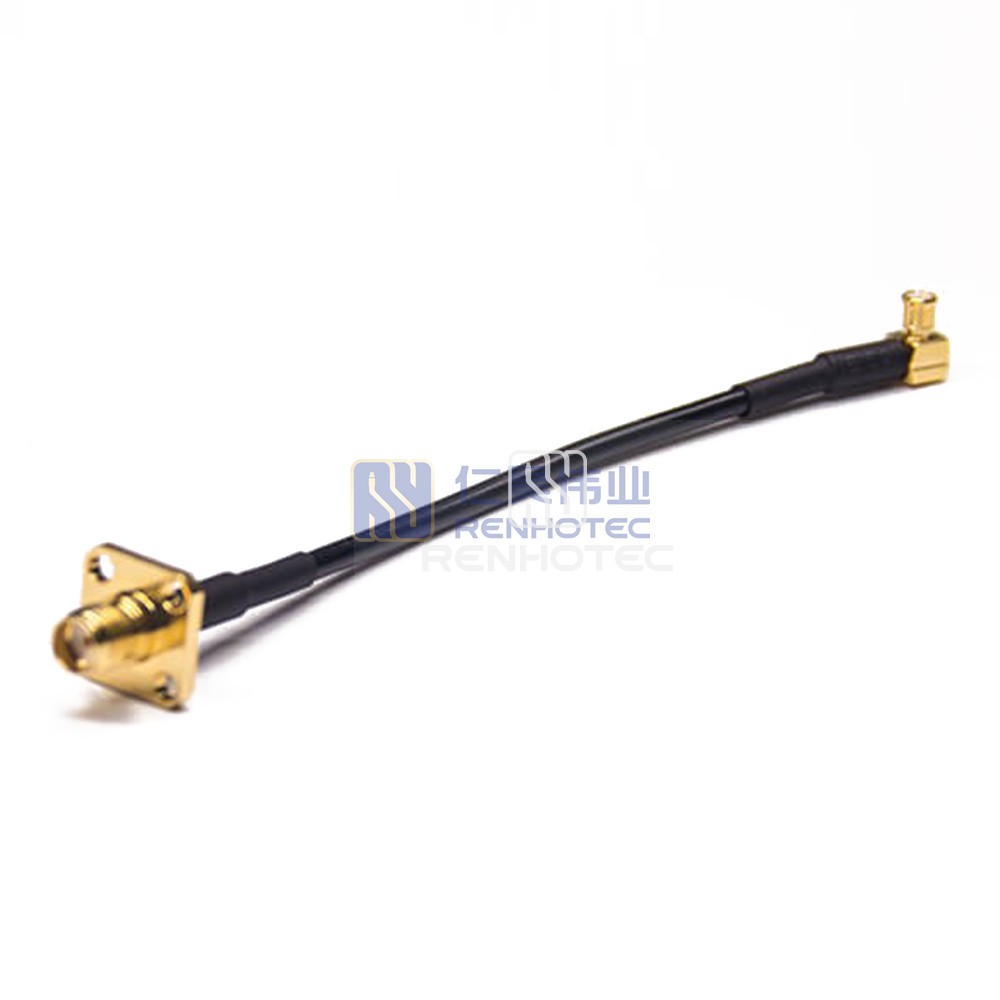

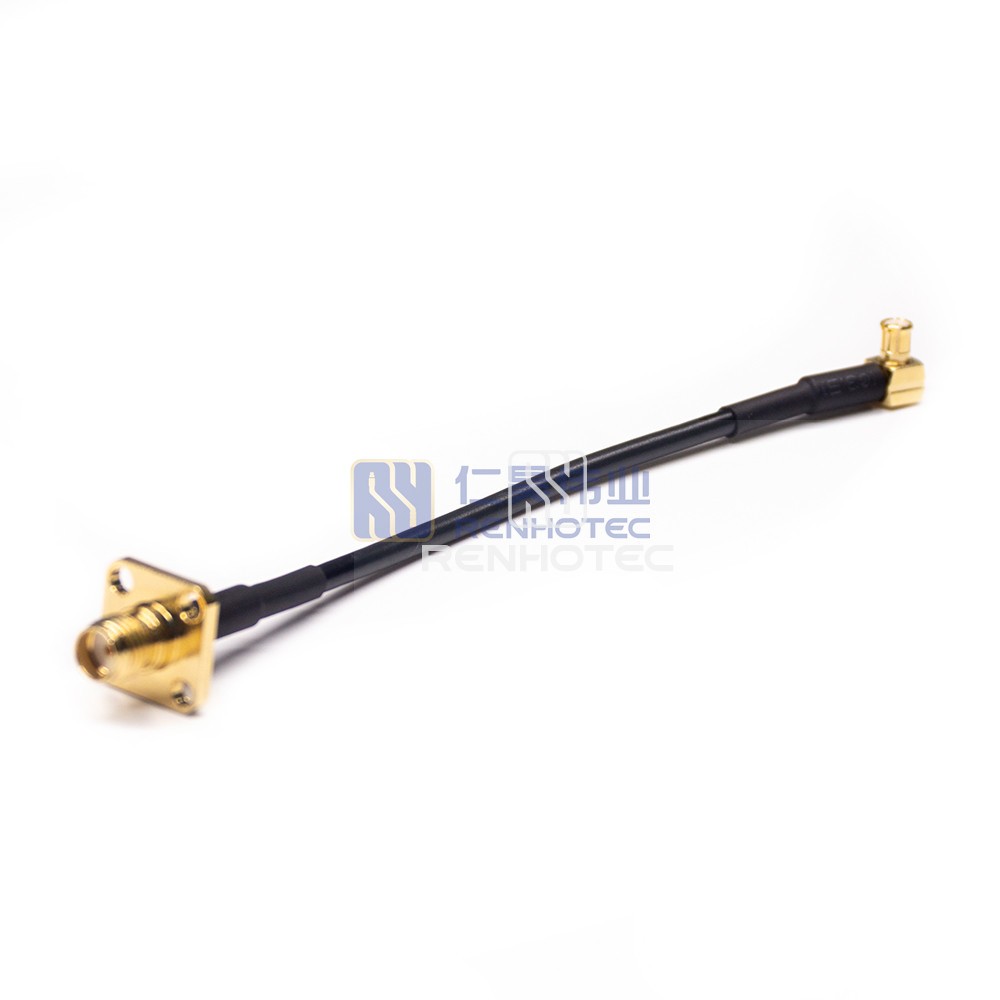

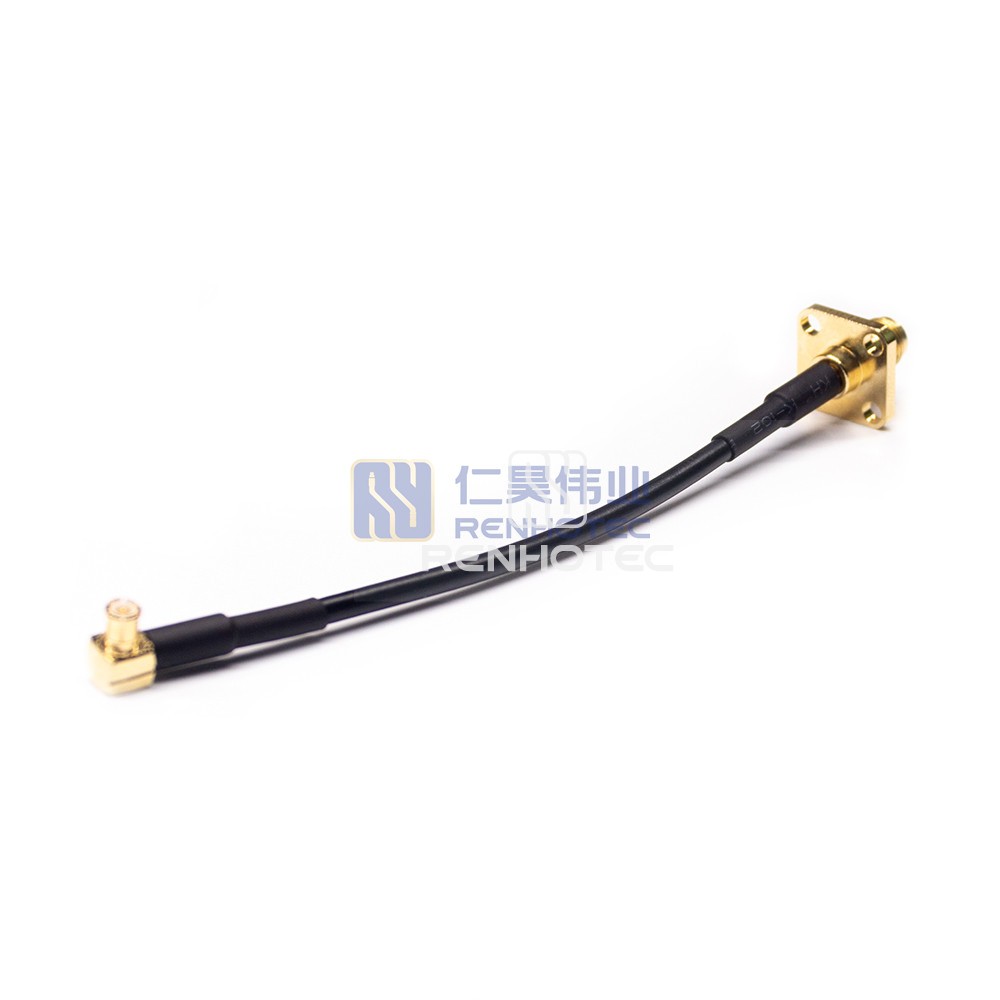

Flange Mount SMA Jack to Right Angle MCX Plug RF Cable Assemblies RG174 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality Flange Mount SMA Jack to Right Angle MCX Plug RF Cable Assemblies featuring RG174 Cable with 50ohm impedance.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to MCX |

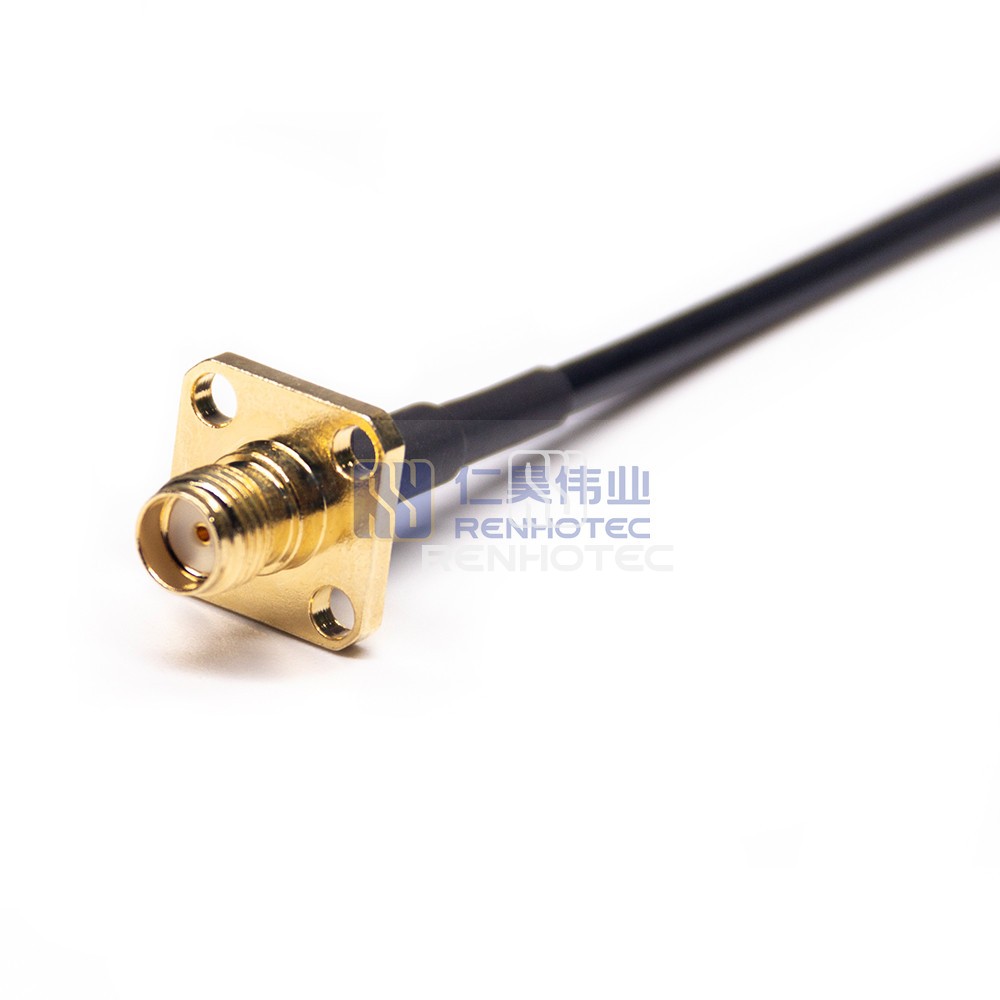

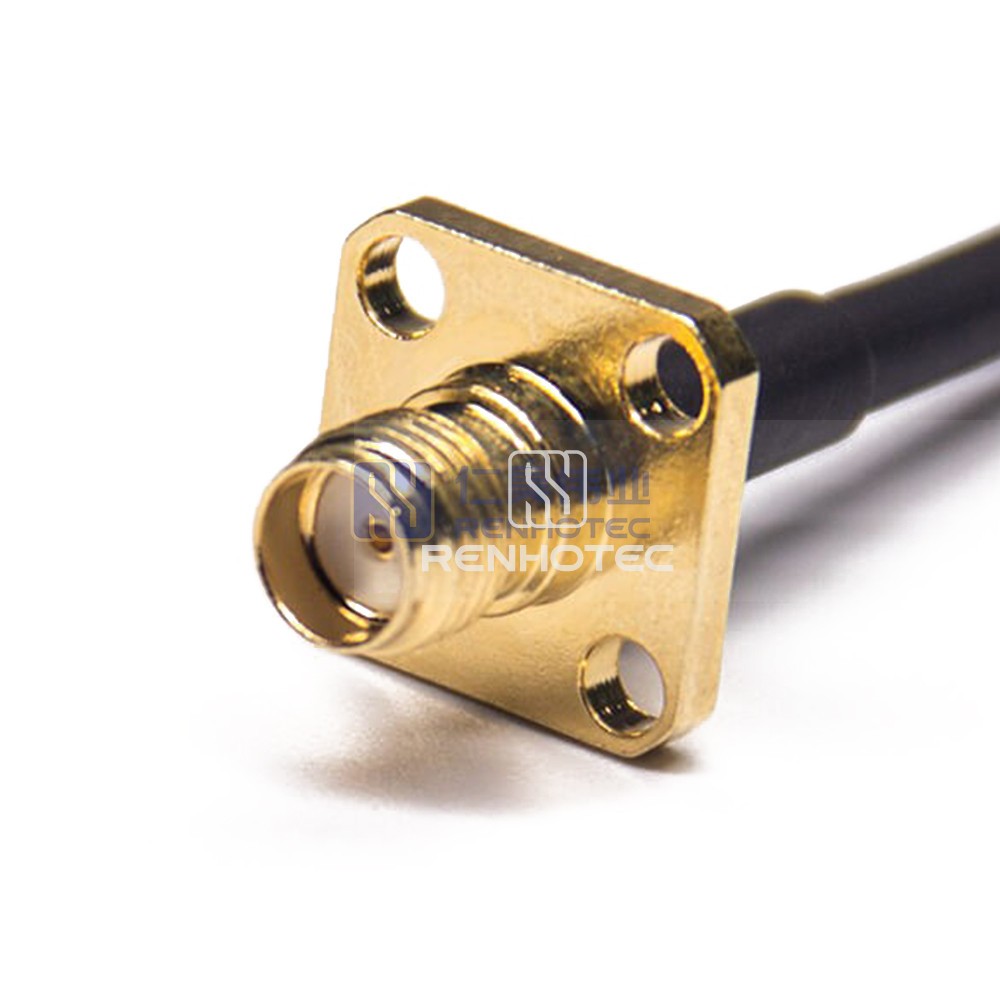

| 1st Connector Series | SMA Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |

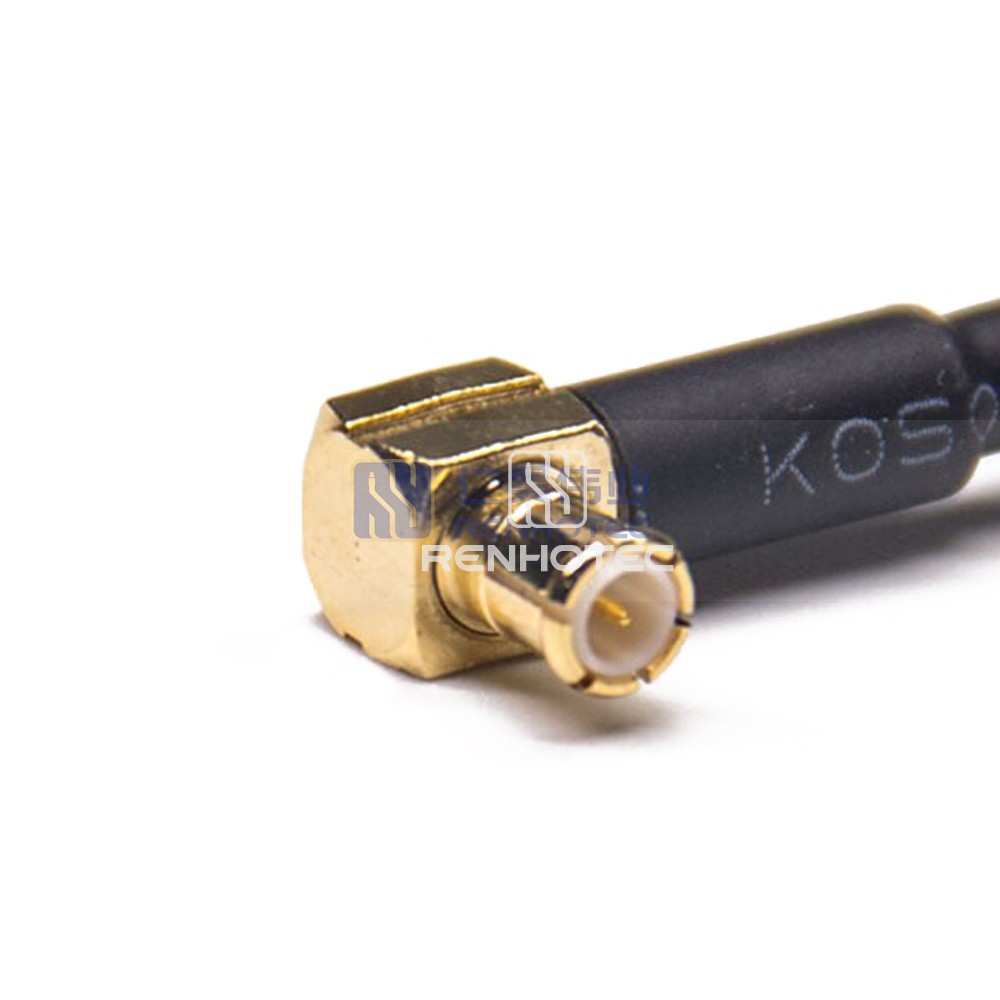

| 2nd Connector Series | MCX Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
