Products > Push-Pull Connector > K Series Push Pull Self-locking Connector Socket Female Straight EGG 0K 303 CLL Back Mount

EGG.0K.303.CLL

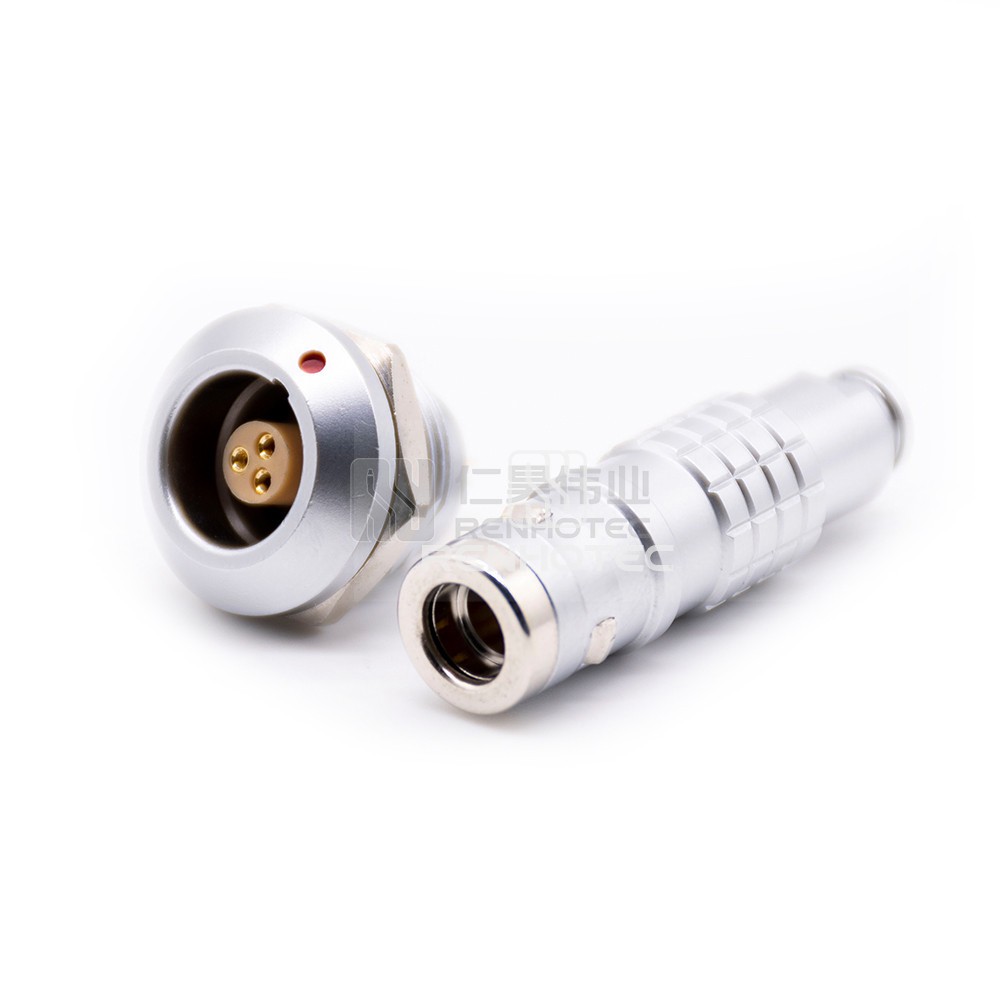

K Series Push Pull Self-locking Connector Socket Female Straight EGG 0K 303 CLL Back Mount

Buy the K Series Push Pull Self-locking Connector Socket Female Straight EGG 0K 303 CLL Back Mount Connector Socket Female for secure and reliable connections. Compatible with various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened
    Contact TerminationSolder

    Shell

    Shell SizeM9

    Mechanical

    Wire Gauge or Range28-20AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishGold
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current8A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
