Products > Push-Pull Connector > K Series Push Pull Self-locking Connector Socket Female Straight EGG 1K 305 CLL Back Mount

EGG.1K.305.CLL

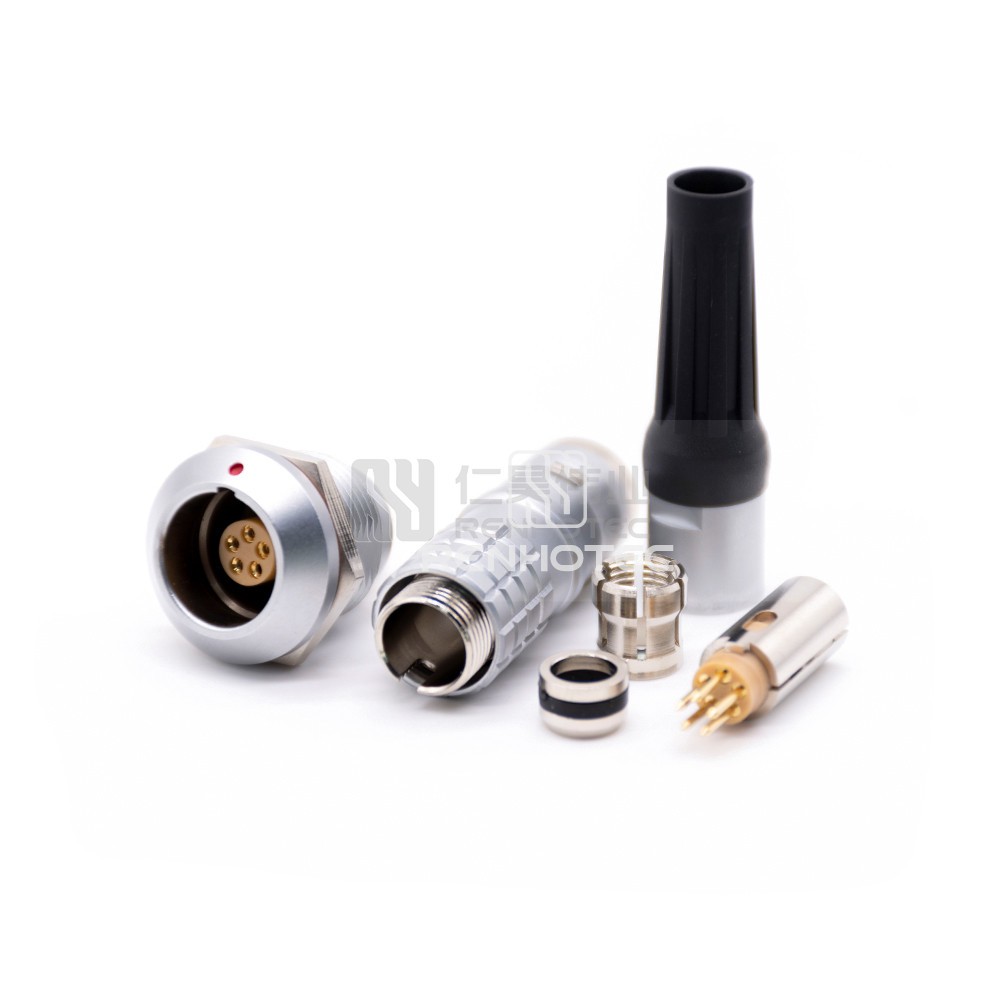

K Series Push Pull Self-locking Connector Socket Female Straight EGG 1K 305 CLL Back Mount

High-quality K Series Push Pull Self-locking Connector Socket Female Straight with EGG 1K 305 CLL Back Mount. Ensures secure and stable connections for your electronic devices. SKU: EGG.1K.305.CLL.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeSocket
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions5
    Fastening TypeSnap on
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Rear Fastened
    Contact TerminationSolder

    Shell

    Shell SizeM12

    Mechanical

    Wire Gauge or Range30-22AWG

    Material

    Shell MaterialCopper Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel
    Insulating MaterialPPS

    Electrical

    ShieldingShielded
    Rated Current9A

    Environmental

    Operating Temperature-55°C ~ + 150°C
    RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
