Products > Push-Pull Connector > K Series Push Pull Self-locking Connector Socket Female Straight EGG 1K 310 CLL Back Mount
product image

EGG.1K.310.CLL

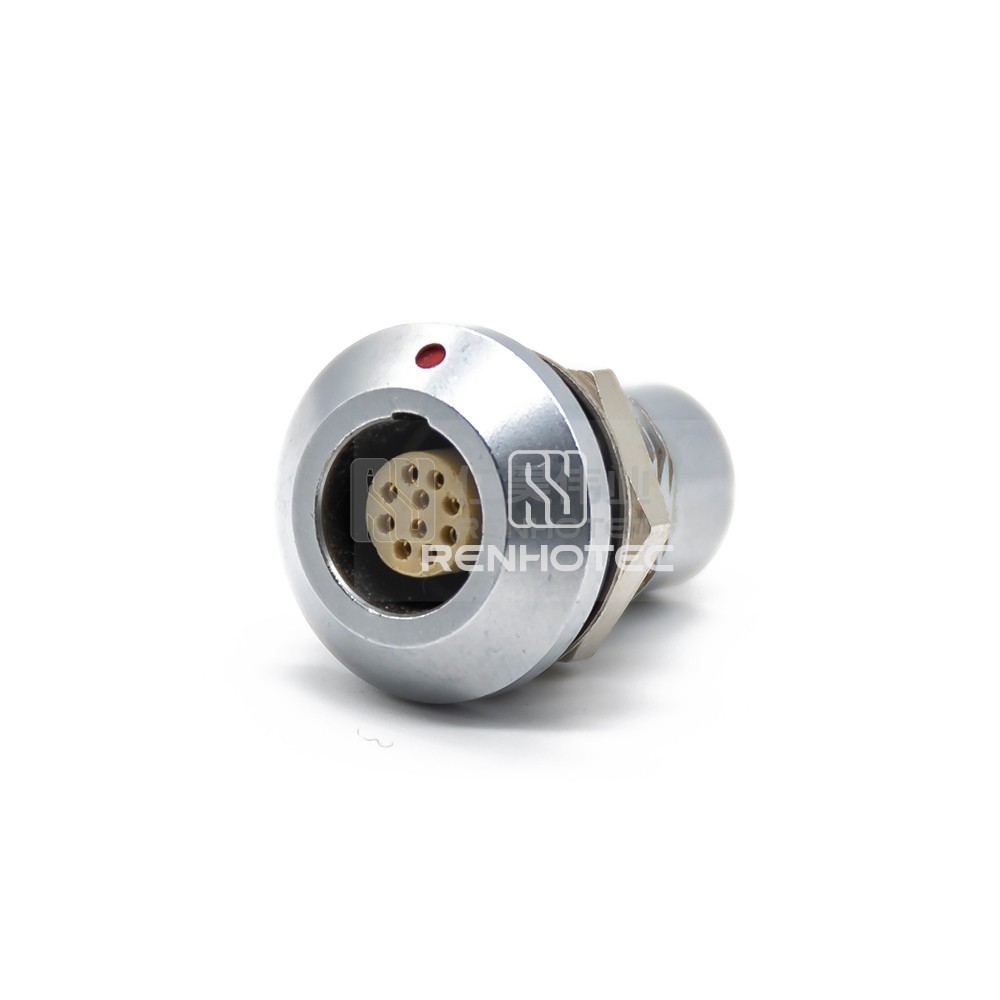

K Series Push Pull Self-locking Connector Socket Female Straight EGG 1K 310 CLL Back Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality K Series Push Pull Self-locking Connector Socket Female Straight EGG 1K 310 CLL Back Mount. Browse now for reliable and durable connectors at a great price.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeSocket
OrientationStraight
Contact TypeFemale Pin
Number of Positions10
Contact TerminationSolder
Material
Shell MaterialCopper Alloy
Contact MaterialCopper Alloy
Contact FinishGold
Insulating MaterialPPS
Mechanical
Fastening TypeSnap on
Mounting TypePanel Mount
Mounting FeatureBulkhead - Rear Fastened
Wire Gauge or Range34-28AWG
Environmental
Operating Temperature-55°C ~ + 150°C
Shell
Shell SizeM12
Electrical
ShieldingShielded
Rated Current2.5A

Catelog

RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
