M8A-8PF-BN-R001

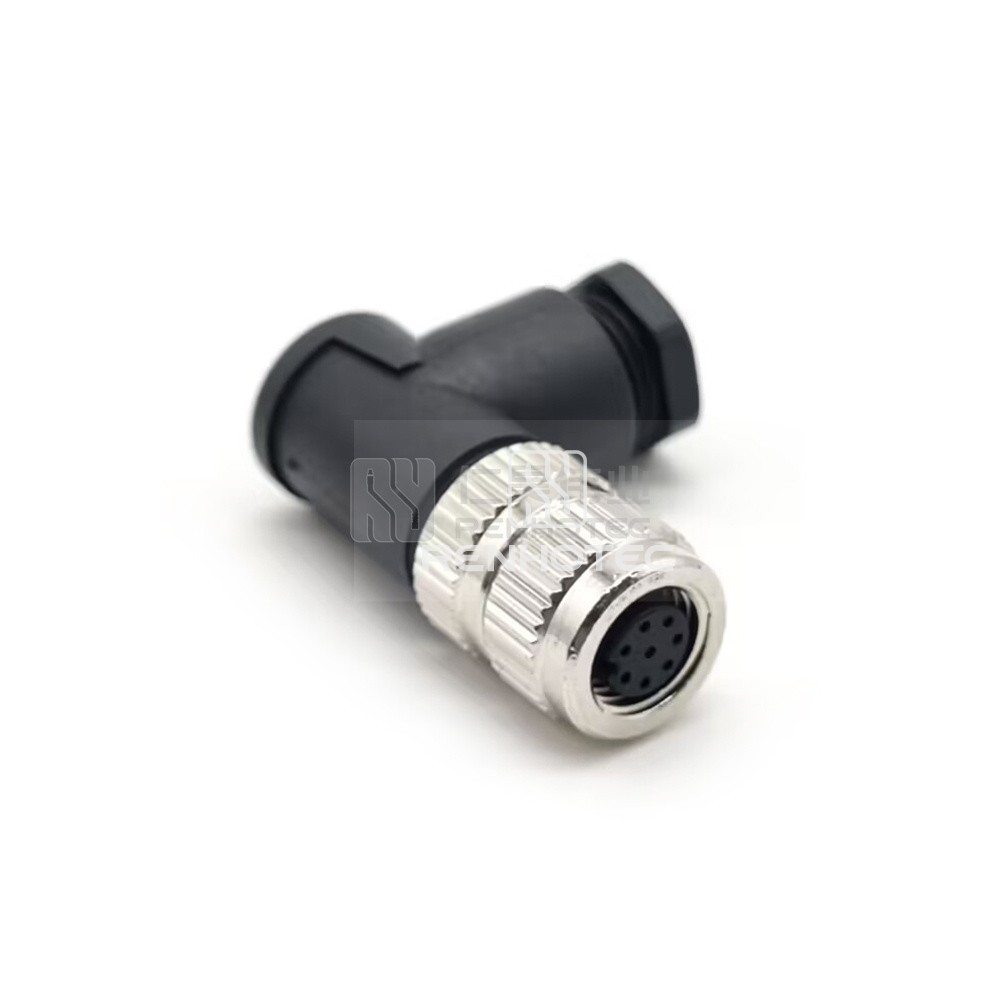

M8 Female Field Wireable Plug 8 Pin A Code Unshielded Right Angle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This M8 female field wireable plug features 8 pins in A code, designed for unshielded connections. The right-angle design with solder cups ensures secure and reliable connections for your application.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions8
    KeyA
    Contact TerminationSolder Cup

    Shell

    Shell SizeM8

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialPA66+GF
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current3A
    Rated Voltage30V
