M8A-8SF-RN-R001

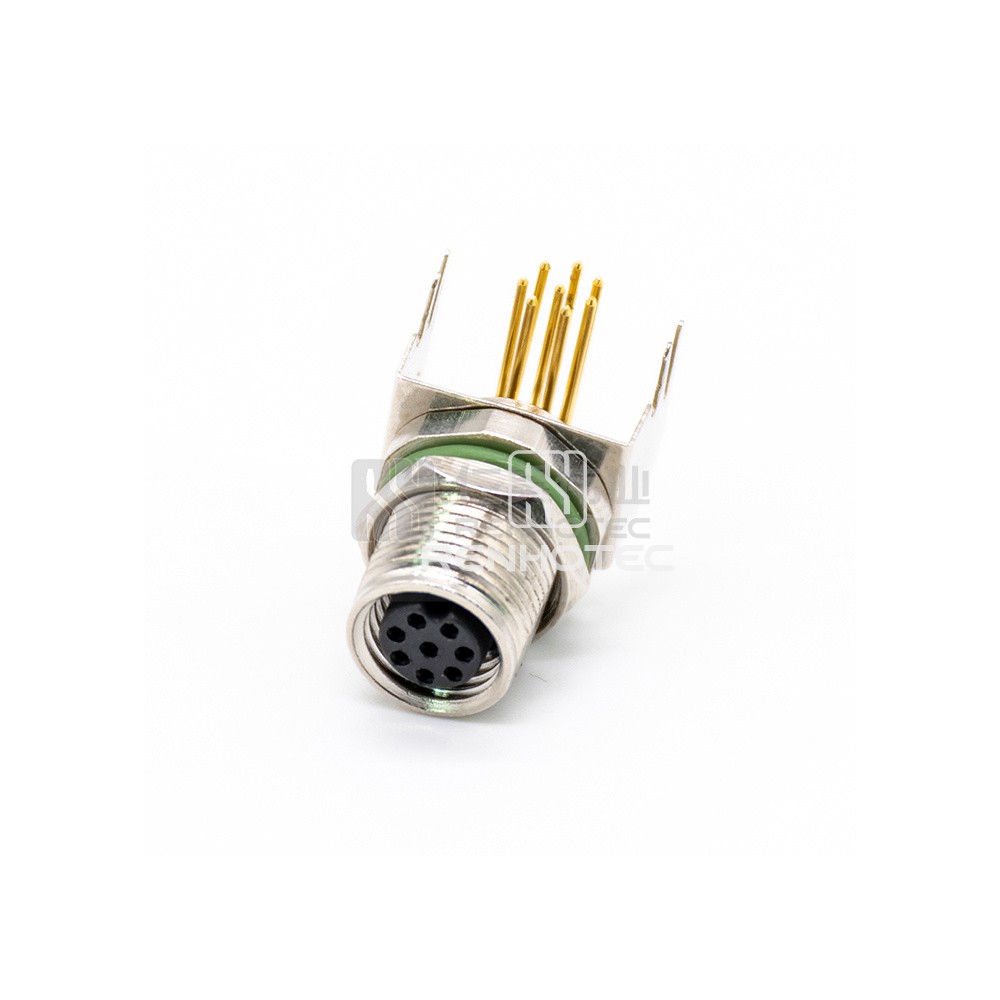

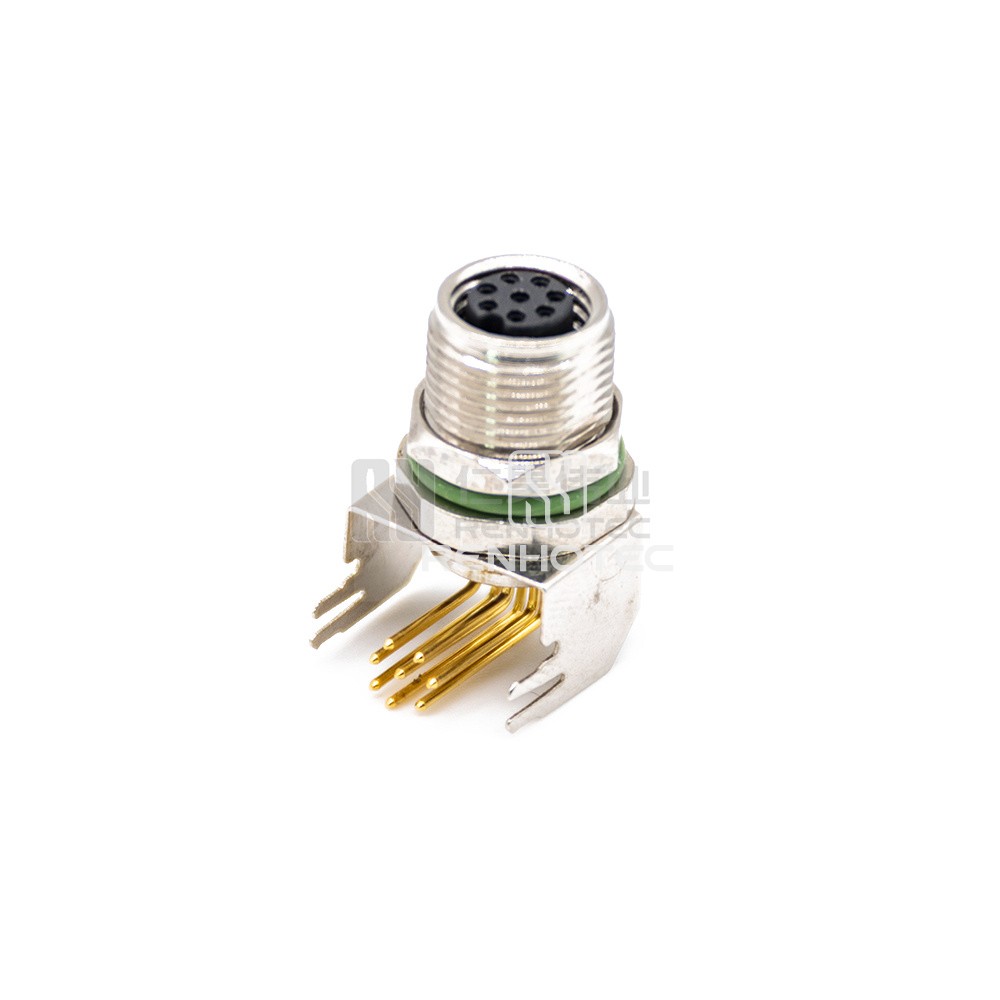

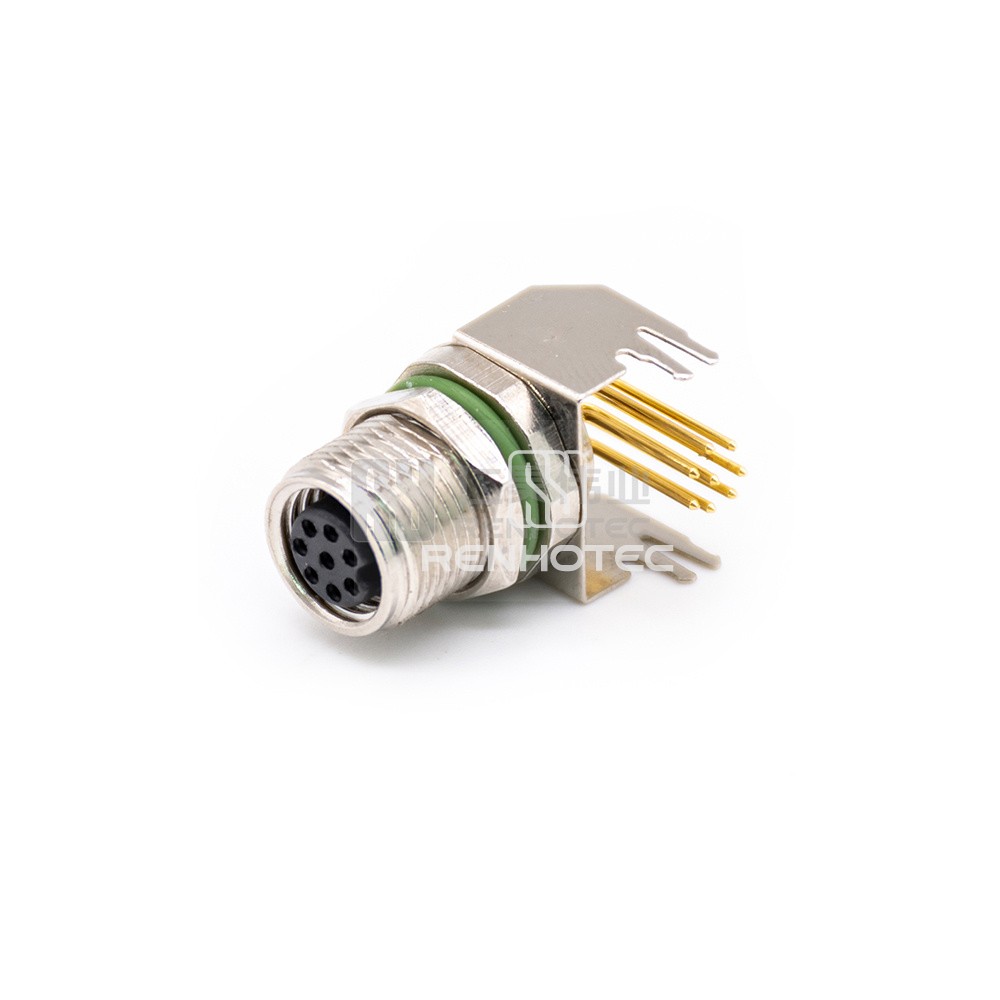

M8 Female Panel Mount Receptacle 8 Pin A Code Unshielded Right Angle PCB

This M8 female panel mount receptacle features 8 pin A code configuration and is designed as a right angle PCB connector. Get a reliable and unshielded solution for your industrial applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Environmental
    5. Electrical

    General

    Connector TypeReceptacle
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions8
    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead
    KeyA
    Contact TerminationThrough Hole

    Shell

    Shell SizeM8

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current1.5A
    Rated Voltage30V
