Products > Circular Connector > M8 Male Field Wireable Plug 8 Pin A Code Unshielded Right Angle Solder Cup

M8A-8PM-BN-R001

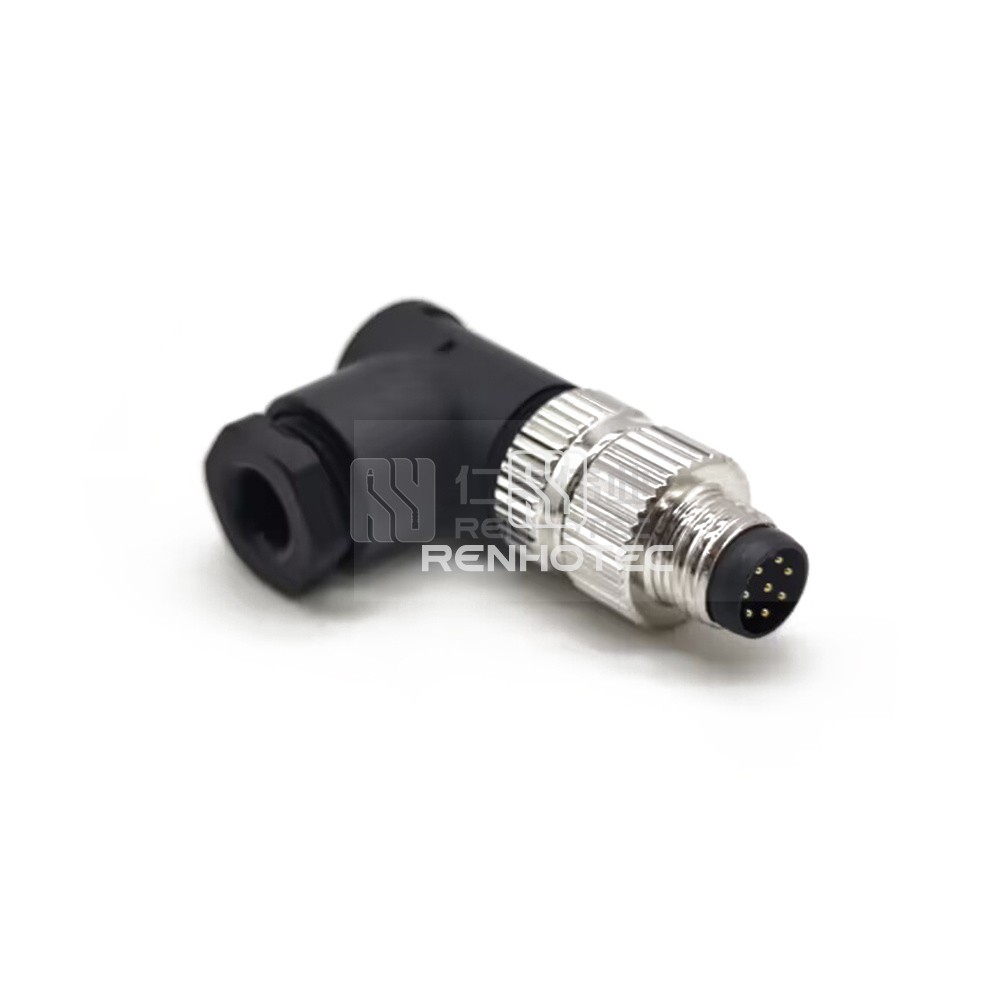

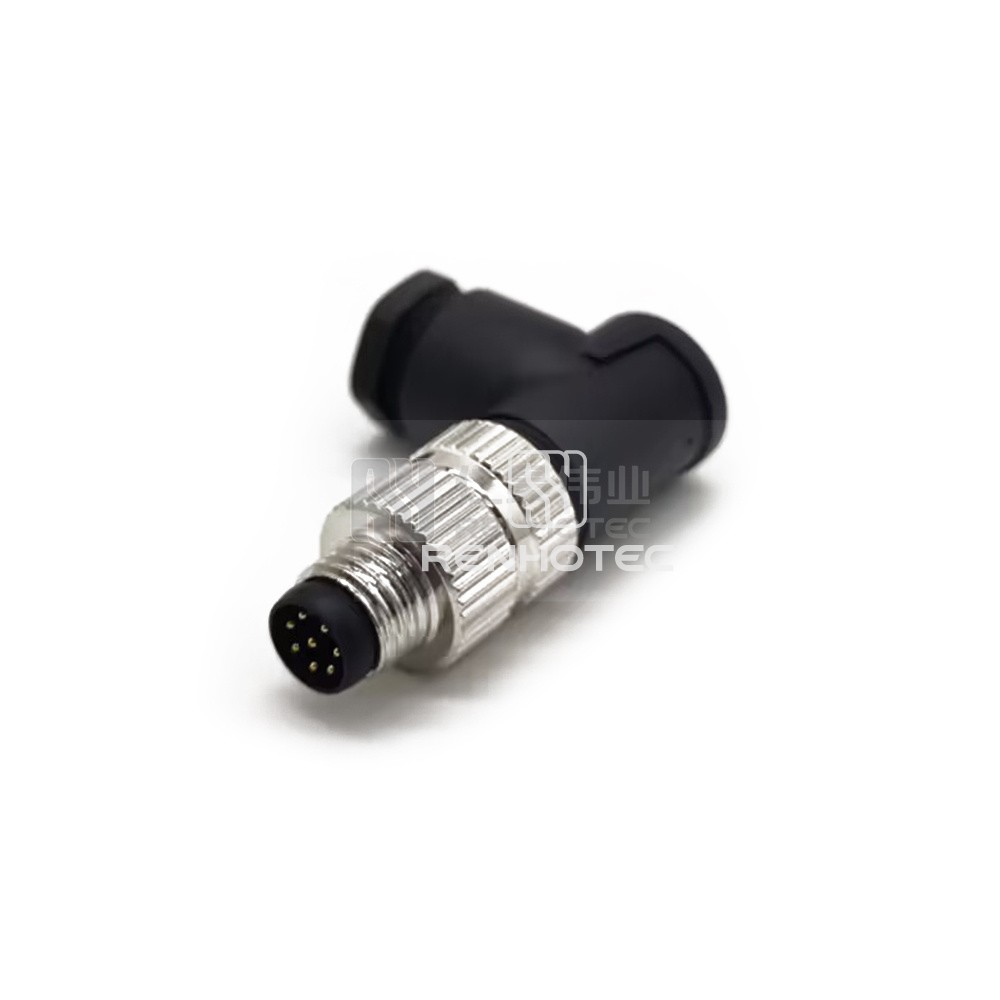

M8 Male Field Wireable Plug 8 Pin A Code Unshielded Right Angle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This M8 male field wireable plug features 8 pins with A code, designed for unshielded connections. The right angle solder cup provides a secure and convenient solution for your wiring needs.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions8
    Contact TerminationSolder Cup

    Shell

    Shell SizeM8

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialPA66+GF
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current3A
    Rated Voltage30V
