M8A-6SM-RN-R001

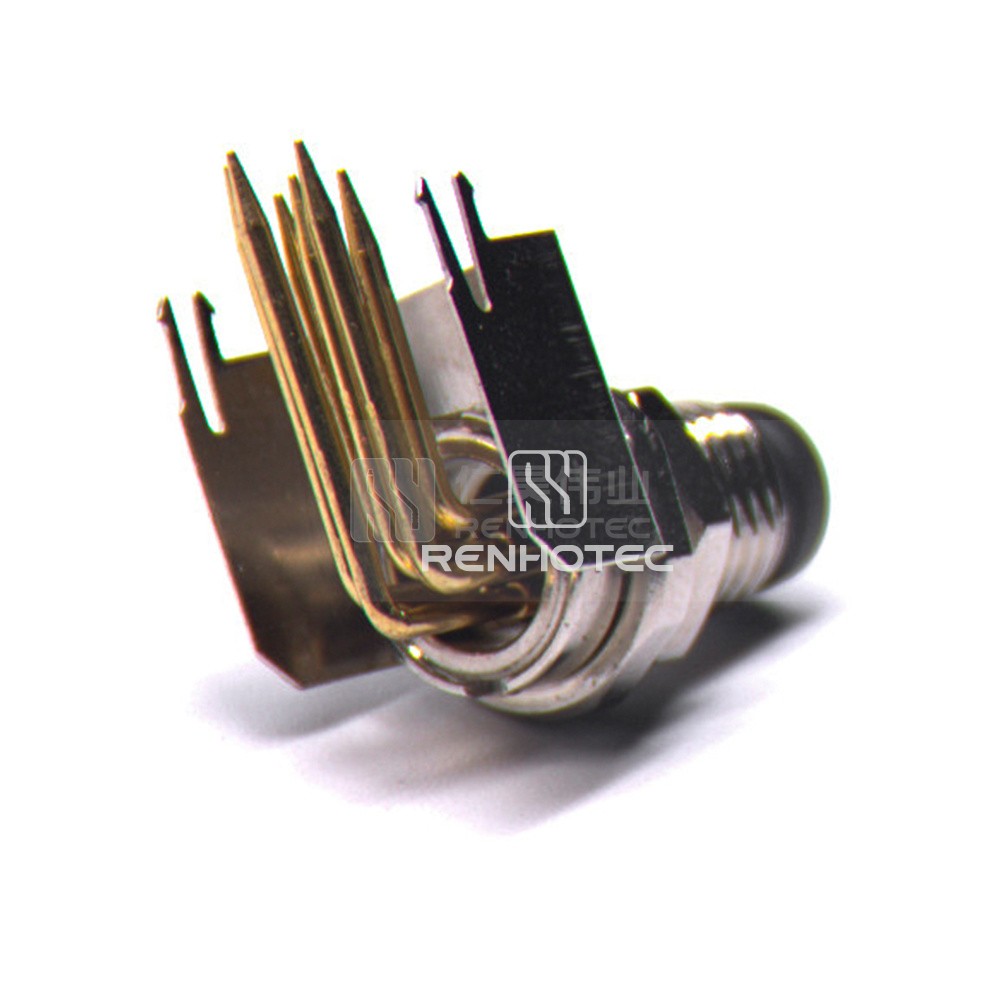

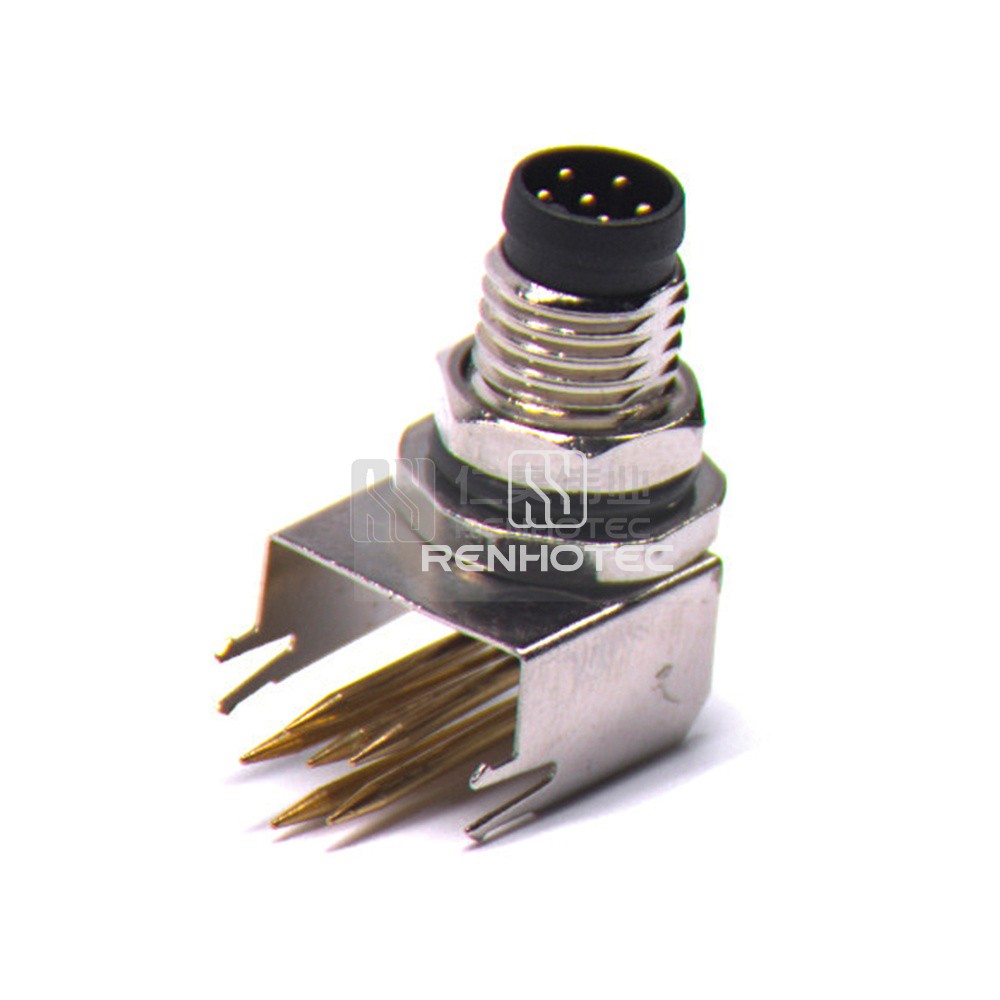

M8 Male Panel Mount Receptacle 6 Pin A Code Unshielded Right Angle PCB

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This M8 male panel mount receptacle features 6 pins, A code design, unshielded construction, and a right angle PCB connection. Ideal for secure and seamless installations in various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions6
    KeyA
    Contact TerminationThrough Hole

    Shell

    Shell SizeM8

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current1.5A
    Rated Voltage30V
