Products > RF Cable Assembly > MCX Female Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax
R02-S02-10018-10
MCX Female Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt

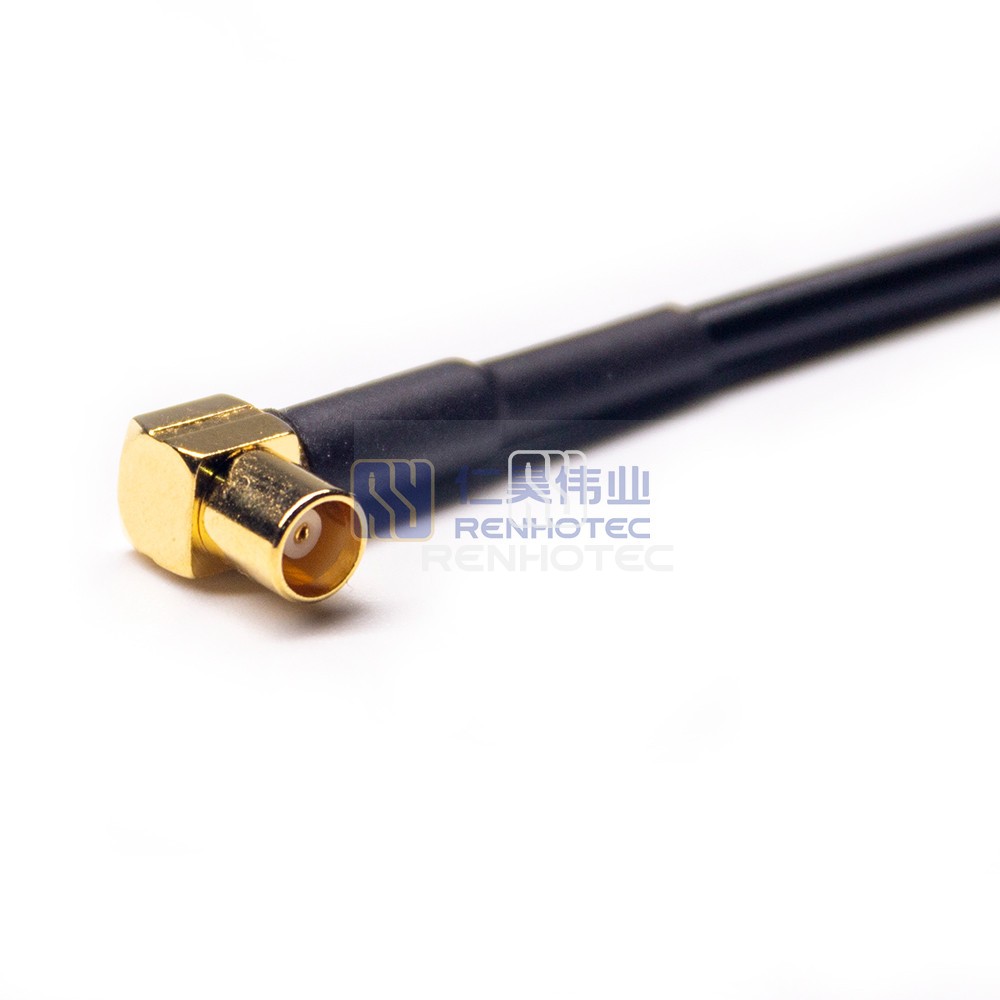

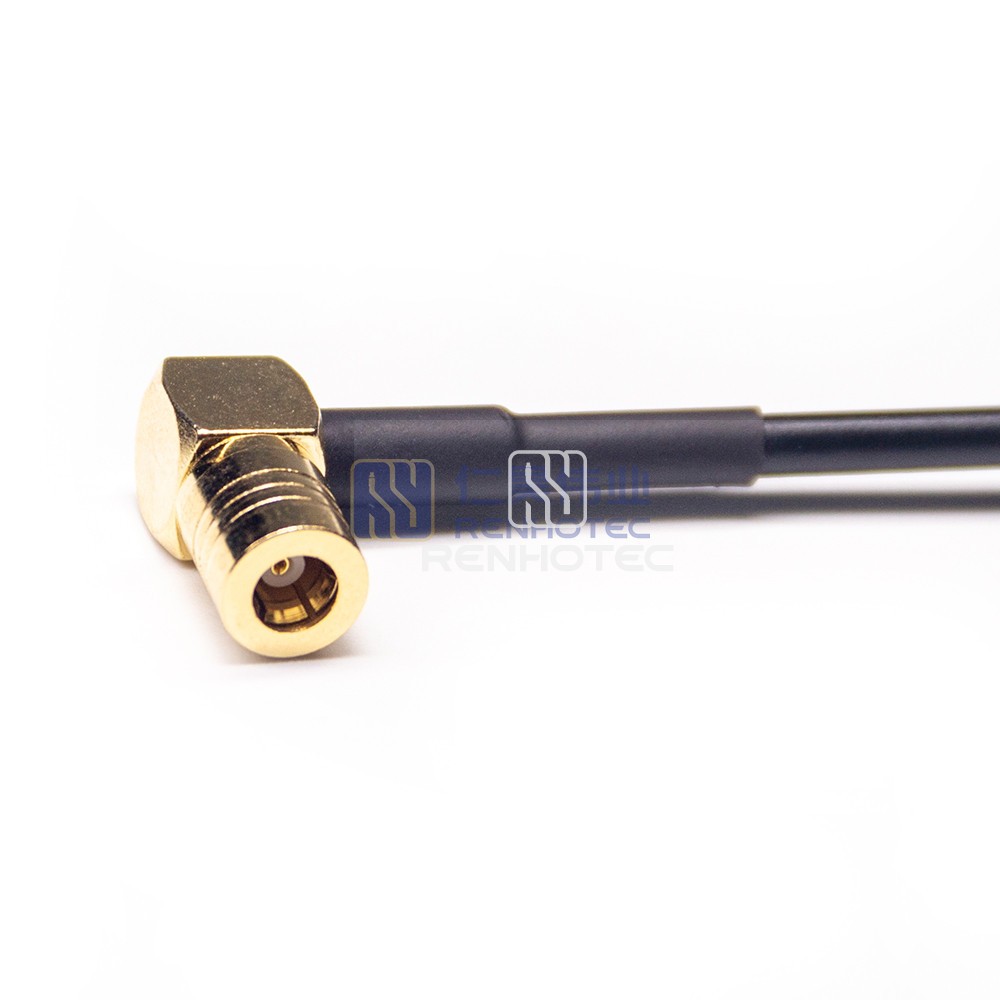

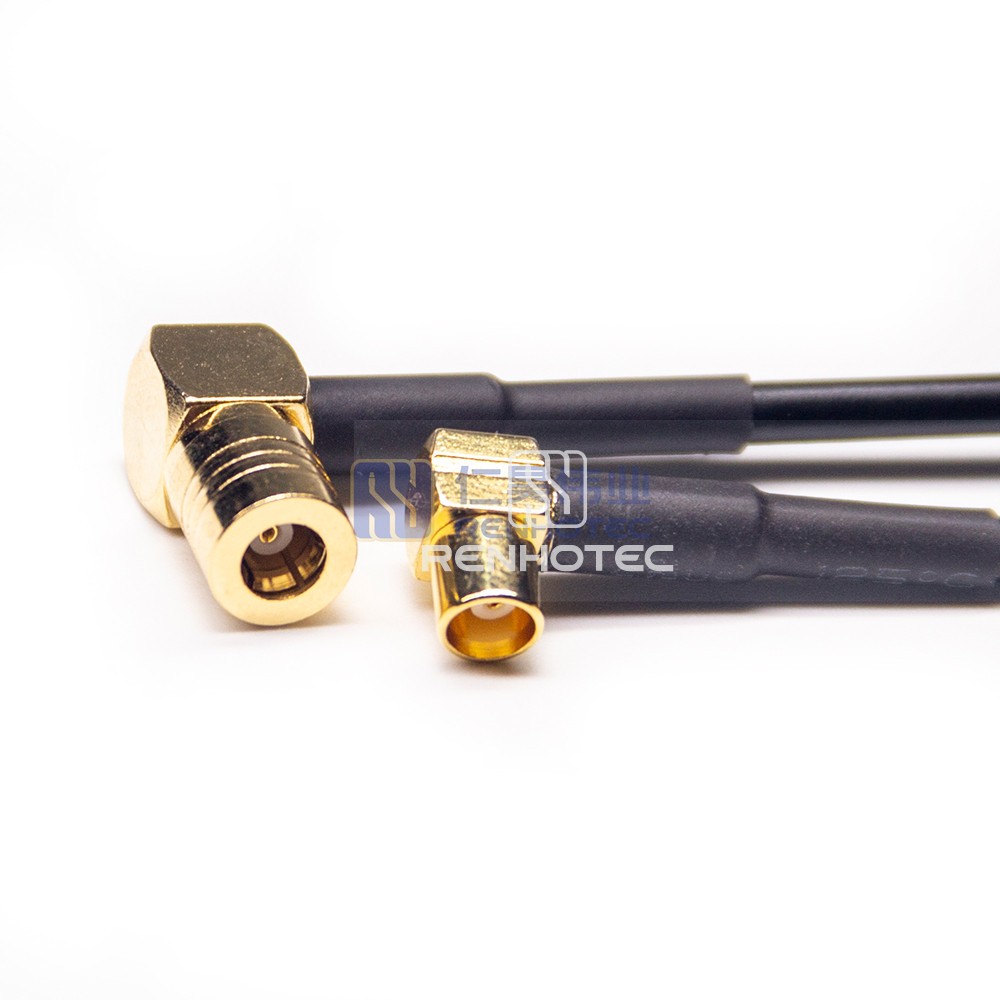

This RF cable assembly features an MCX female right angle connector and an SMB male right angle connector with 50Ohm RG174 coax. Ideal for various RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | MCX to SMB |
| 1st Connector Series | MCX Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | SMB Plug |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
