Products > RF Cable Assembly > MCX Male Right Angle to 1.0/2.3 Male Cable Assembly with 50ohm RG316 Coax
R02-M02-10018-20
MCX Male Right Angle to 1.0/2.3 Male Cable Assembly with 50ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt

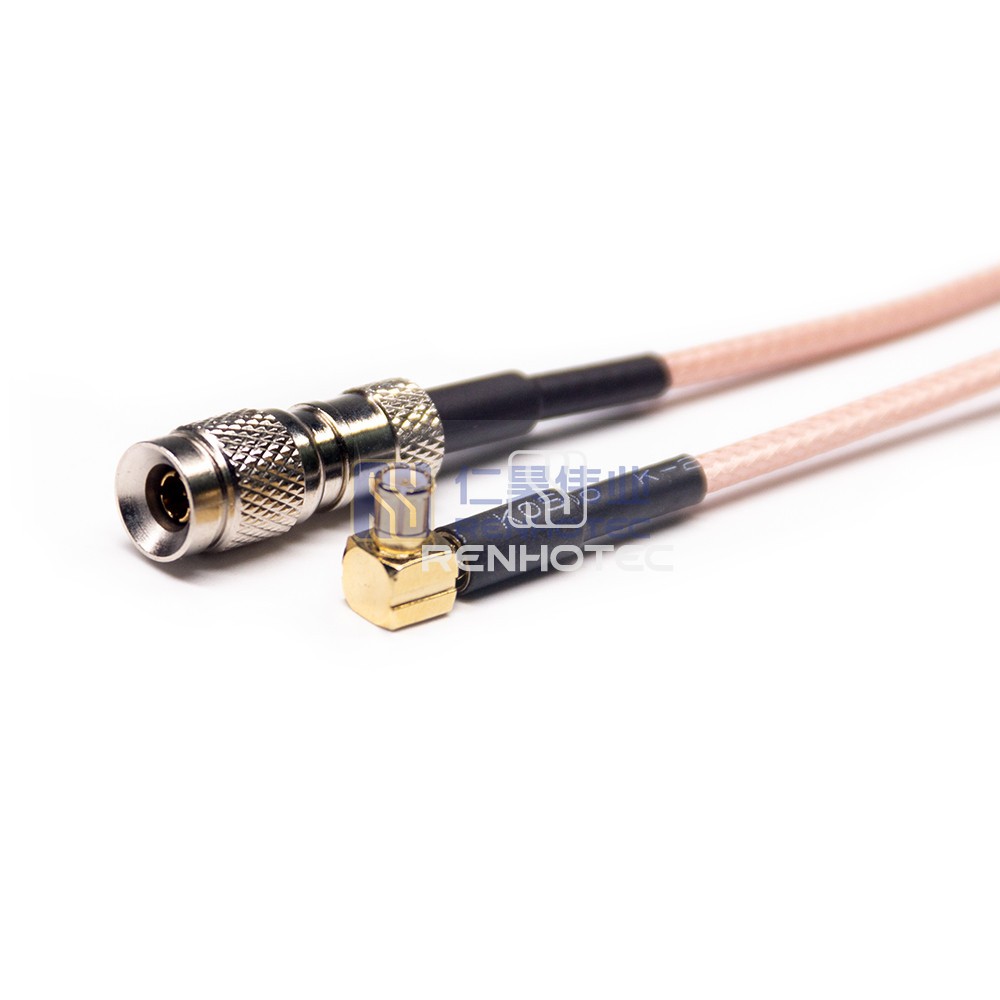

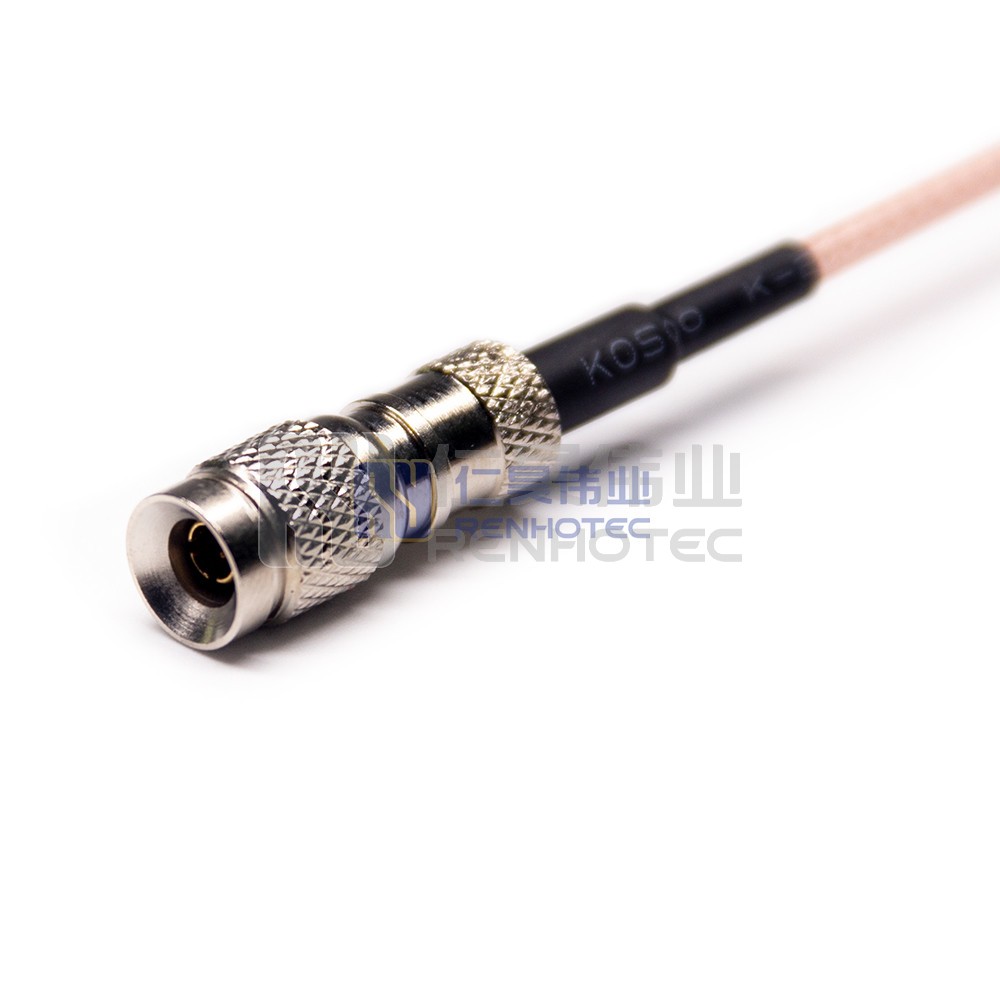

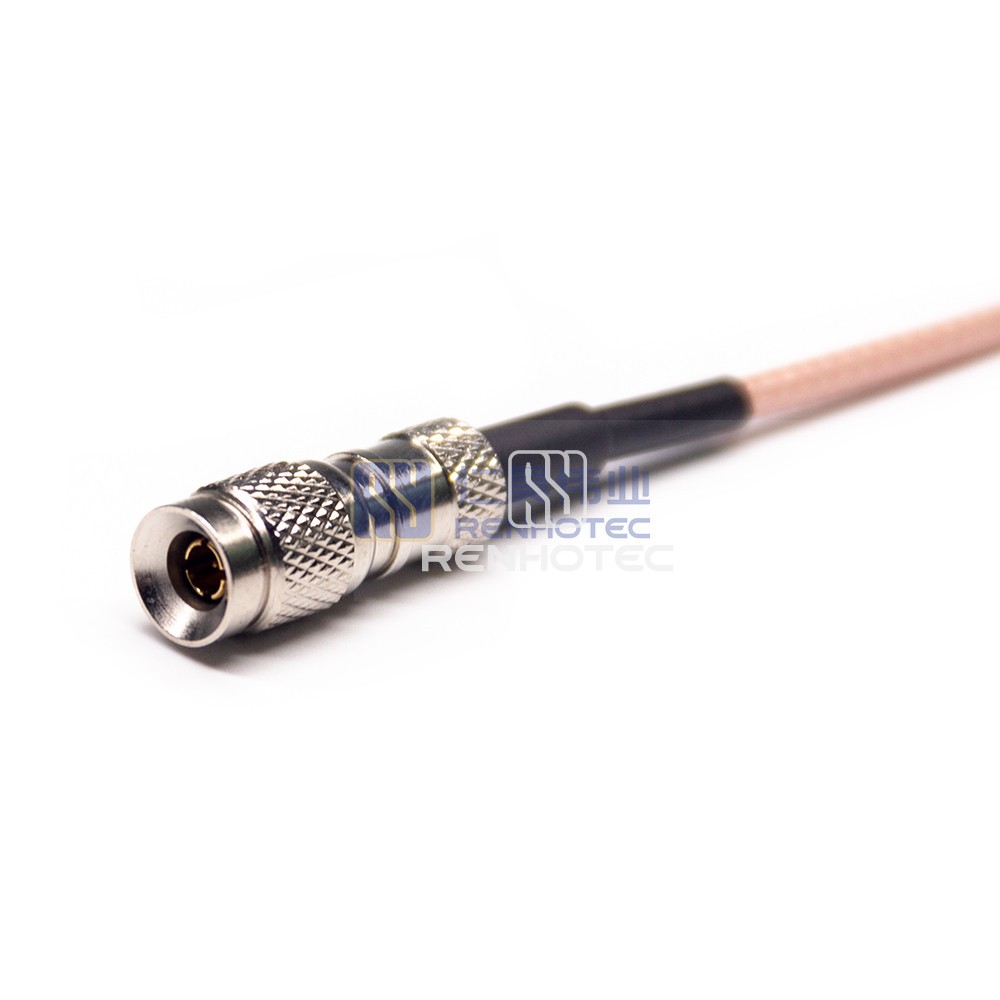

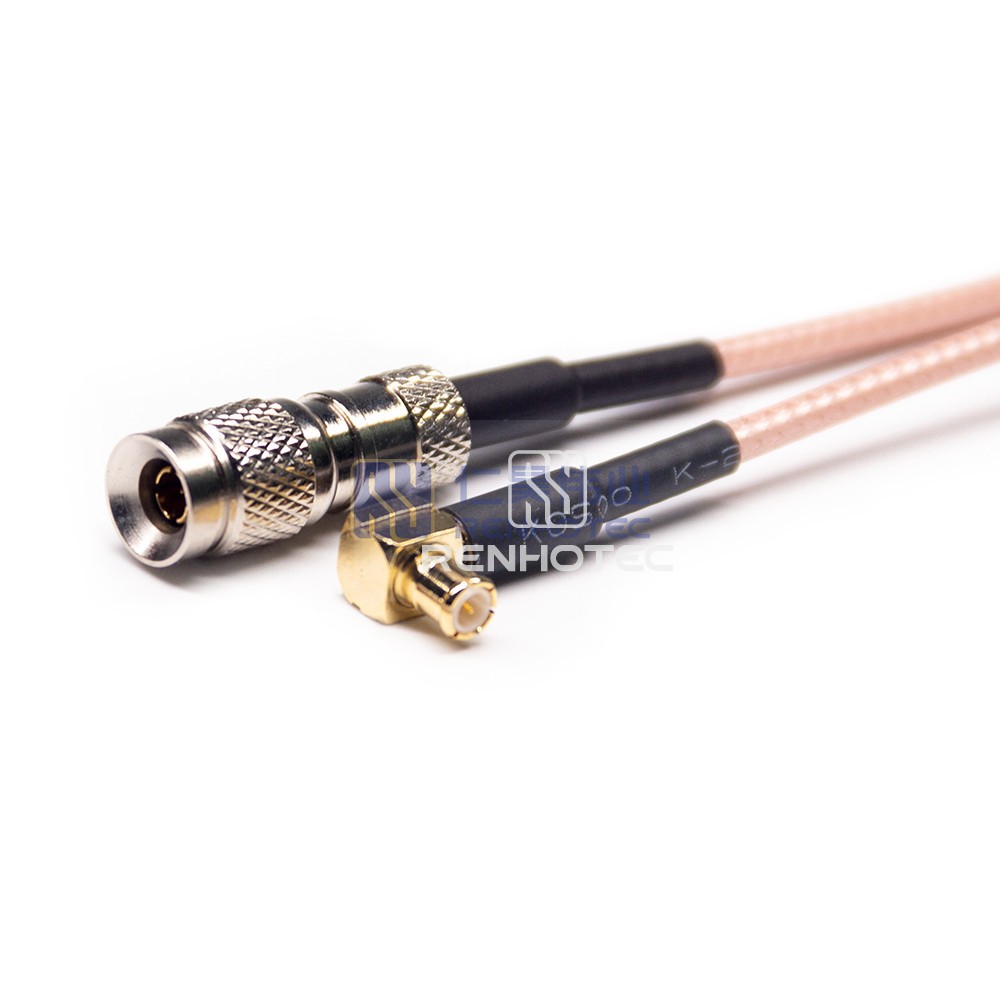

This MCX Male Right Angle to 1.0/2.3 Male Cable Assembly with 50ohm RG316 Coax is a high-quality and reliable solution for your RF signal transmission needs. The cable assembly is designed for optimal performance and durability, making it suitable for various applications in telecommunications, networking, and other industries.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | MCX to 1.0/2.3 |
| 1st Connector Series | MCX Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | 1.0/2.3 Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
