MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax - R02-S02-10010-20
MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax - R02-S02-10010-20

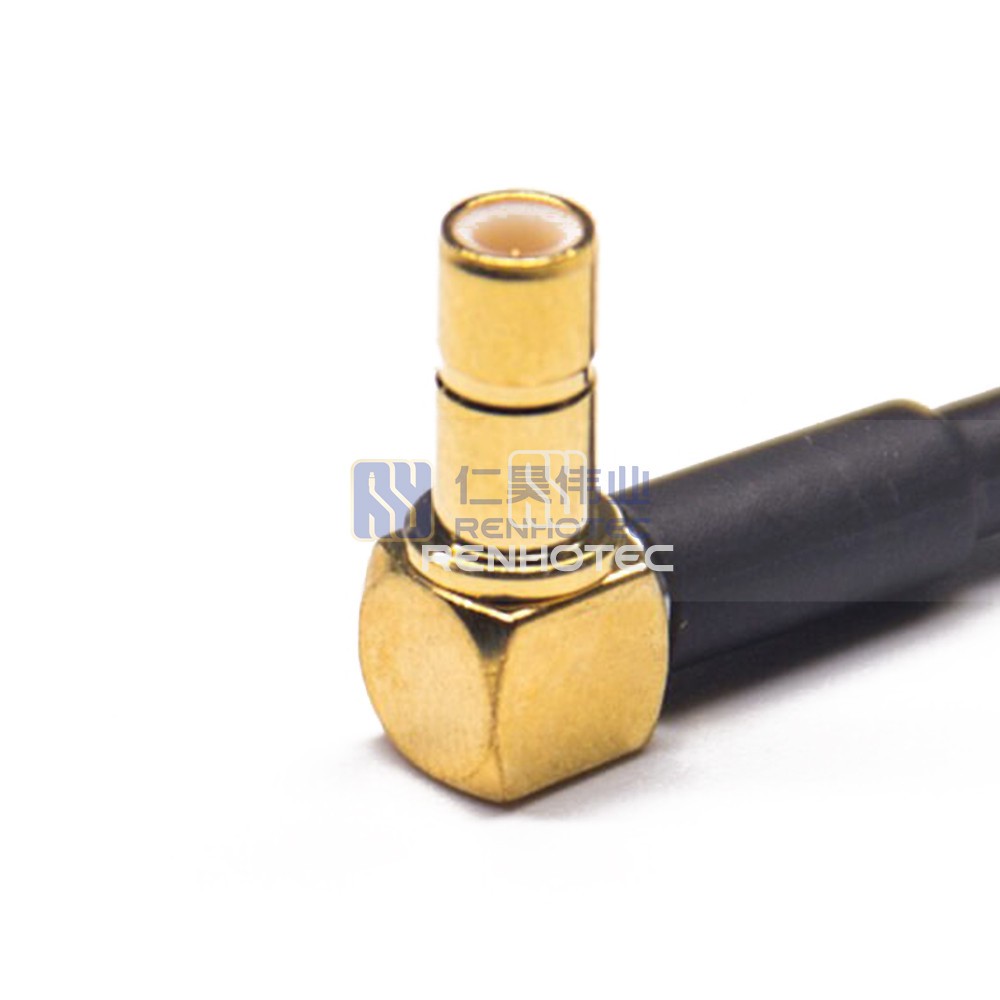

MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax product image

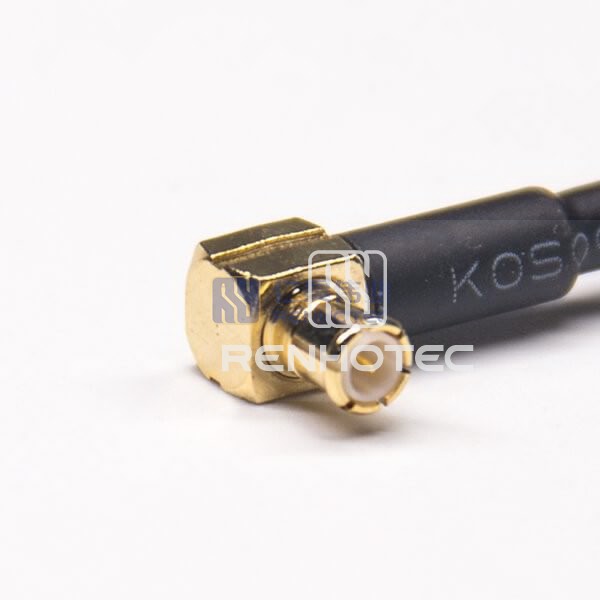

MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax product image

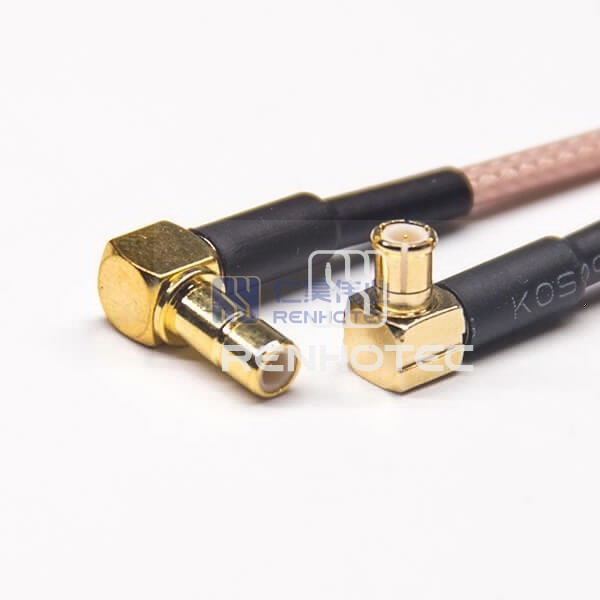

MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax product image

R02-S02-10010-20

MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly with 50Ohm RG316 Coax

  • Technical data
  • Overview
  • Certification
  • Download
General
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesSMB Jack
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Suitable CableRG316
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
Environmental
Operating Temperature-40°C ~ + 85°C

Product excerpt

Connect your devices with ease using this high-quality MCX Male Right Angle to SMB Female Right Angle RF Cable Assembly. This cable features 50Ohm RG316 coax for reliable signal transmission in tight spaces. Perfect for various RF applications.
