MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax - R02-S02-10012-10
MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax - R02-S02-10012-10

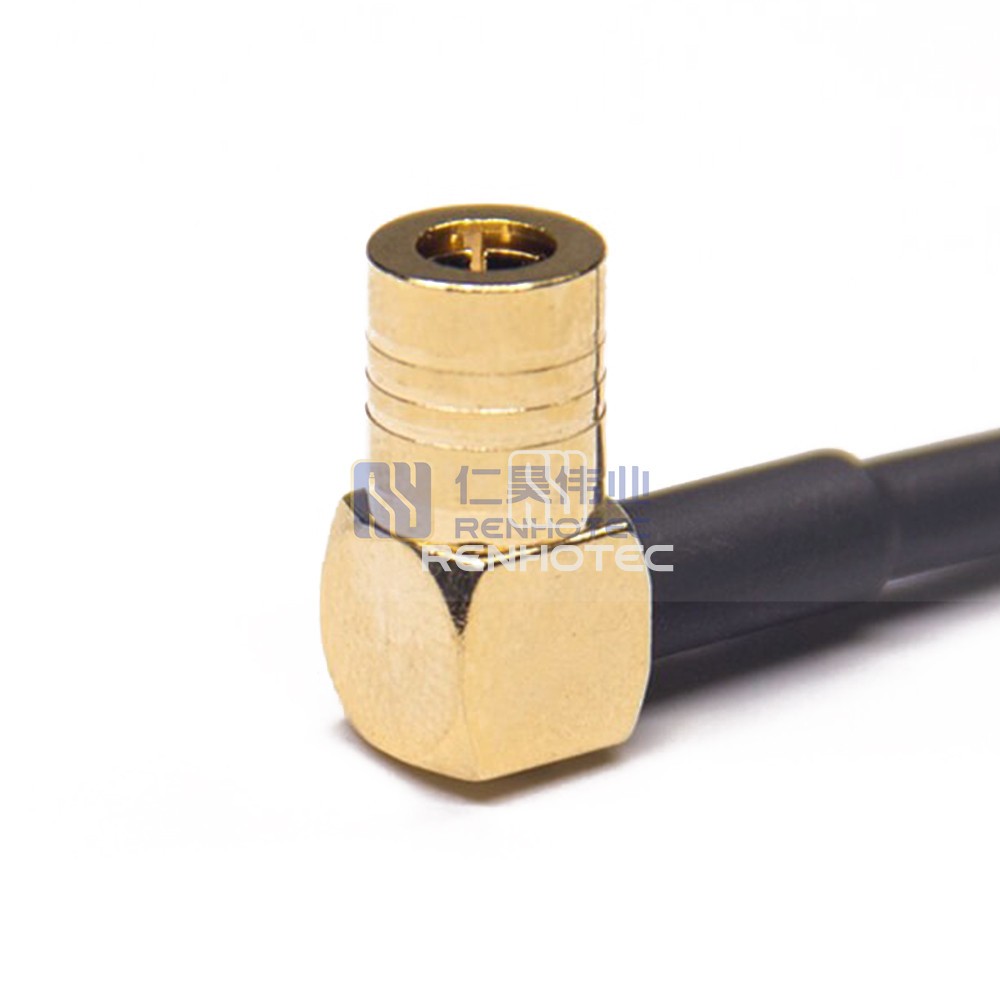

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax product image

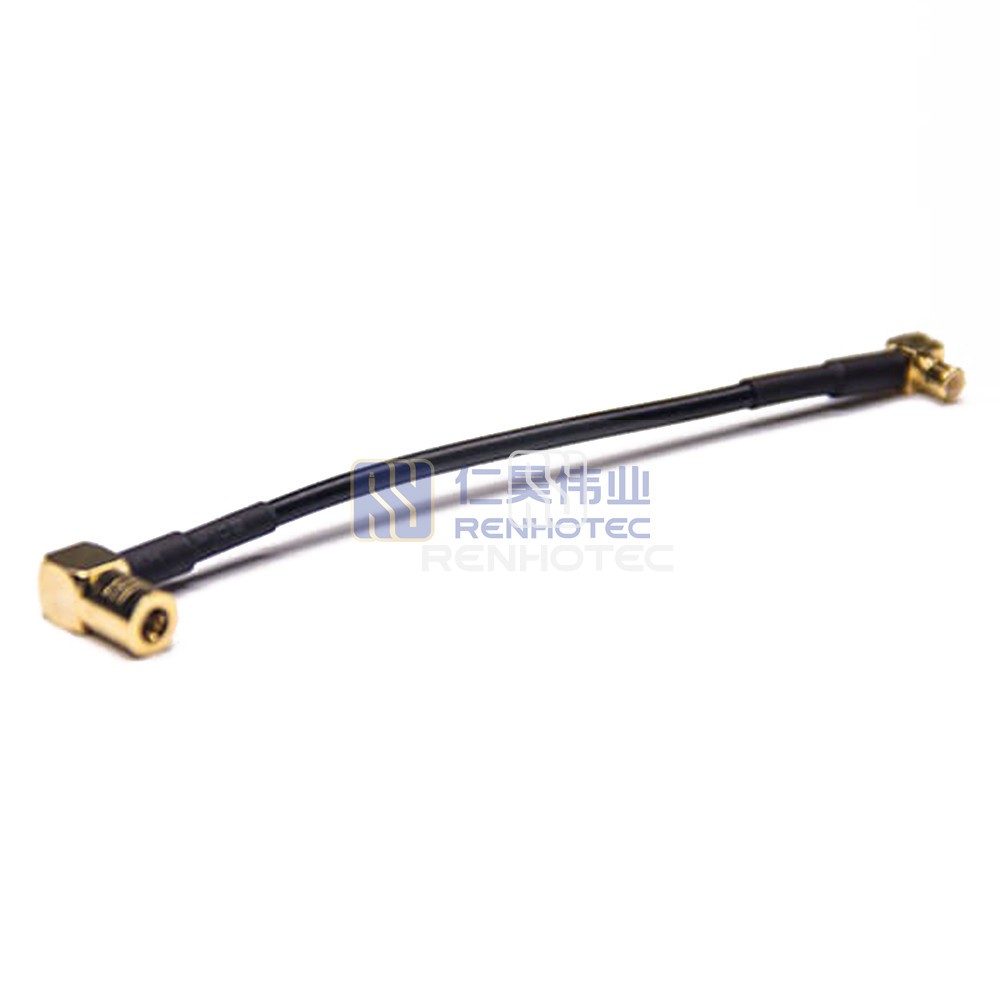

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax product image

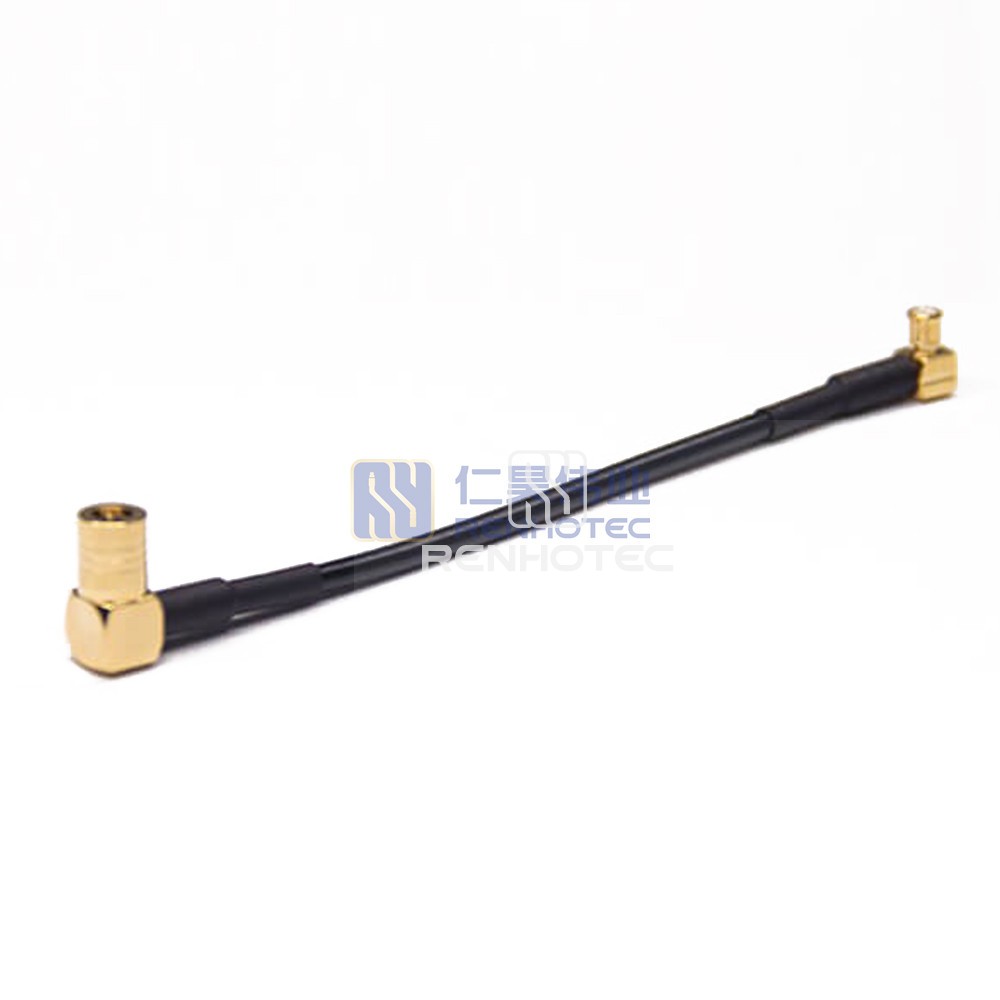

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax product image

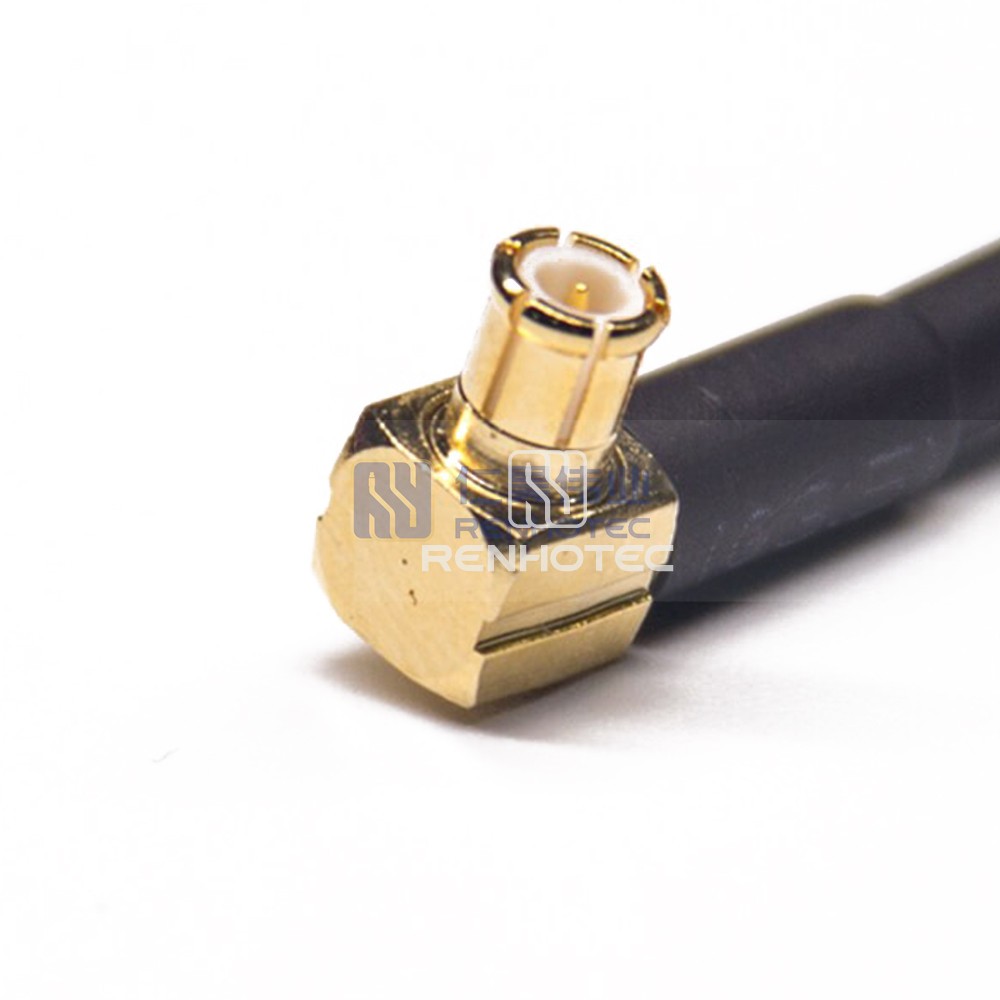

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax product image

R02-S02-10012-10

MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax

  • Technical data
  • Overview
  • Certification
  • Download
General
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Suitable CableRG174
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
Environmental
Operating Temperature-40°C ~ + 85°C

Product excerpt

High-quality MCX Male Right Angle to SMB Male Right Angle RF Cable Assembly with 50Ohm RG174 Coax. Perfect for efficient signal transmission. SKU: R02-S02-10012-10.
