R02-M02-10013-600

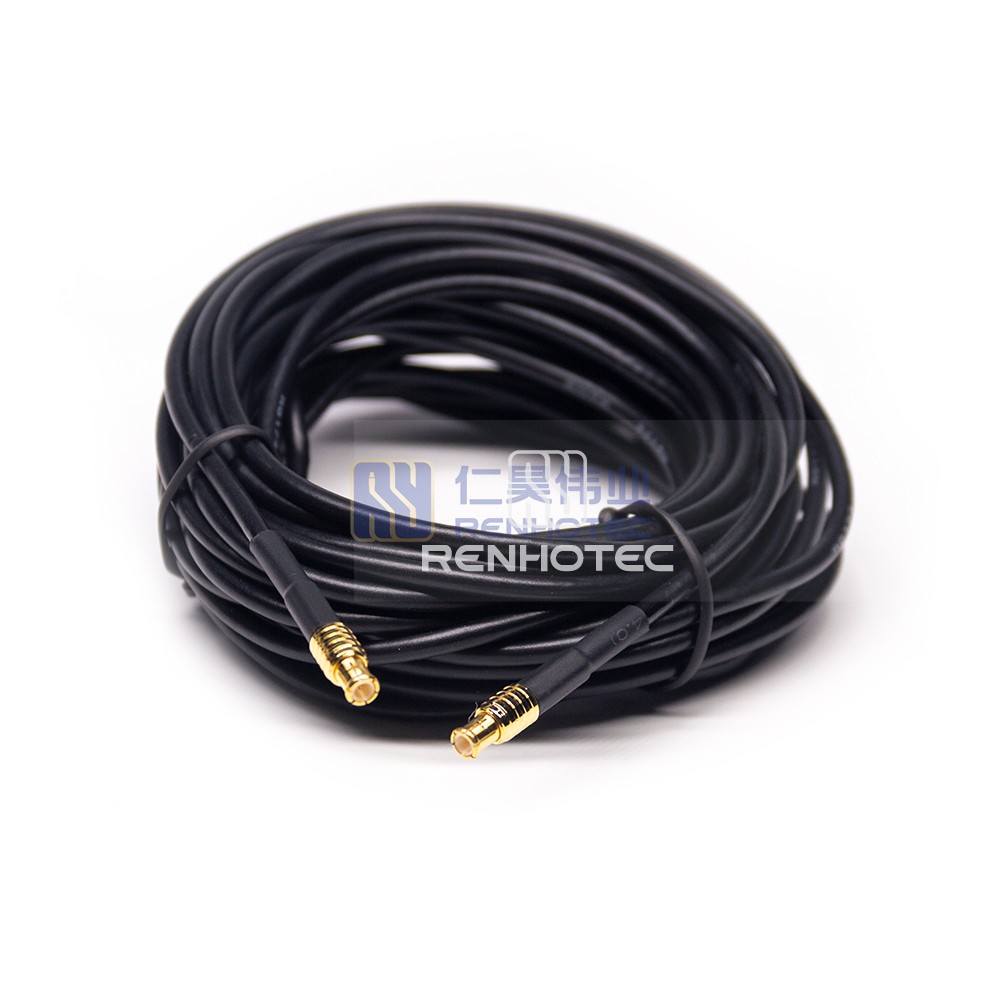

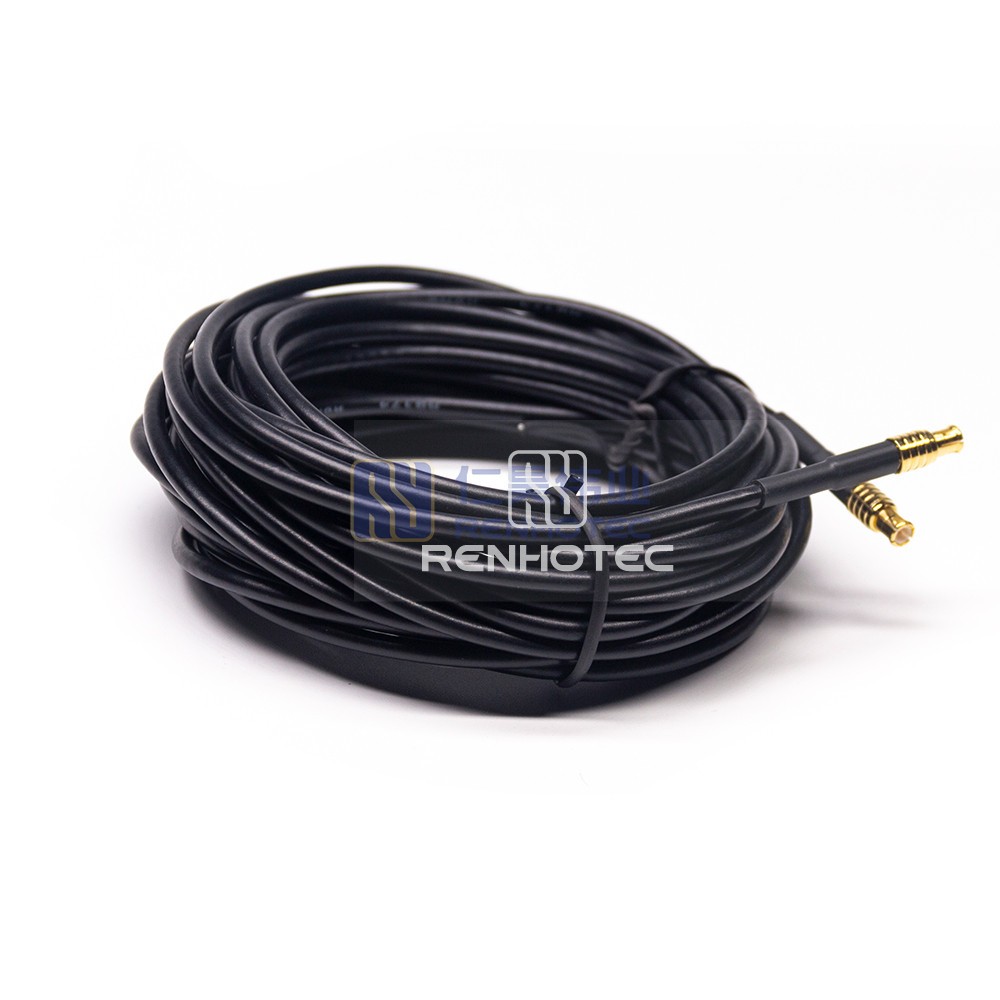

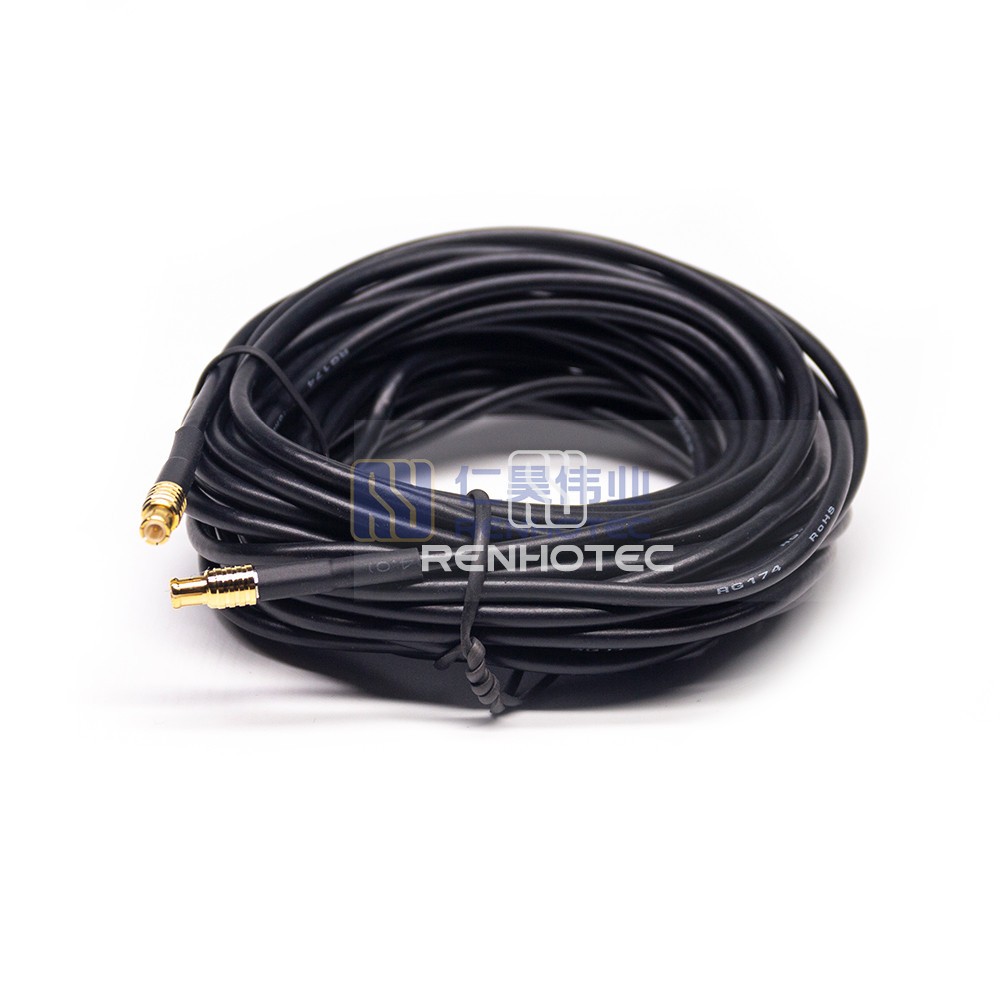

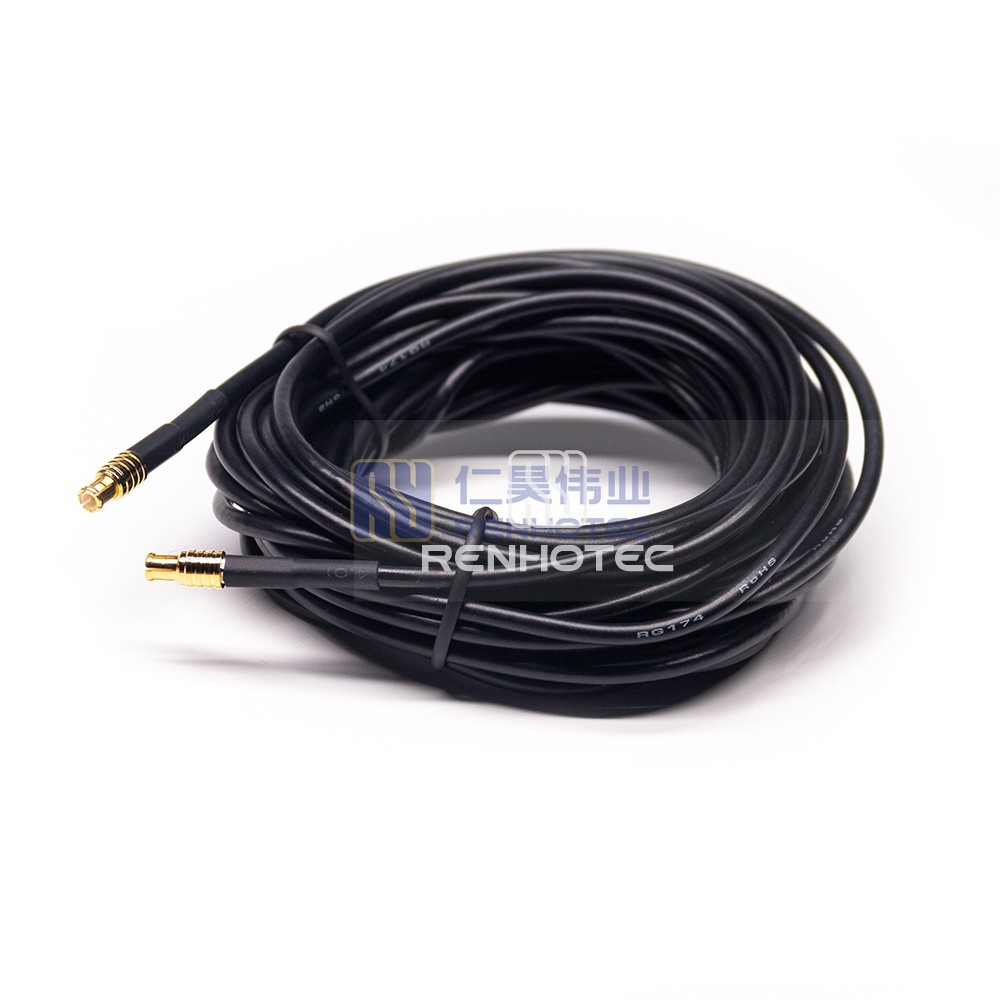

MCX Male to MCX Male Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure seamless connectivity with this MCX Male to MCX Male Cable Assembly featuring 50Ohm RG174 coaxial cable, ideal for high-frequency applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | MCX to MCX |
| 1st Connector Series | MCX Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | MCX Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
