Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3112E12-10S Female Box Mount Receptacle 10 Pin

MS3112E12-10S/PT02E-12-10S

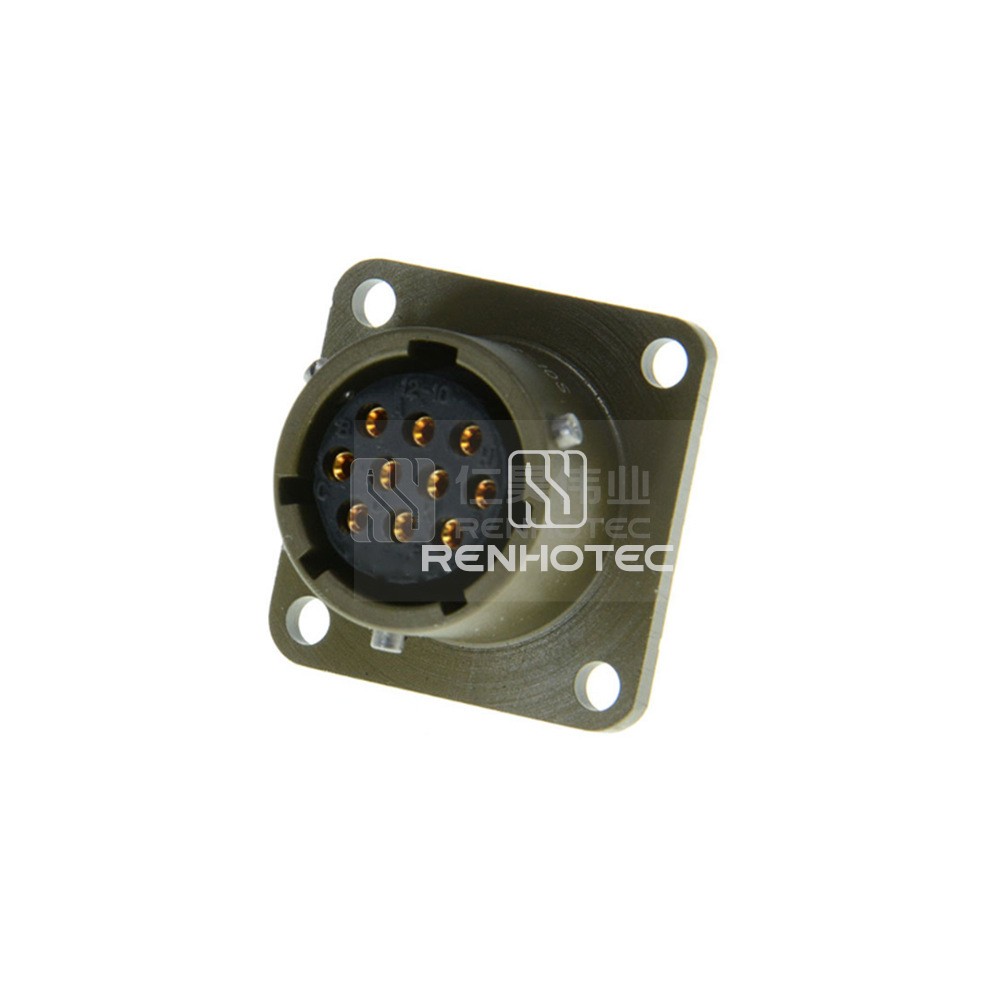

MIL-DTL-26482 Connector MS3112E12-10S Female Box Mount Receptacle 10 Pin

Rugged and reliable female box mount receptacle with 10 pins for MIL-DTL-26482 connectors.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions10
    Contact Arrangements12-10
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size12

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG24,22,20

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
