Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3112E12-14S Female Box Mount Receptacle 14 Pin

MS3112E12-14S/PT02E-12-14S

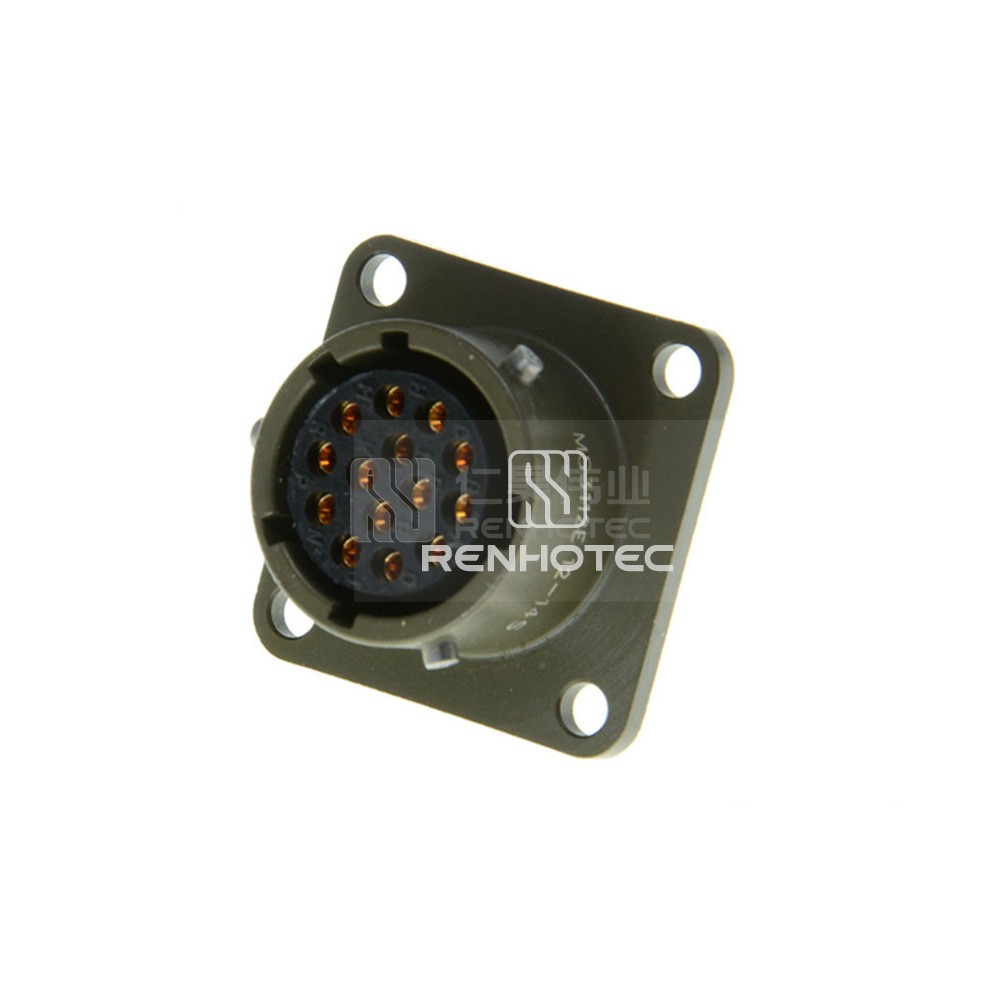

MIL-DTL-26482 Connector MS3112E12-14S Female Box Mount Receptacle 14 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Get the MIL-DTL-26482 MS3112E12-14S female box mount receptacle with 14 pins. This connector ensures secure and reliable connections for your electronic needs.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions14
    Contact Arrangements14-12
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size12

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or RangeAWG24，22，20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог разъемов RENHOTEC 26482 [RU] Download
    RENHOTEC 26482 Catalog [EN] Download
