MS3112E14-12P/PT02E-14-12P

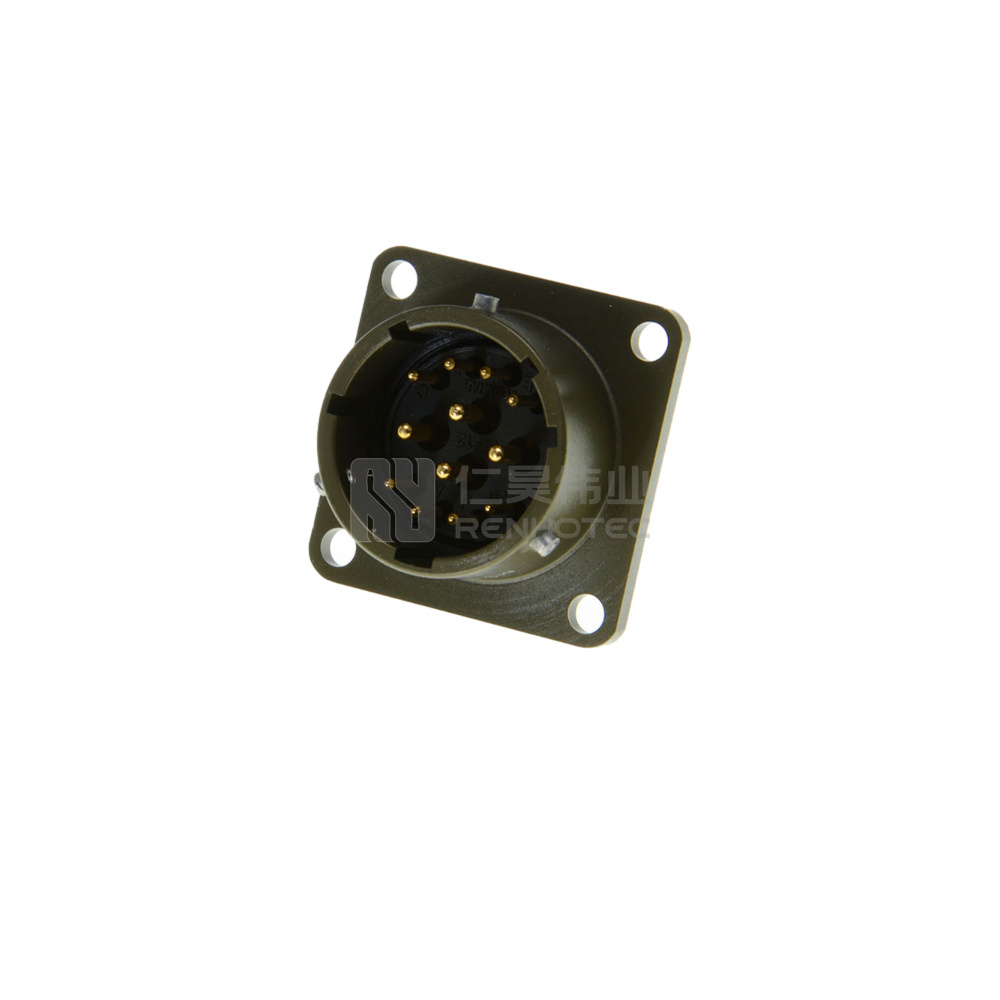

MIL-DTL-26482 Connector MS3112E14-12P Male Box Mount Receptacle 12 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MIL-DTL-26482 connector featuring MS3112E14-12P male box mount receptacle with 12 pins. This connector ensures reliable and secure connections in various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions12
Contact Arrangements14-12
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range8*AWG24，22，20/4*AWG20，18，16
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size14
Electrical
ShieldingUnshielded
Rated Current4*22A/8*7.5A
Rated Voltage600V

Catelog

RENHOTEC Mil-C-5015 Catalog [EN] Download
