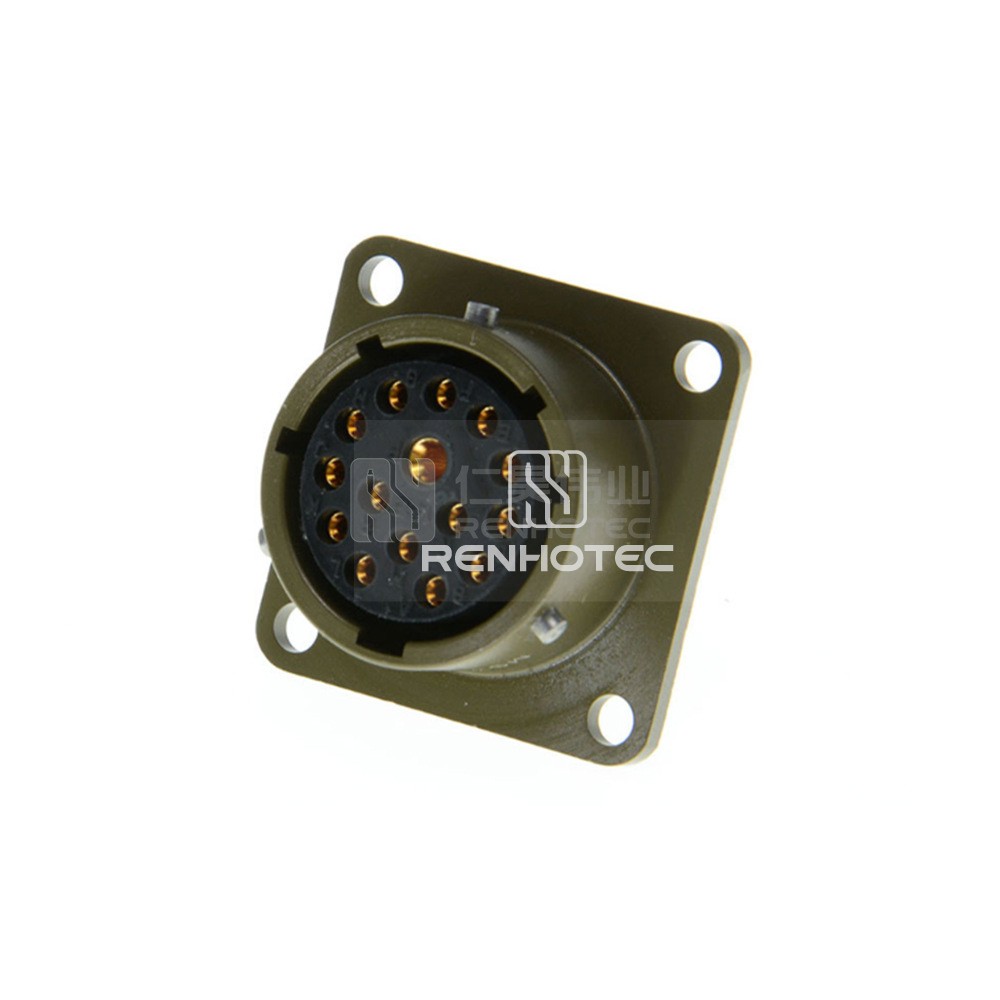

MIL-DTL-26482 Connector MS3112E14-15S Female Box Mount Receptacle 15 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 connector with MS3112E14-15S female box mount receptacle for reliable and secure connection. Features 15 pins for versatile use in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions15
    Contact Arrangements14-15
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range14*AWG24，22，20/1*AWG20，18，16

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current14*7.5A/1*22A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
