MS3112E14-18S/PT02E-14-18S

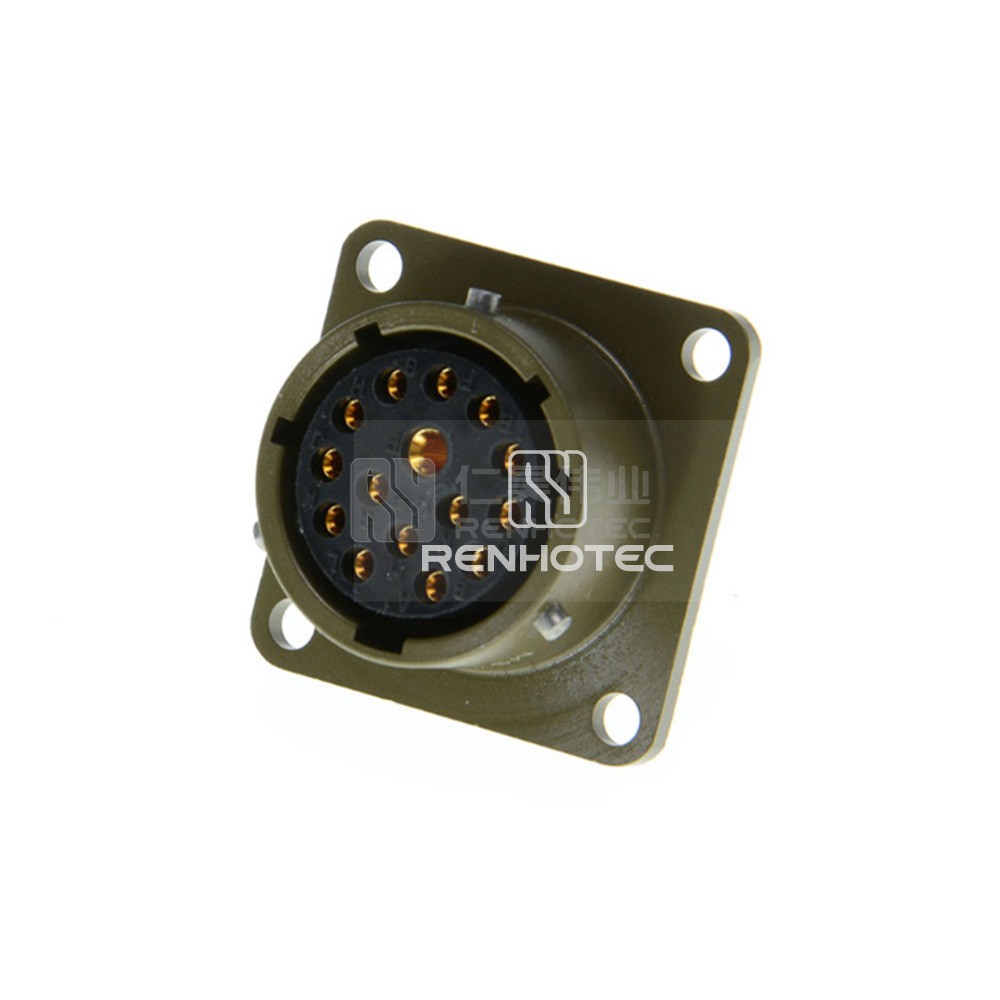

MIL-DTL-26482 Connector MS3112E14-18S Female Box Mount Receptacle 18 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Affordable MIL-DTL-26482 Connector MS3112E14-18S Female Box Mount Receptacle with 18 pins. Reliable and durable design for various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions18
Contact Arrangements14-18
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or RangeAWG24，22，20
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size14
Electrical
ShieldingUnshielded
Rated Current7.5A
Rated Voltage600V
