MS3112E14-19P/PT02E-14-19P

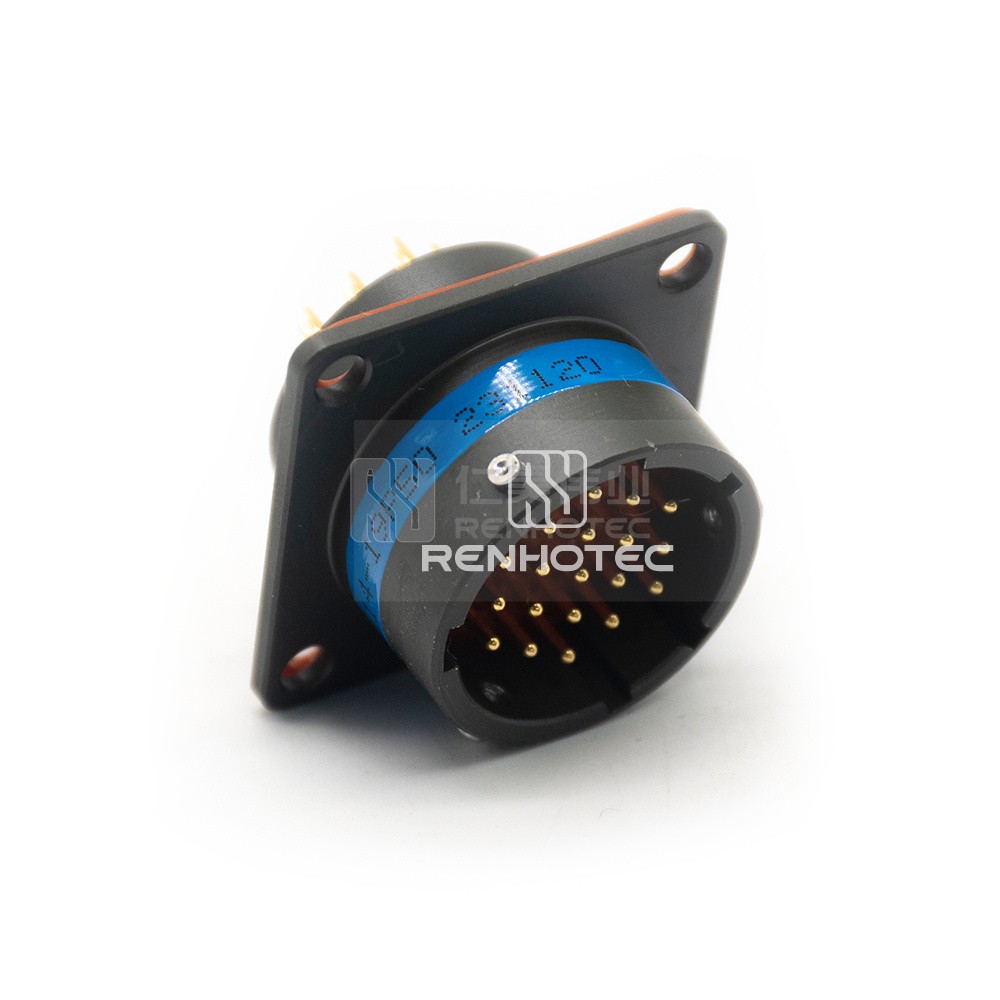

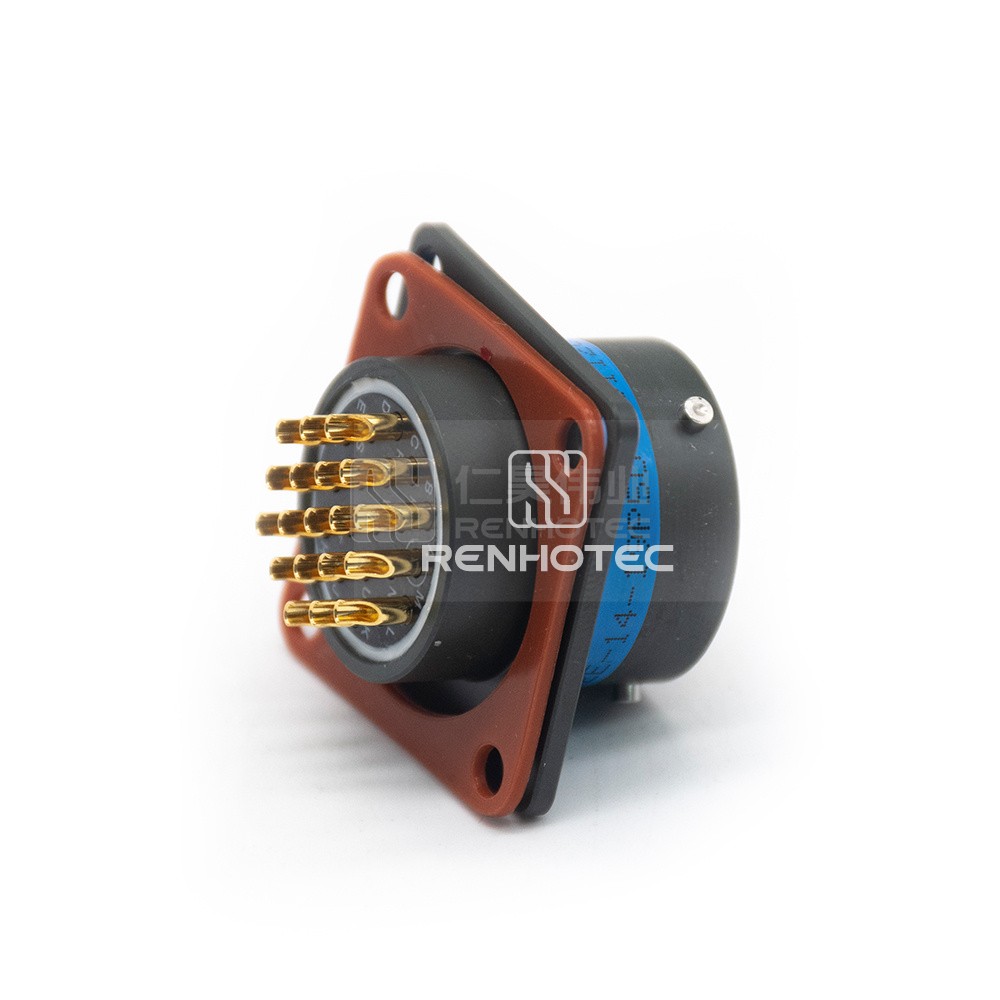

MIL-DTL-26482 Connector MS3112E14-19P Male Box Mount Receptacle 19 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MIL-DTL-26482 connector featuring MS3112E14-19P Male Box Mount Receptacle with 19 Pins. Ideal for secure and reliable connections in various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions19
Contact Arrangements14-19
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or RangeAWG24，22，20
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size14
Electrical
ShieldingUnshielded
Rated Current7.5A
Rated Voltage600V
