Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3112E14-5P Male Box Mount Receptacle 5 Pin

MS3112E14-5P/PT02E-14-5P

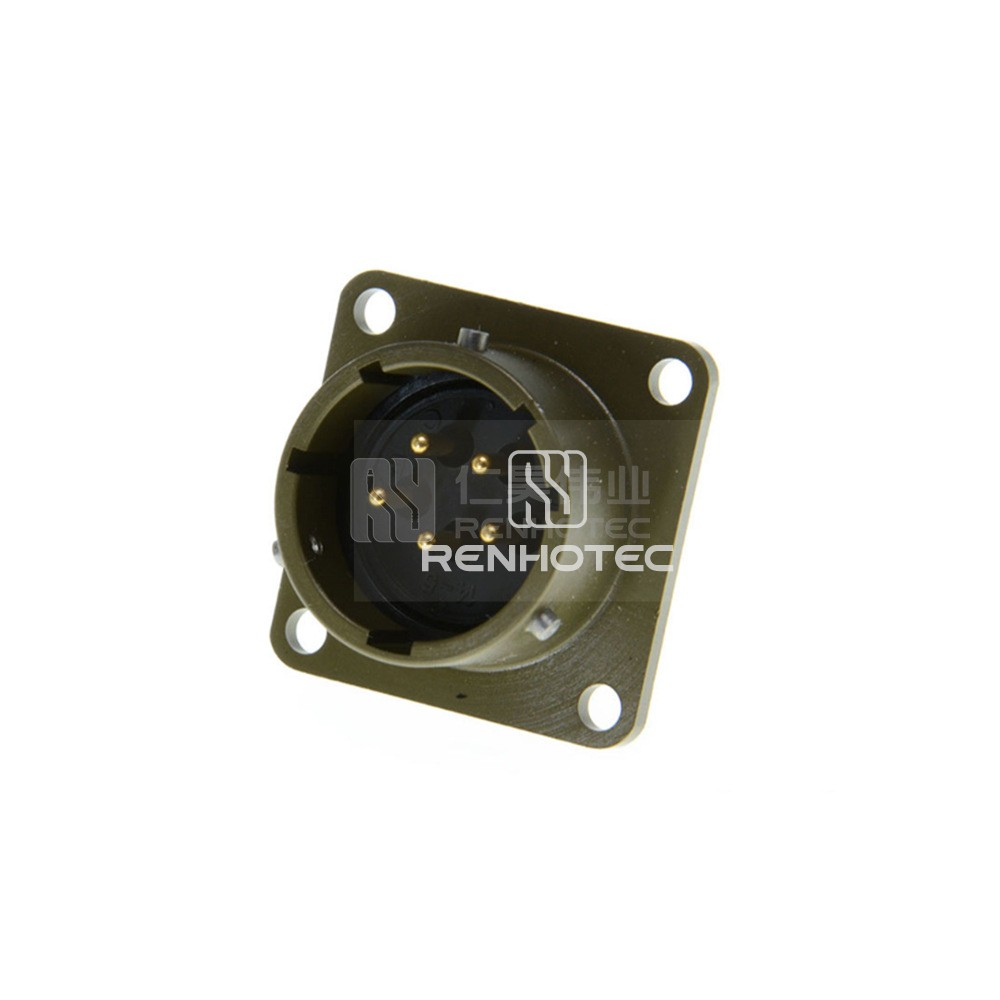

MIL-DTL-26482 Connector MS3112E14-5P Male Box Mount Receptacle 5 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 MS3112E14-5P male box mount receptacle with 5 pins for secure connections. Ideal for industrial and military applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions5
    Contact Arrangements14-5
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or RangeAWG20，18，16

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1000V

    Environmental

    Operating Temperature-55°C ~ + 125°C
