Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3112E14-5S Female Box Mount Receptacle 5 Pin

MS3112E14-5S/PT02E-14-5S

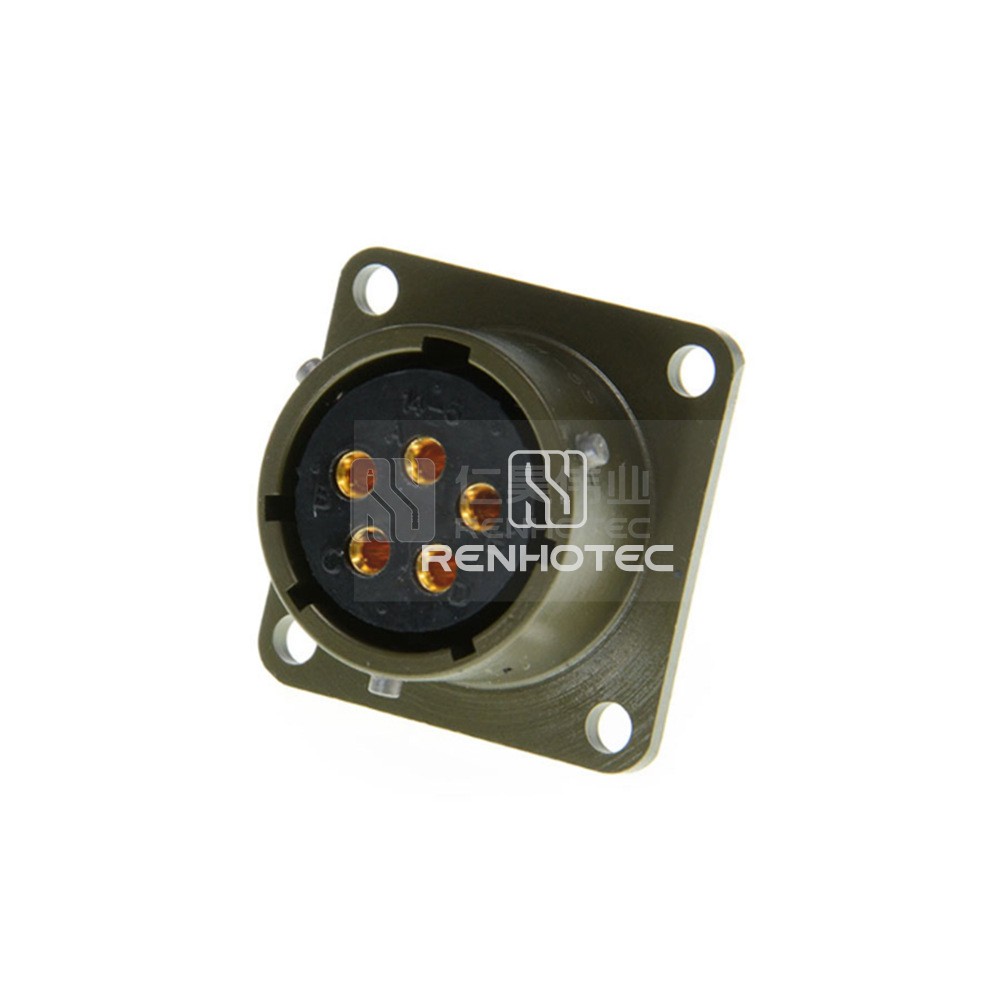

MIL-DTL-26482 Connector MS3112E14-5S Female Box Mount Receptacle 5 Pin

Get the reliable and durable MIL-DTL-26482 Connector MS3112E14-5S Female Box Mount Receptacle with 5 Pins for secure connections in your electrical applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions5
    Contact Arrangements14-5
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG20,18,16

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1000V

    Environmental

    Operating Temperature-55°C ~ + 125°C
