MS3112E16-26P/PT02E-16-26P

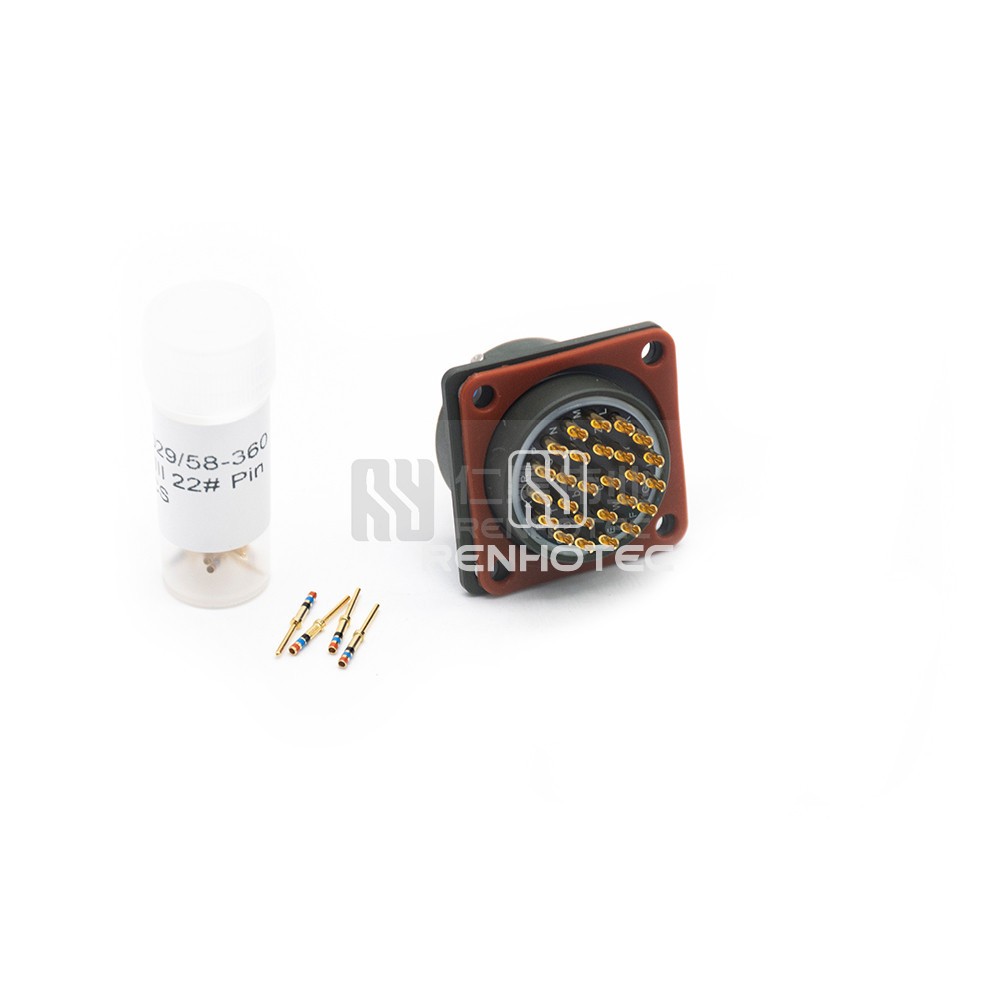

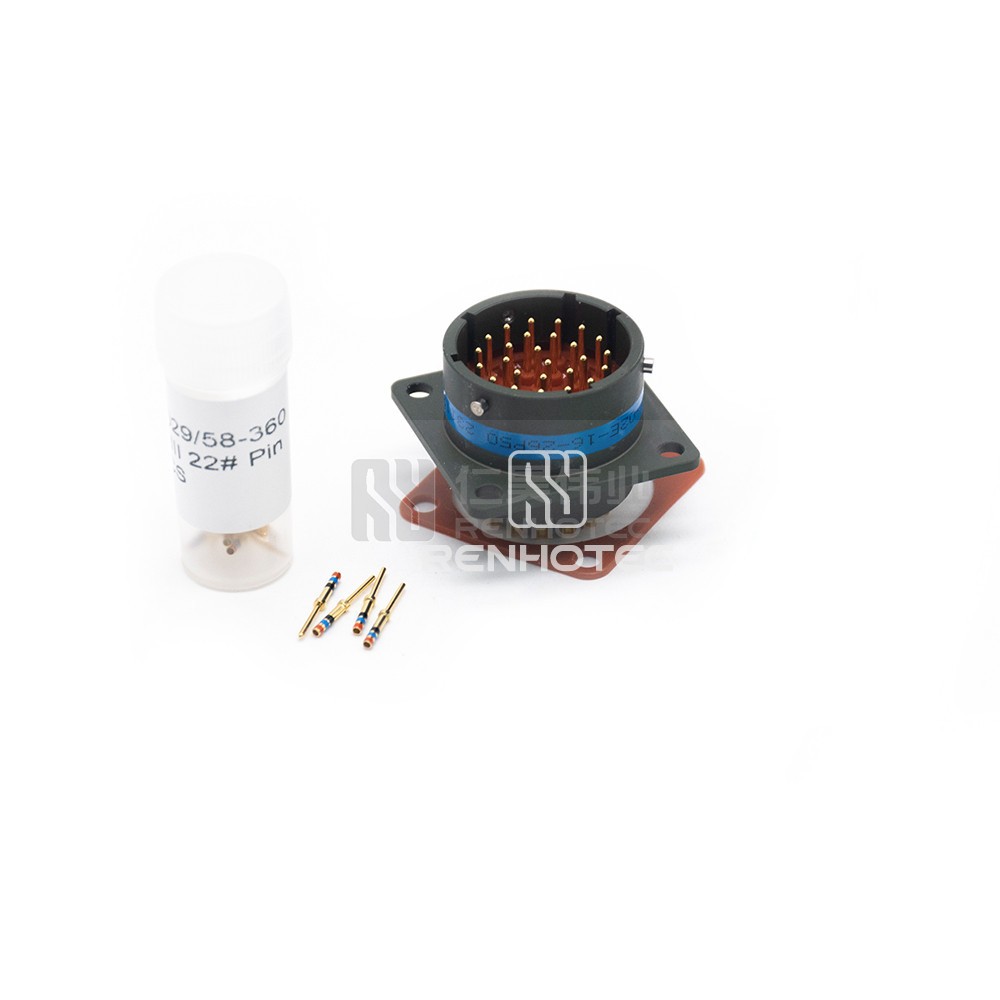

MIL-DTL-26482 Connector MS3112E16-26P Male Box Mount Receptacle 26 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions26
    Contact Arrangements16-26
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size16

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or RangeAWG24，22，20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
