Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3112E16-8P Male Box Mount Receptaclee 8 Pin

MS3112E16-8P/PT02E-16-8P

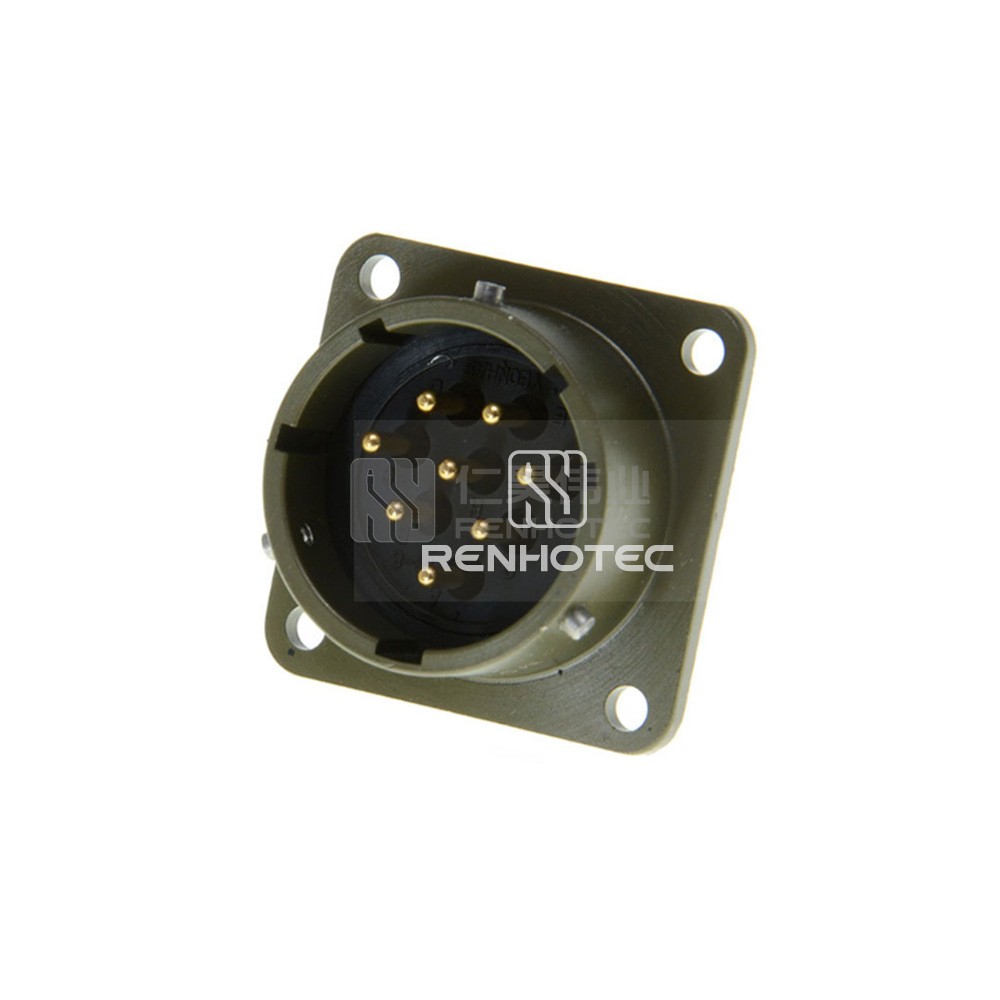

MIL-DTL-26482 Connector MS3112E16-8P Male Box Mount Receptaclee 8 Pin

This connector is ideal for your electrical needs, offering a reliable solution for connecting 8 pins.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions8
    Contact Arrangements16-8
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size16

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG20,18,16

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1000V

    Environmental

    Operating Temperature-55°C ~ + 125°C
