MS3112E18-32S/PT02E-18-32S

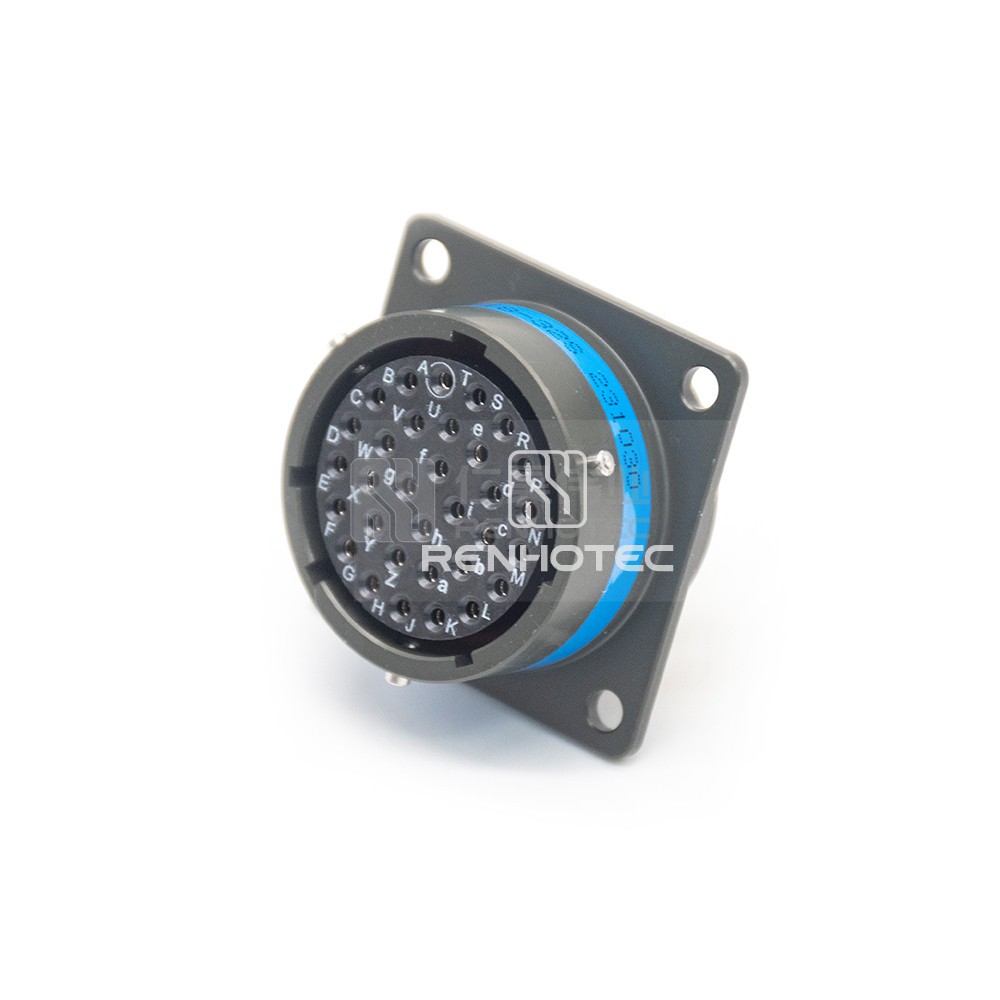

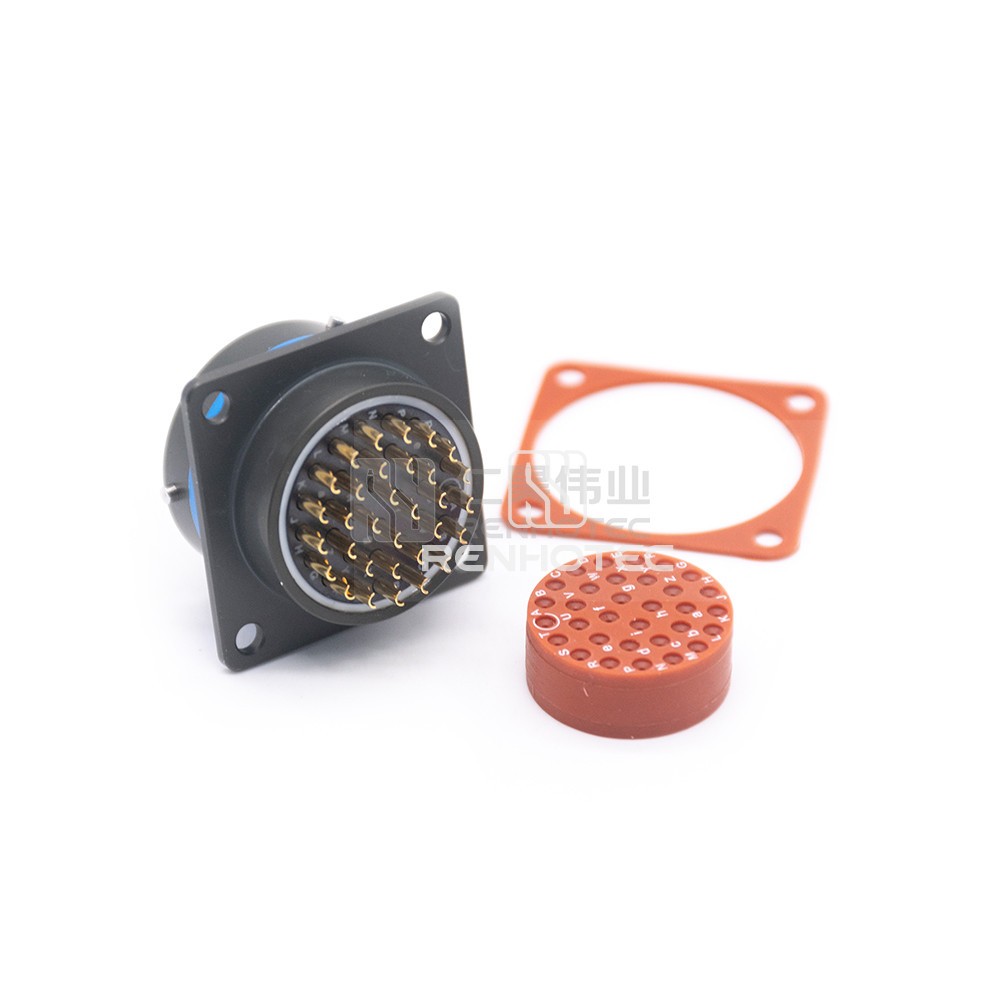

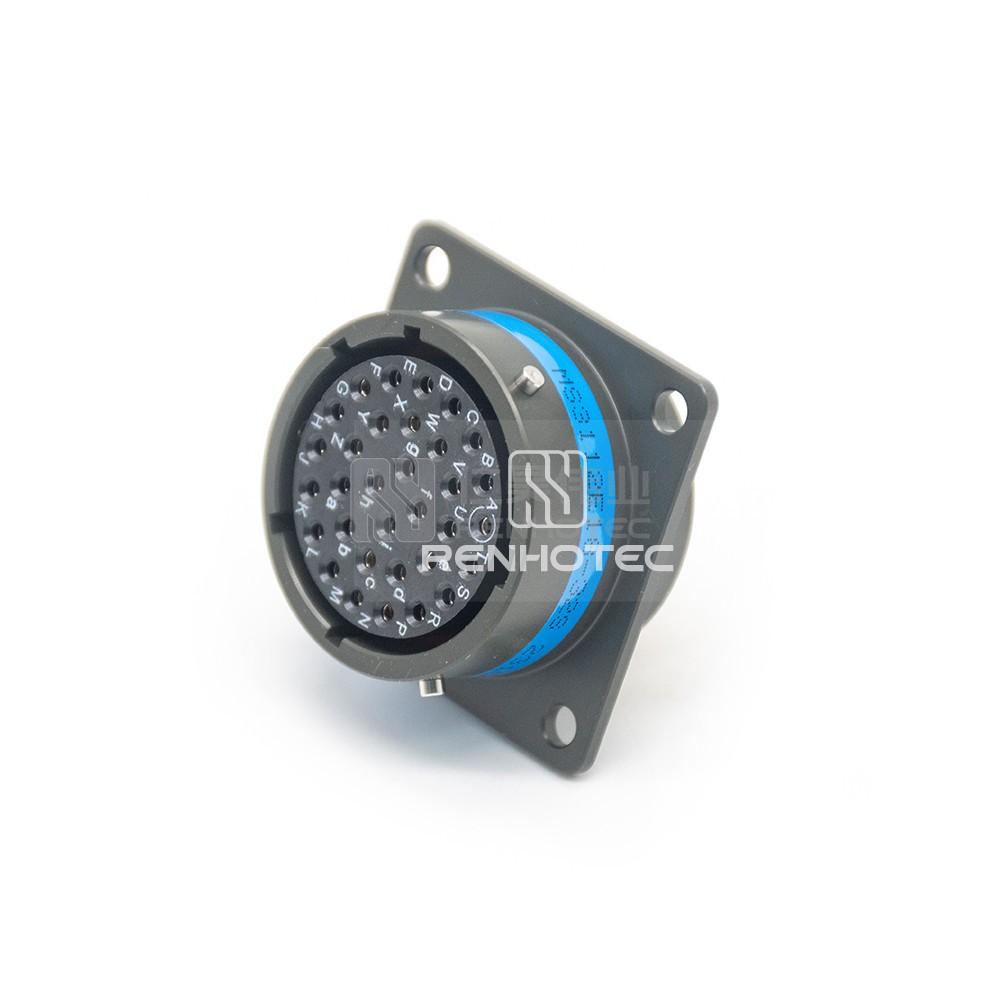

MIL-DTL-26482 Connector MS3112E18-32S Female Box Mount Receptacle 32 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Connector receptacle with 32 pins for box mounting applications. Ensuring reliable connections in various electronic devices.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions32
Contact Arrangements18-32
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or RangeAWG24，22，20
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size18
Electrical
ShieldingUnshielded
Rated Current7.5A
Rated Voltage600V
