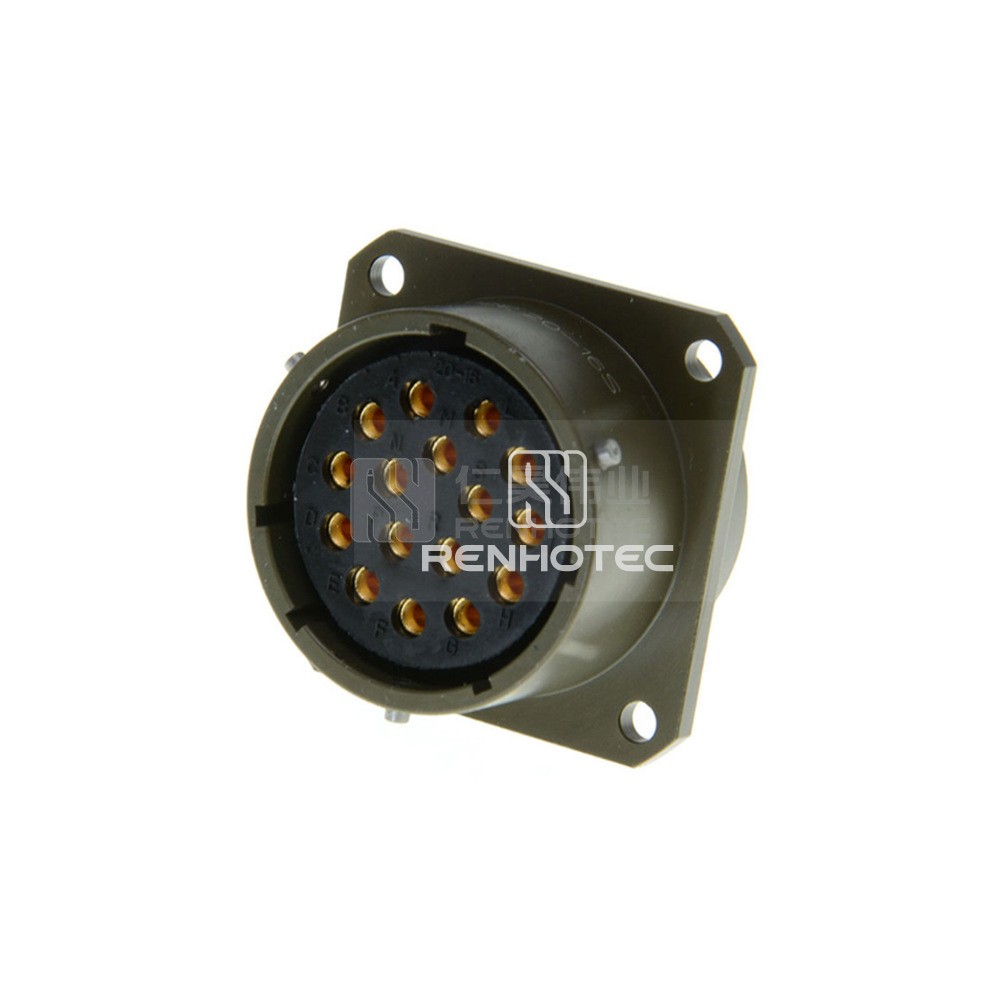

MIL-DTL-26482 Connector MS3112E20-16S Female Box Mount Receptacle 16 Pin

Durable female box mount receptacle connector with 16 pins, suitable for various industrial applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions16
    Contact Arrangements20-16
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG20,18,16

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1000V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог разъемов RENHOTEC 26482 [RU] Download
    RENHOTEC 26482 Catalog [EN] Download
