Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116A12-3S Female Straight Plug 3 Pin

MS3116A12-3S

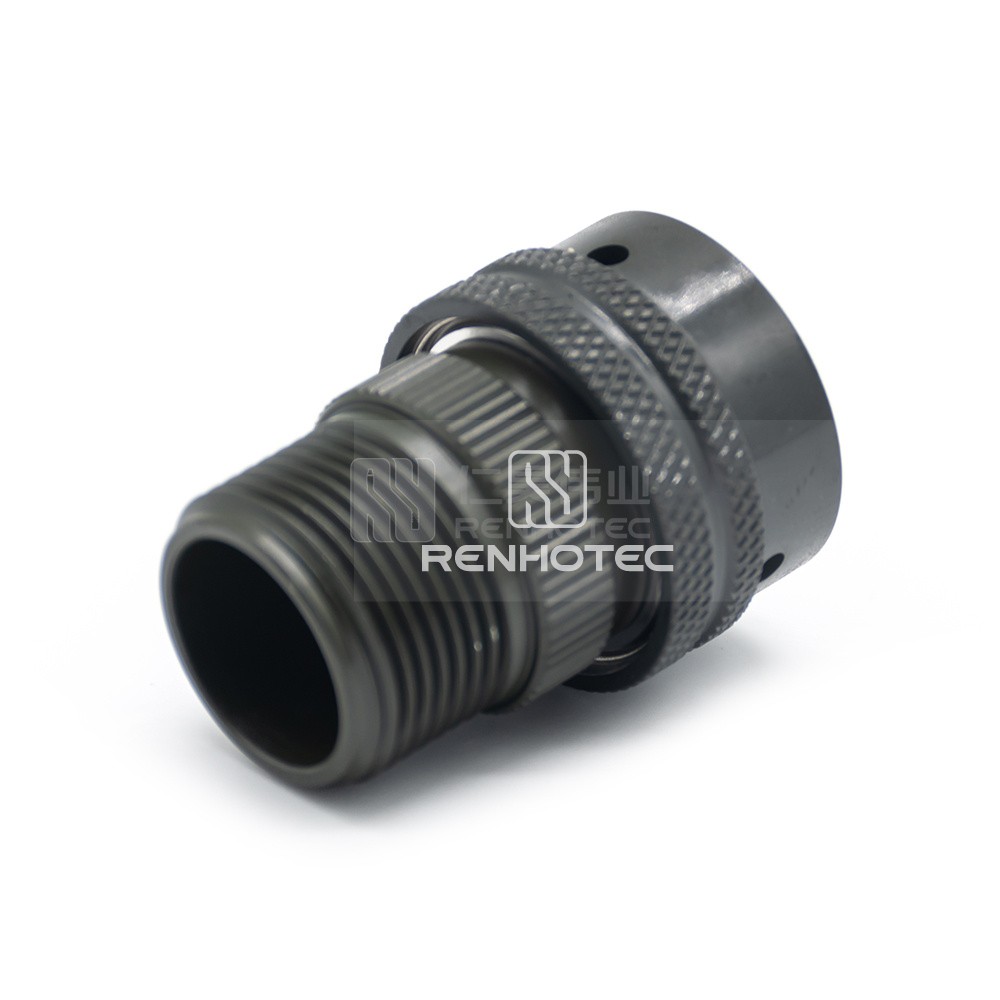

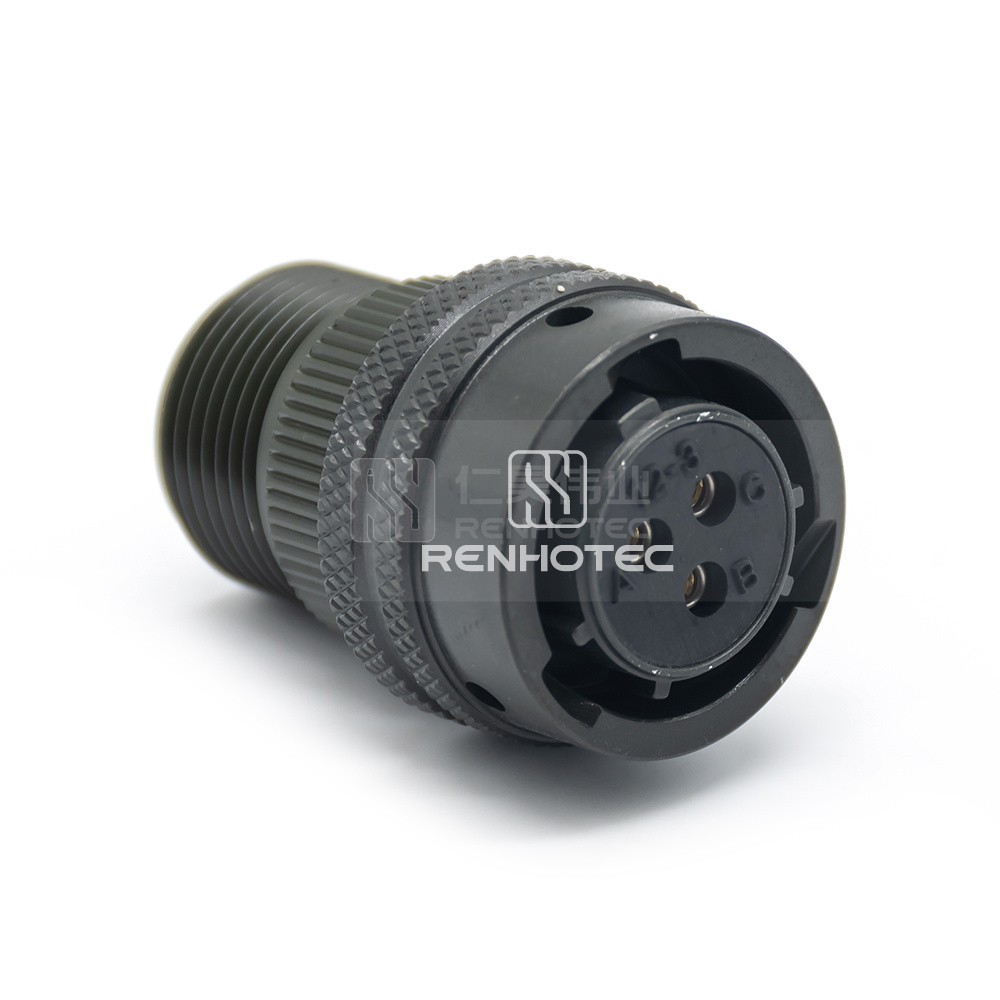

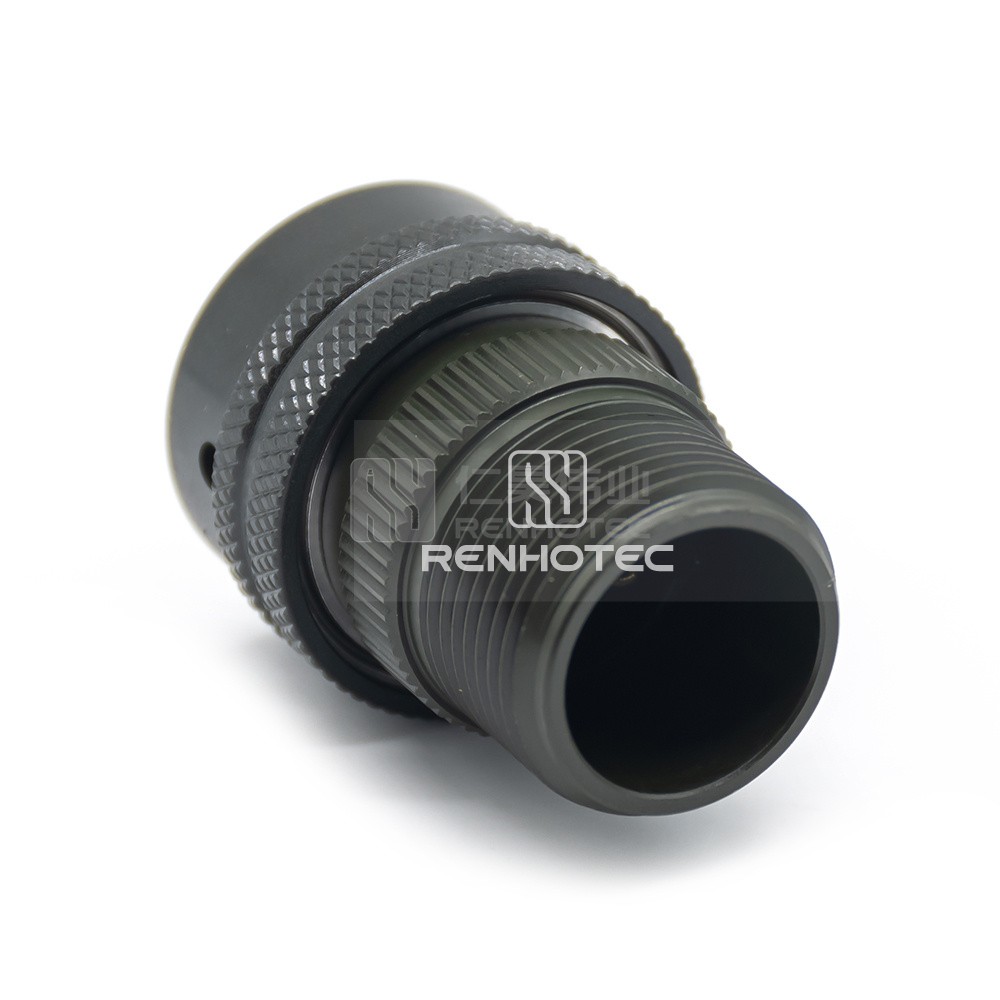

MIL-DTL-26482 Connector MS3116A12-3S Female Straight Plug 3 Pin

High-quality MIL-DTL-26482 connector with MS3116A12-3S female straight plug containing 3 pins. Reliable and sturdy design for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Contact Arrangements12-3
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size12

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG20,18,16

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1275VDC

    Environmental

    Operating Temperature-55°C ~ + 125°C
