MS3116A14-19P

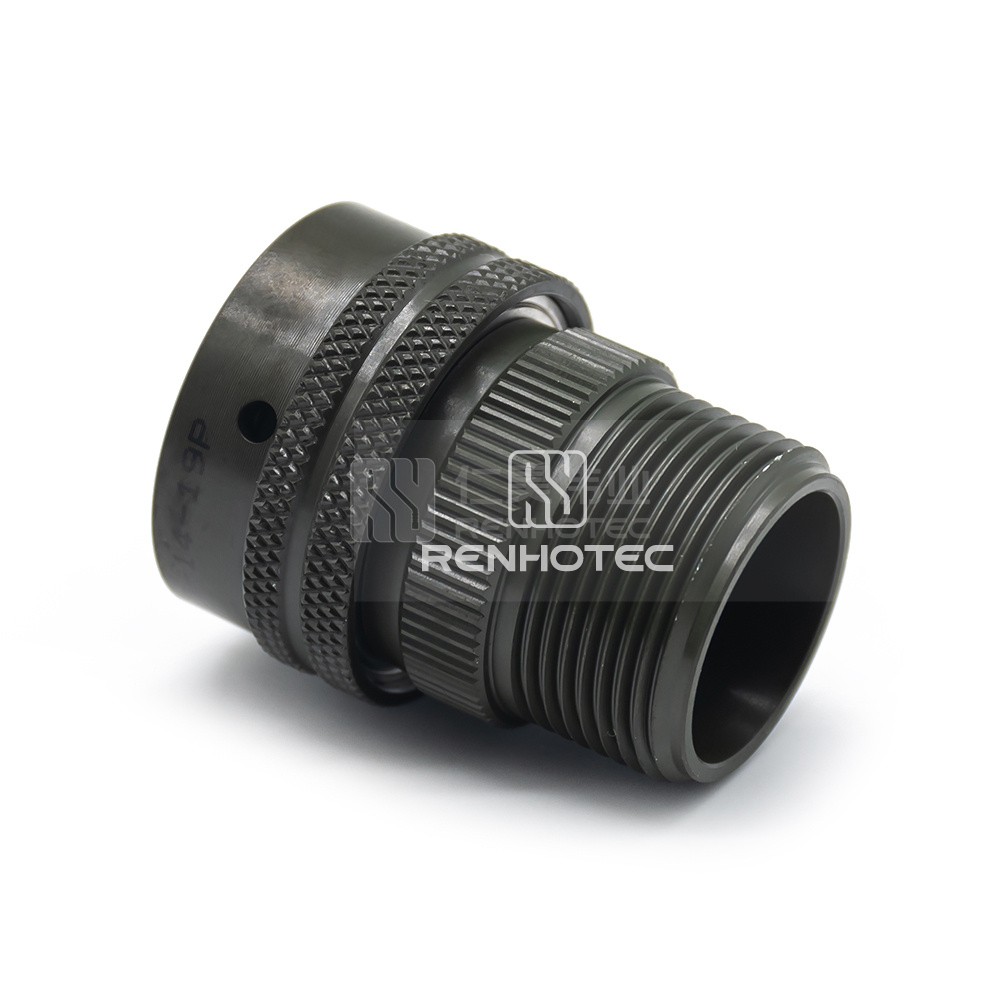

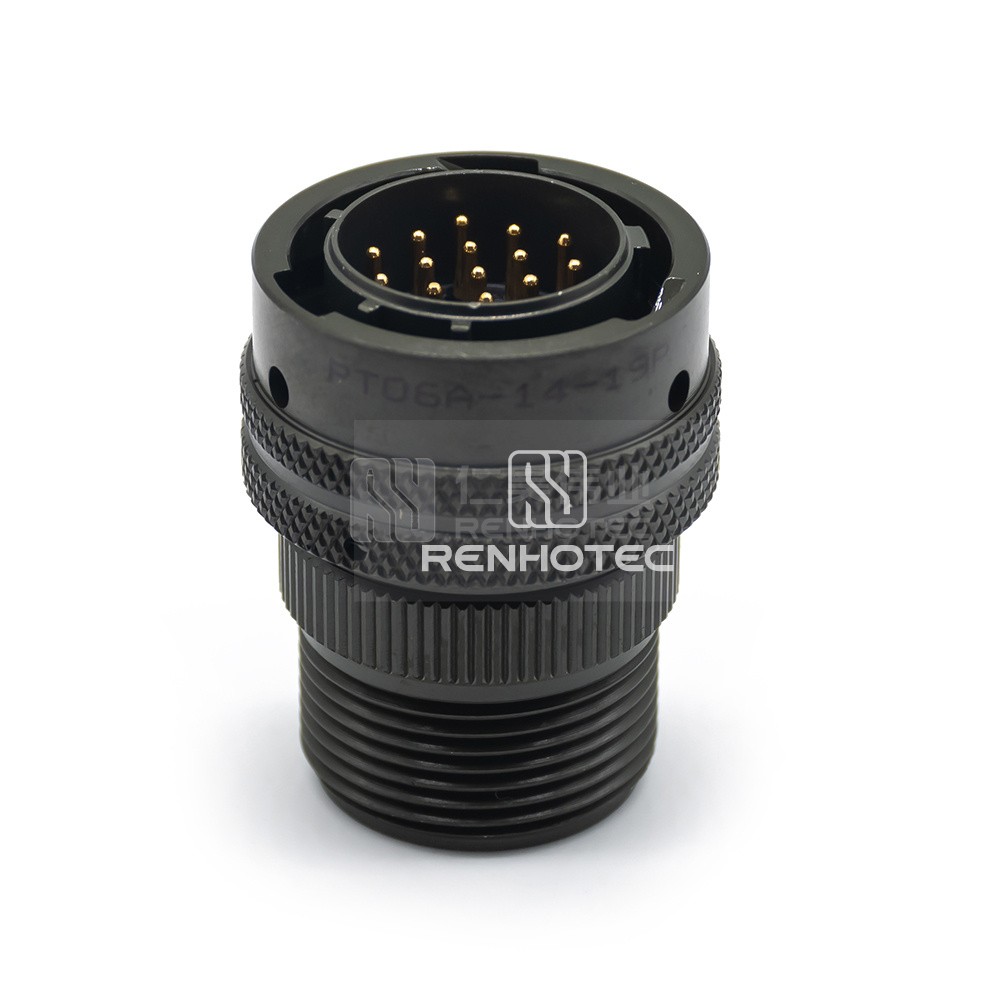

MIL-DTL-26482 Connector MS3116A14-19P Male Straight Plug 19 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 connector featuring MS3116A14-19P male straight plug with 19 pins. Designed for reliable electrical connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions19
    Contact Arrangements14-19
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or RangeAWG24，22，20

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage850VDC

    Environmental

    Operating Temperature-55°C ~ + 125°C
