MS3116F12-10P/PT06E-12-10P(SR)

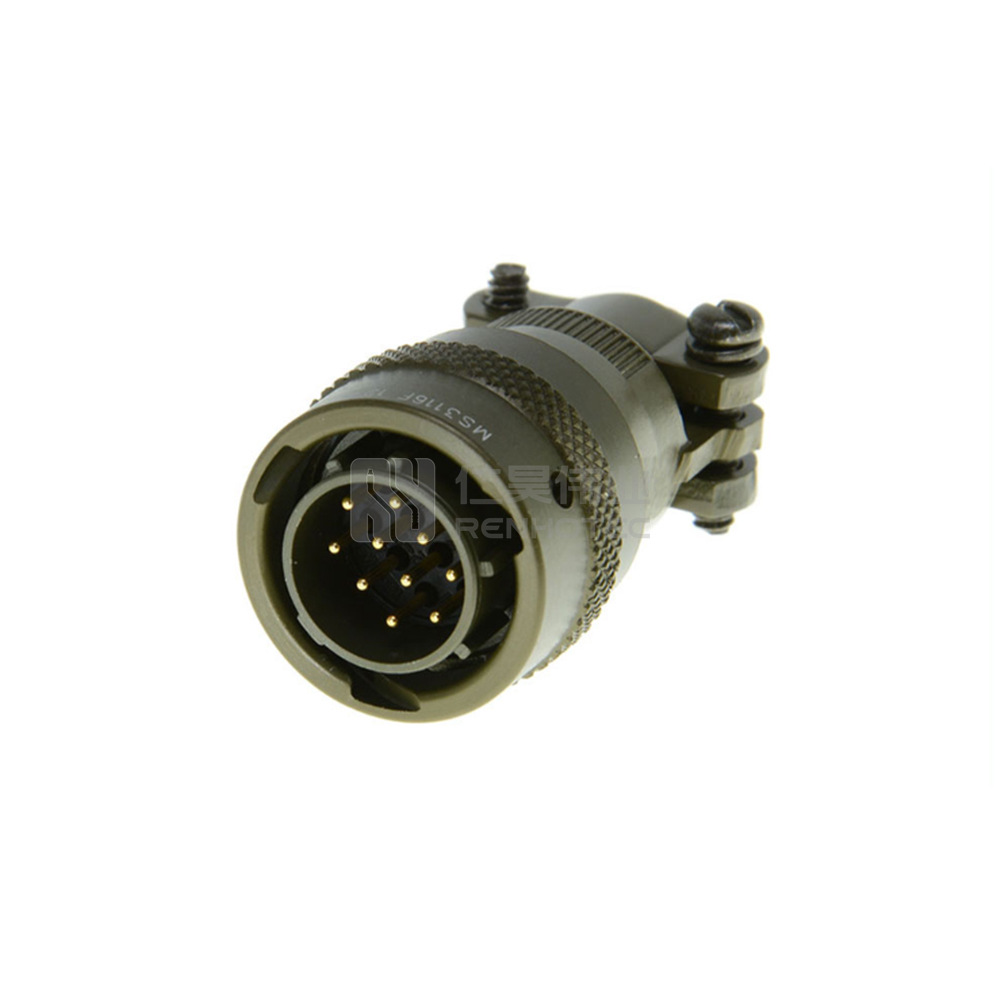

MIL-DTL-26482 Connector MS3116F12-10P Male Straight Plug 10 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

This male straight plug with 10 pins is a reliable option for your connector needs.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeMale Pin
Number of Positions10
Contact Arrangements12-10
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or RangeAWG24，22，20
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size12
Electrical
ShieldingUnshielded
Rated Current7.5A
Rated Voltage600V
