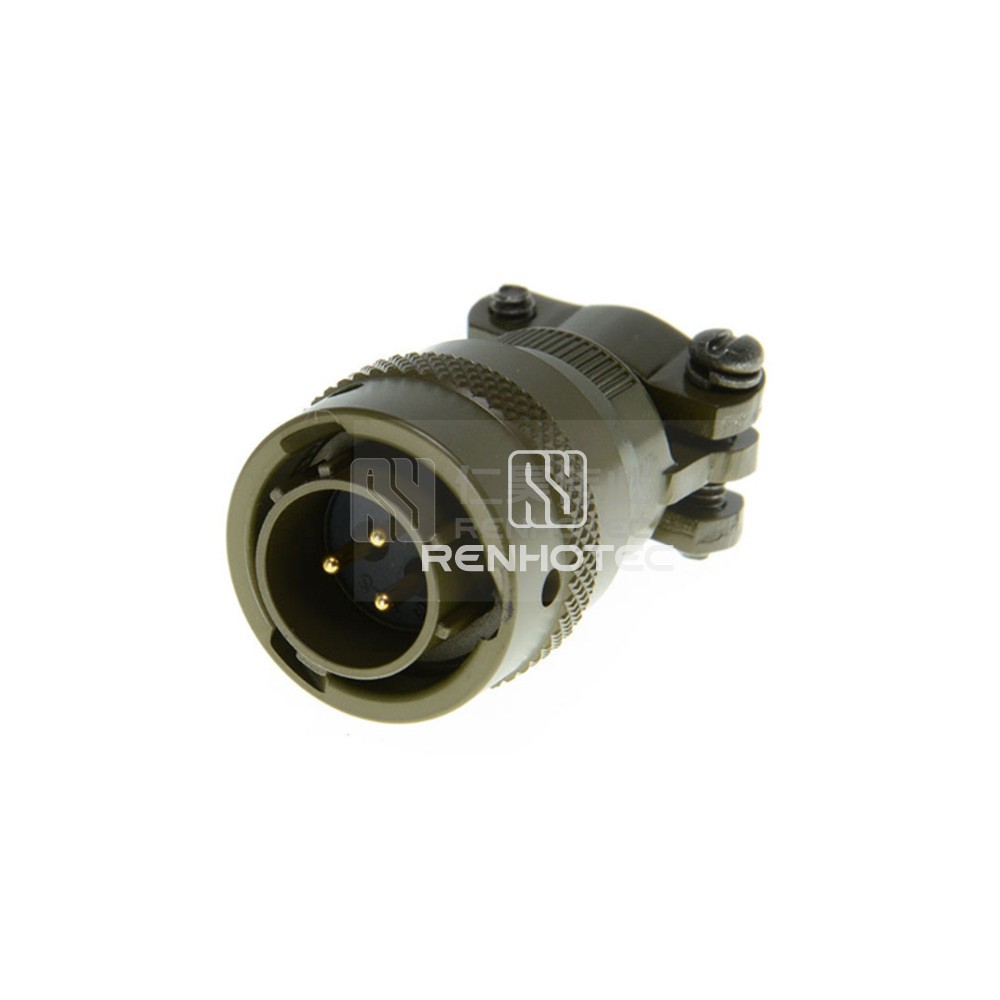

This is a rugged connector suitable for various applications.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 3 |
Contact Arrangements | 12-3 |
Contact Termination | Solder Cup |
Color | Olive Green |
Shell
Shell Size | 12 |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | AWG20,18,16 |
Material
Shell Material | Aluminum Alloy |
Contact Finish | Gold |
Insulating Material | Synthetic Rubber |
Contact Material | Copper Alloy |
Electrical
Shielding | Unshielded |
Rated Current | 22A |
Rated Voltage | 1000V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
