Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F14-19S Female Straight Plug 19 Pin

MS3116F14-19S/PT06E-14-19S(SR)

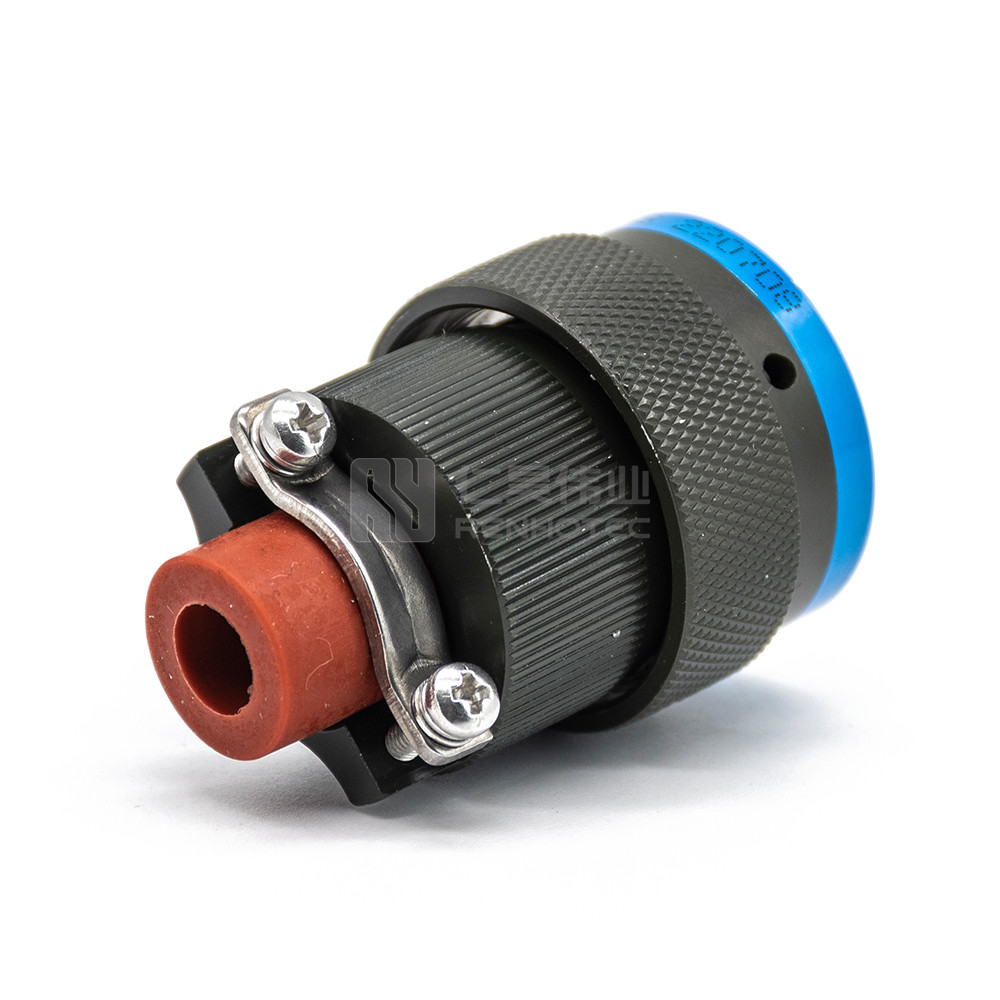

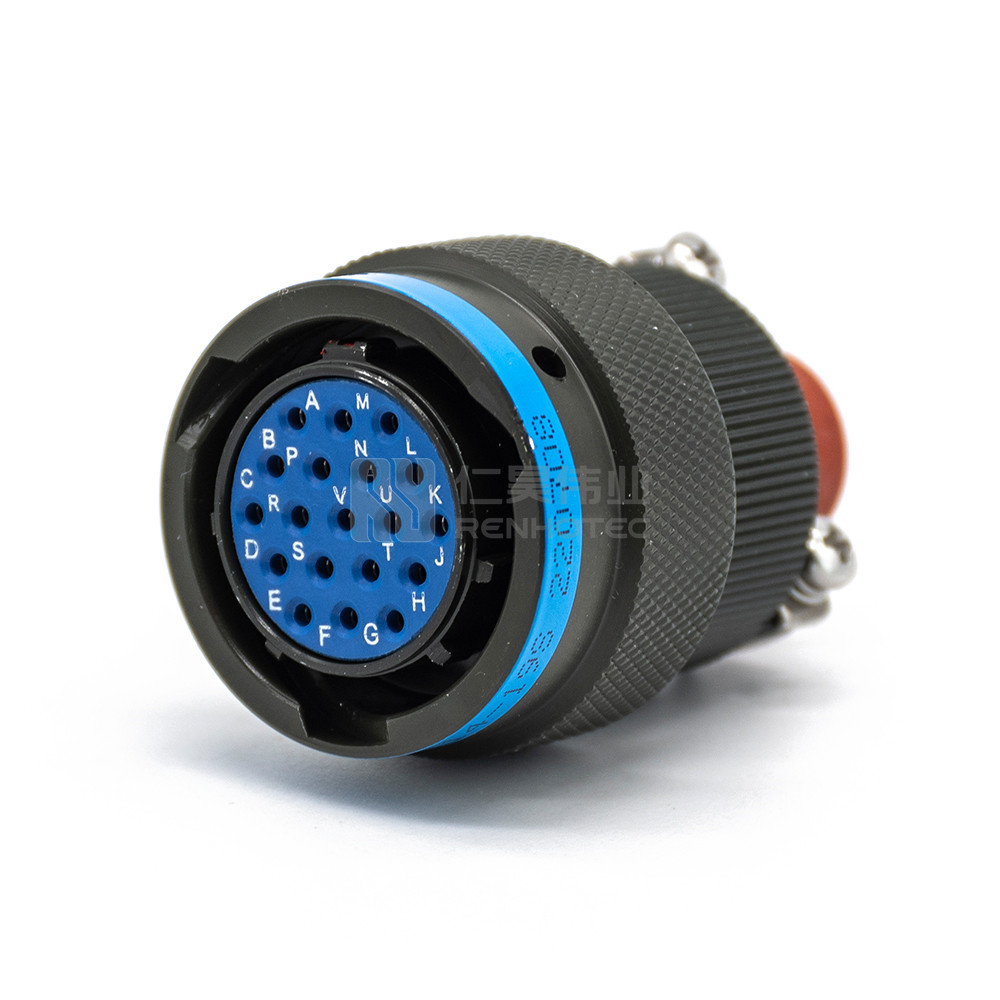

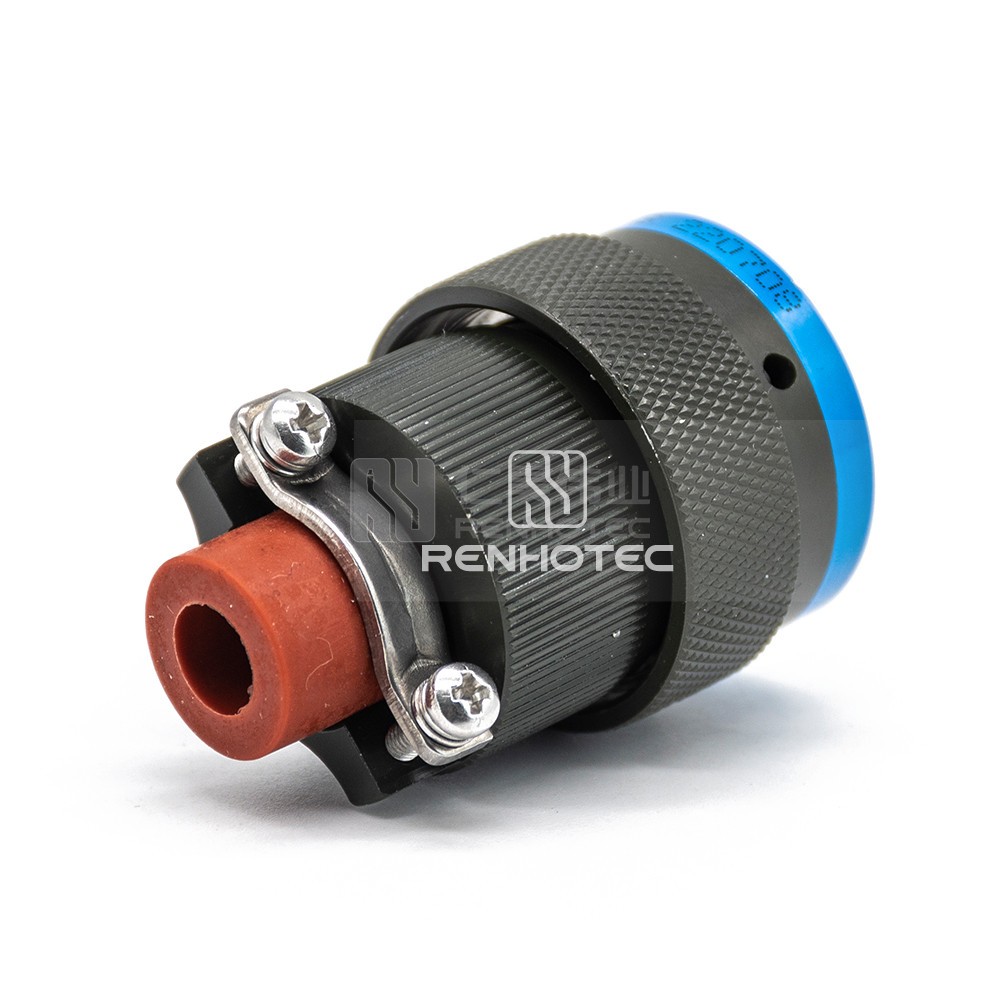

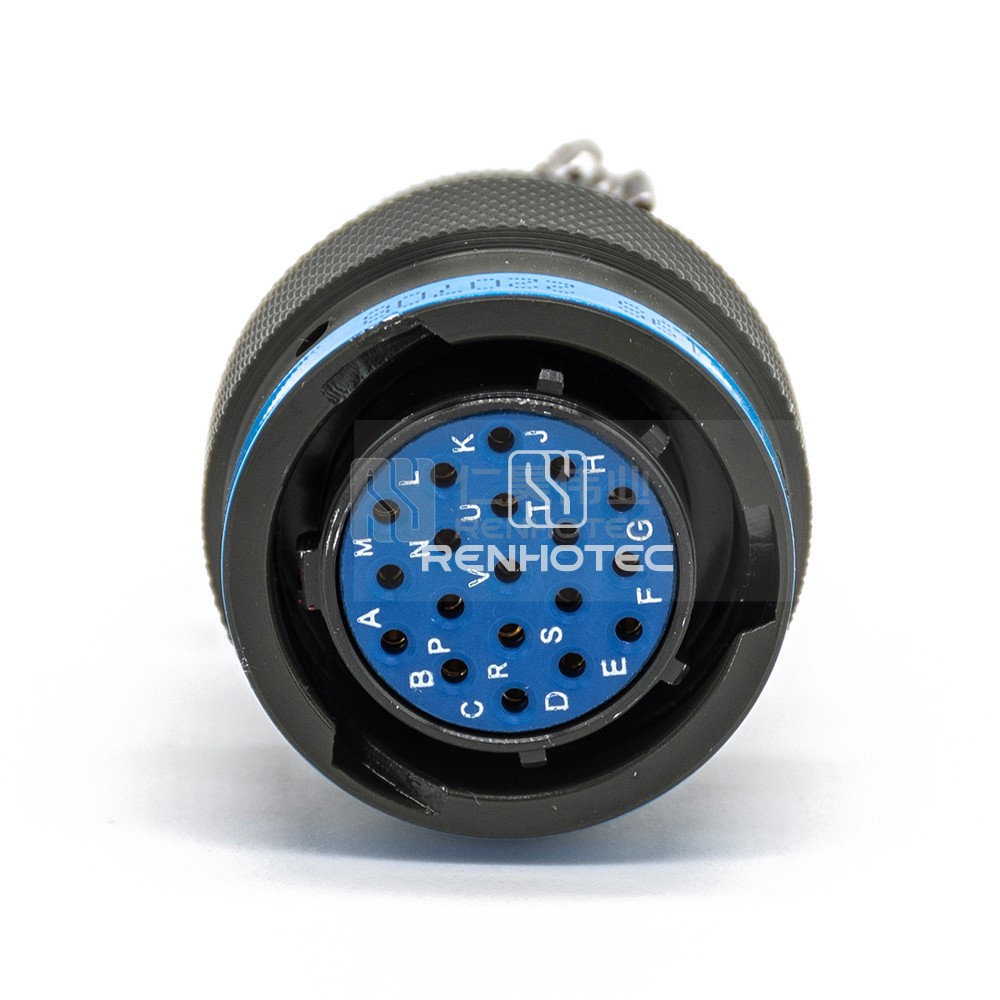

MIL-DTL-26482 Connector MS3116F14-19S Female Straight Plug 19 Pin

Get MIL-DTL-26482 MS3116F14-19S female straight plug connector with 19 pins. Reliable and durable connection for your electrical applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions19
    Contact Arrangements14-19
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG24,22,20

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
