Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F14-4P Male Straight Plug 4 Pin

MS3116F14-4P/PT06E-14-4P(SR)

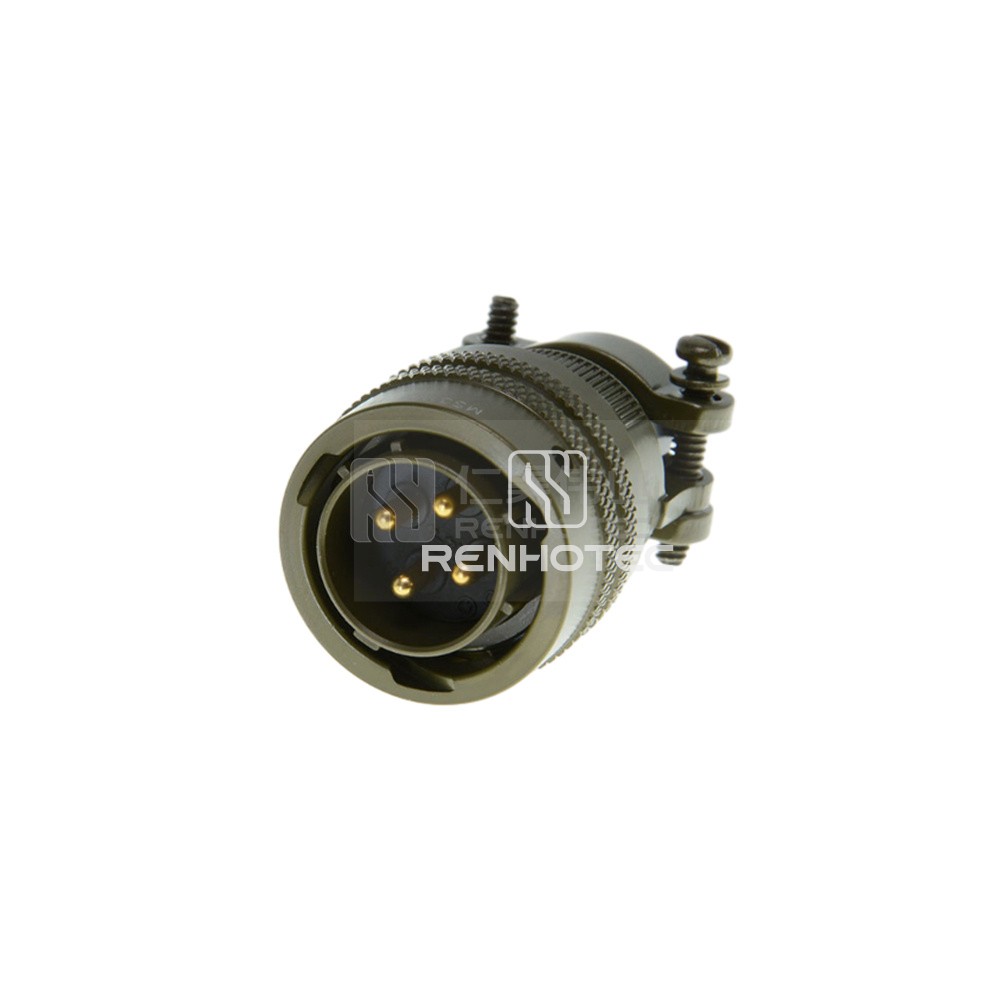

MIL-DTL-26482 Connector MS3116F14-4P Male Straight Plug 4 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 connector MS3116F14-4P male straight plug with 4 pins. Ideal for reliable and secure connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements14-4
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or RangeAWG14，12

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current23A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
