Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F14-4S Female Straight Plug 4 Pin

MS3116F14-4S/PT06E-14-4S(SR)

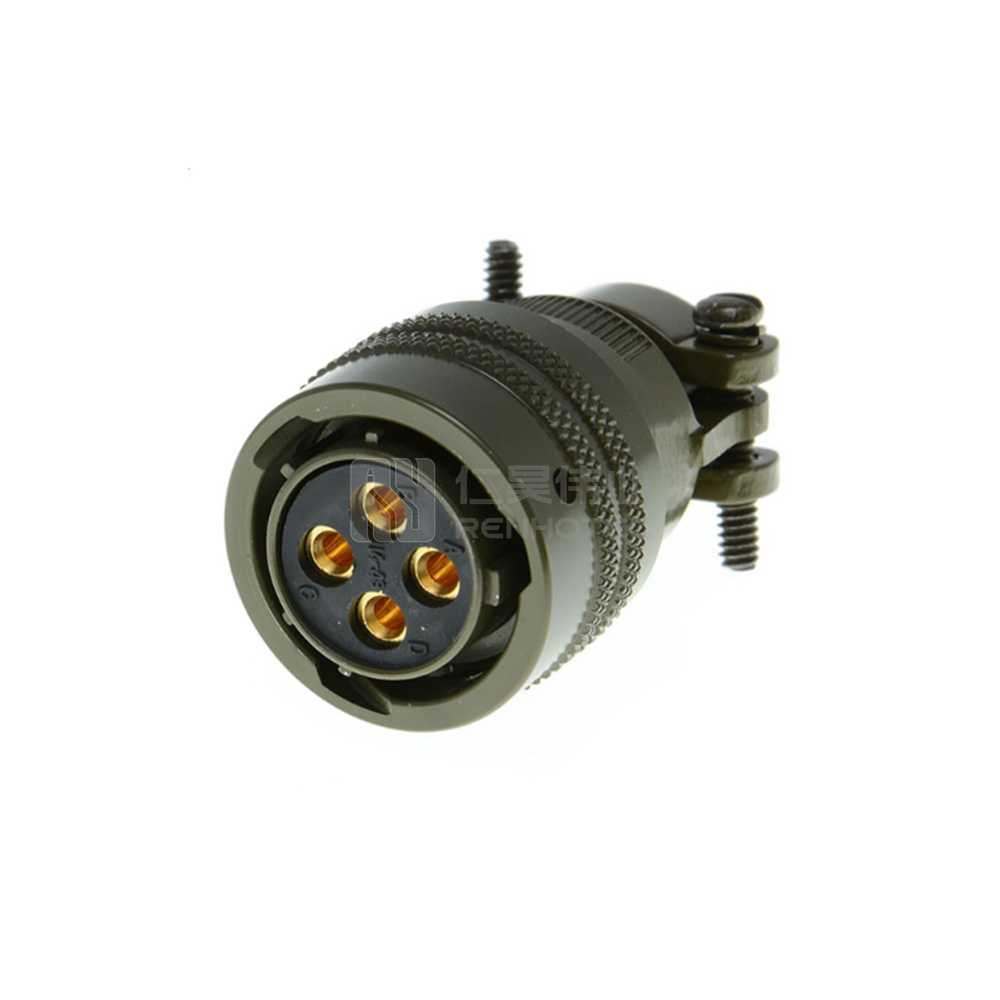

MIL-DTL-26482 Connector MS3116F14-4S Female Straight Plug 4 Pin

High-quality MIL-DTL-26482 connector MS3116F14-4S female straight plug with 4 pins. Reliable and durable connectivity solution for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions4
    Contact Arrangements14-4
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size14

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG14,12

    Electrical

    ShieldingUnshielded
    Rated Current23A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
