Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F16-26P Male Straight Plug 26 Pin

MS3116F16-26P/PT06E-16-26P(SR)

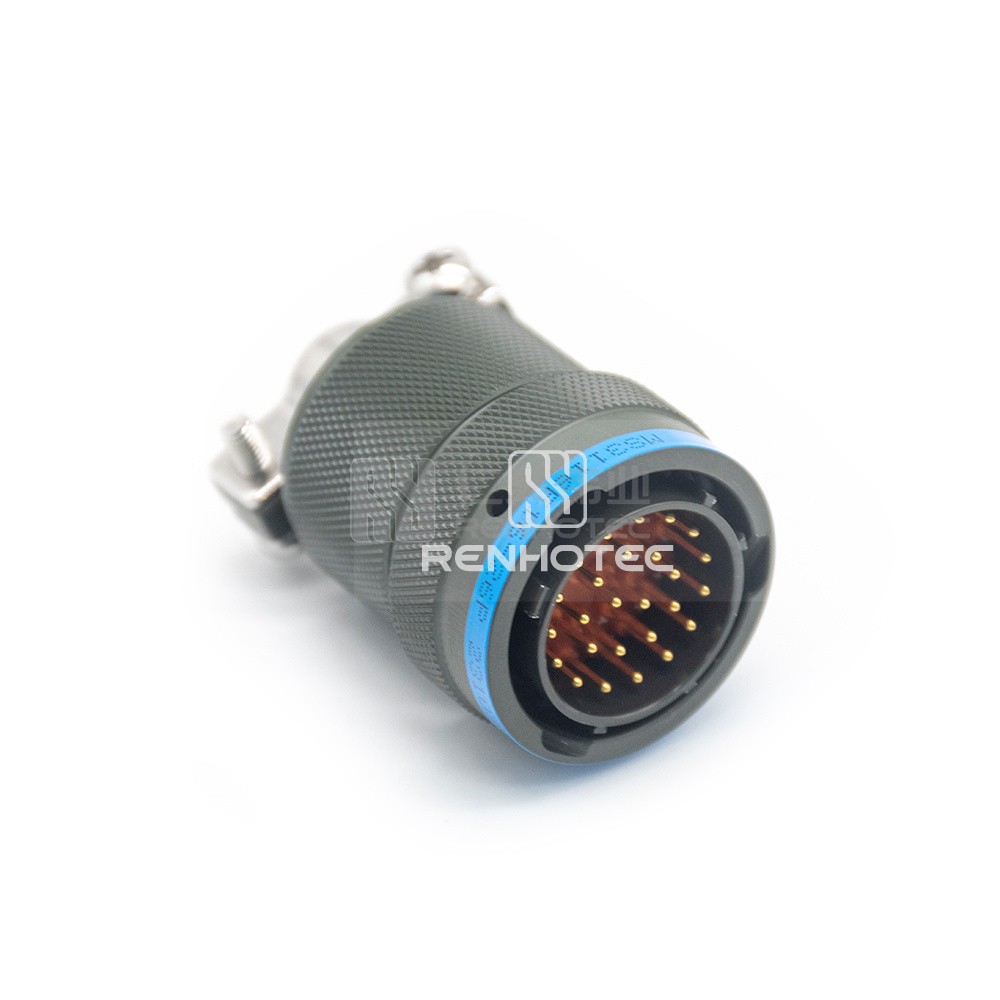

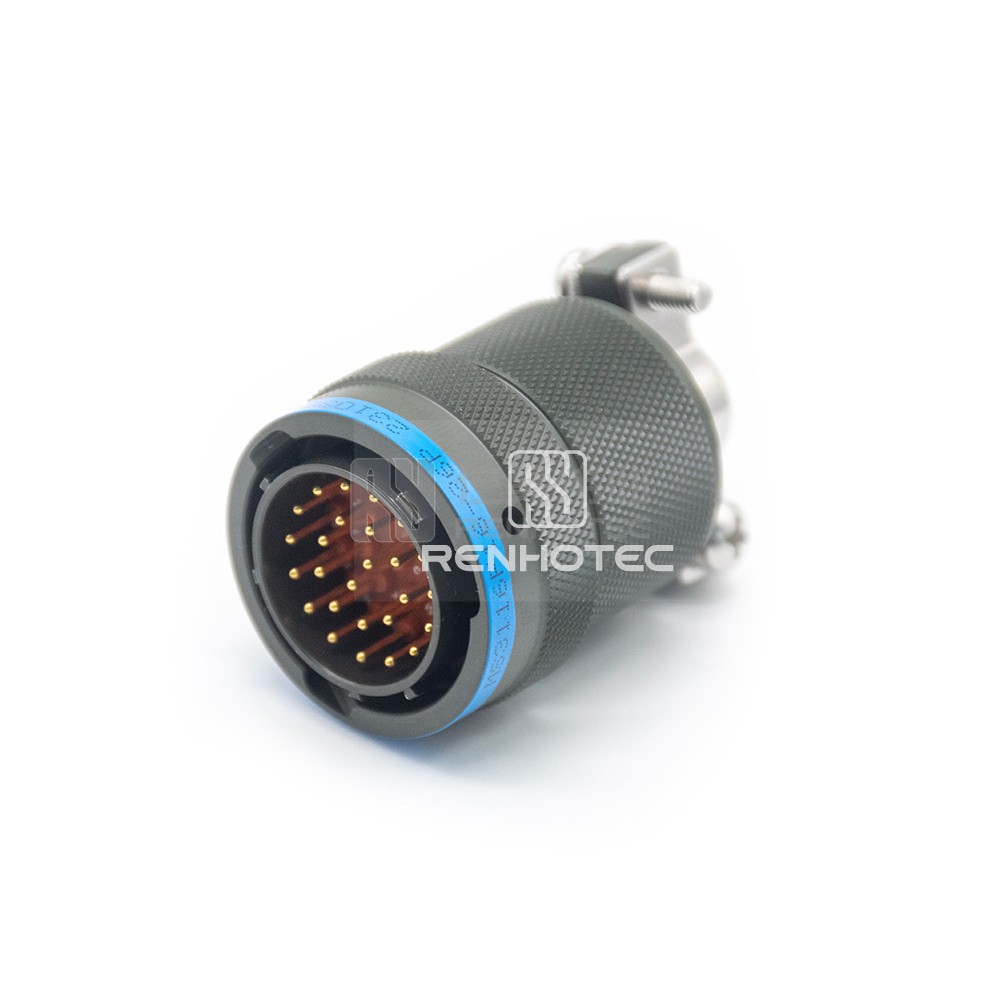

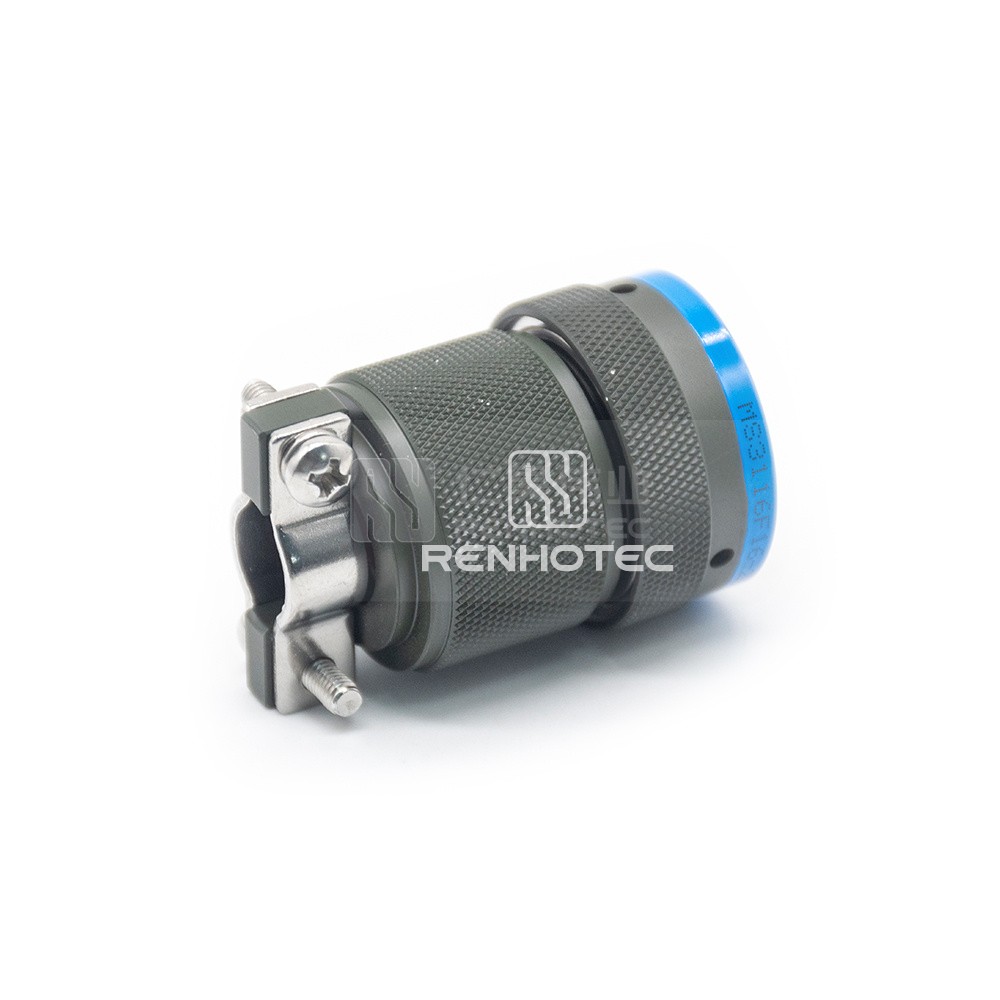

MIL-DTL-26482 Connector MS3116F16-26P Male Straight Plug 26 Pin

High-quality MIL-DTL-26482 connector with MS3116F16-26P male straight plug featuring 26 pins. Ideal for reliable connection in demanding environments.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions26
    Contact Arrangements16-26
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size16

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG24,22,20

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
