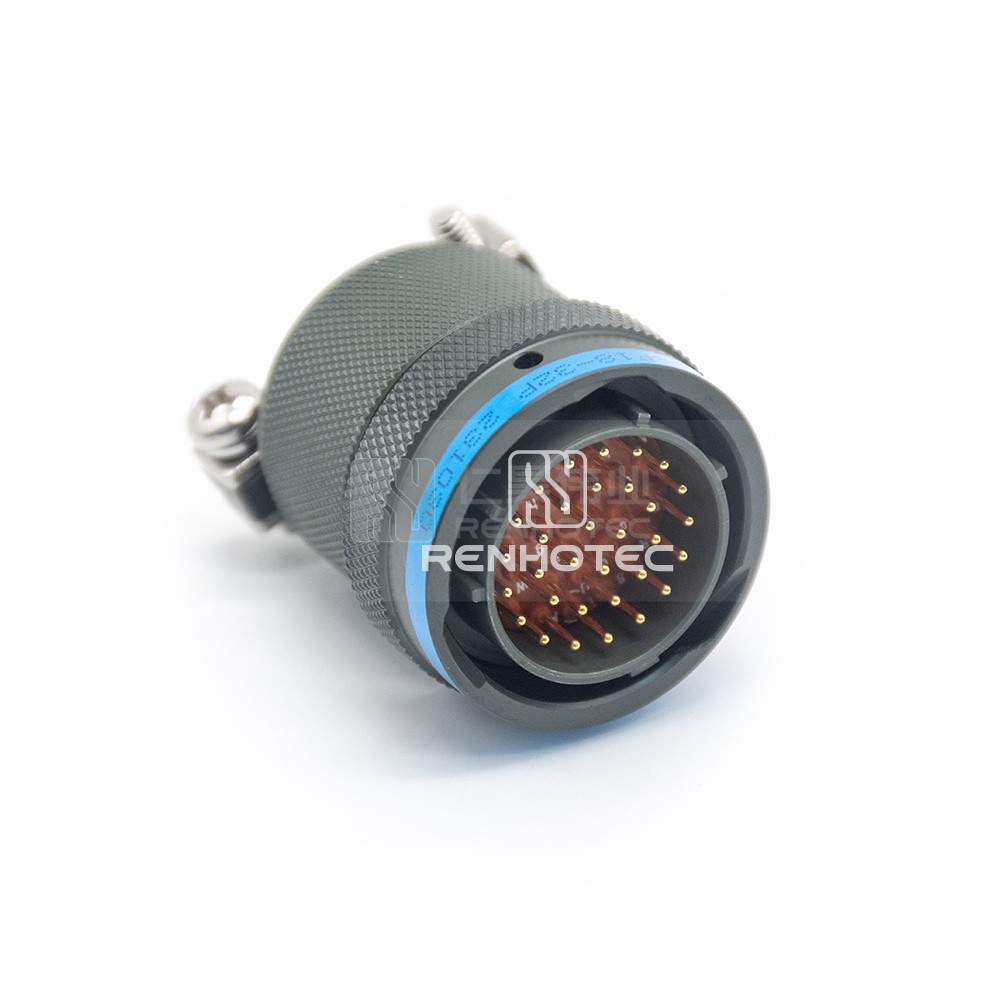

product image

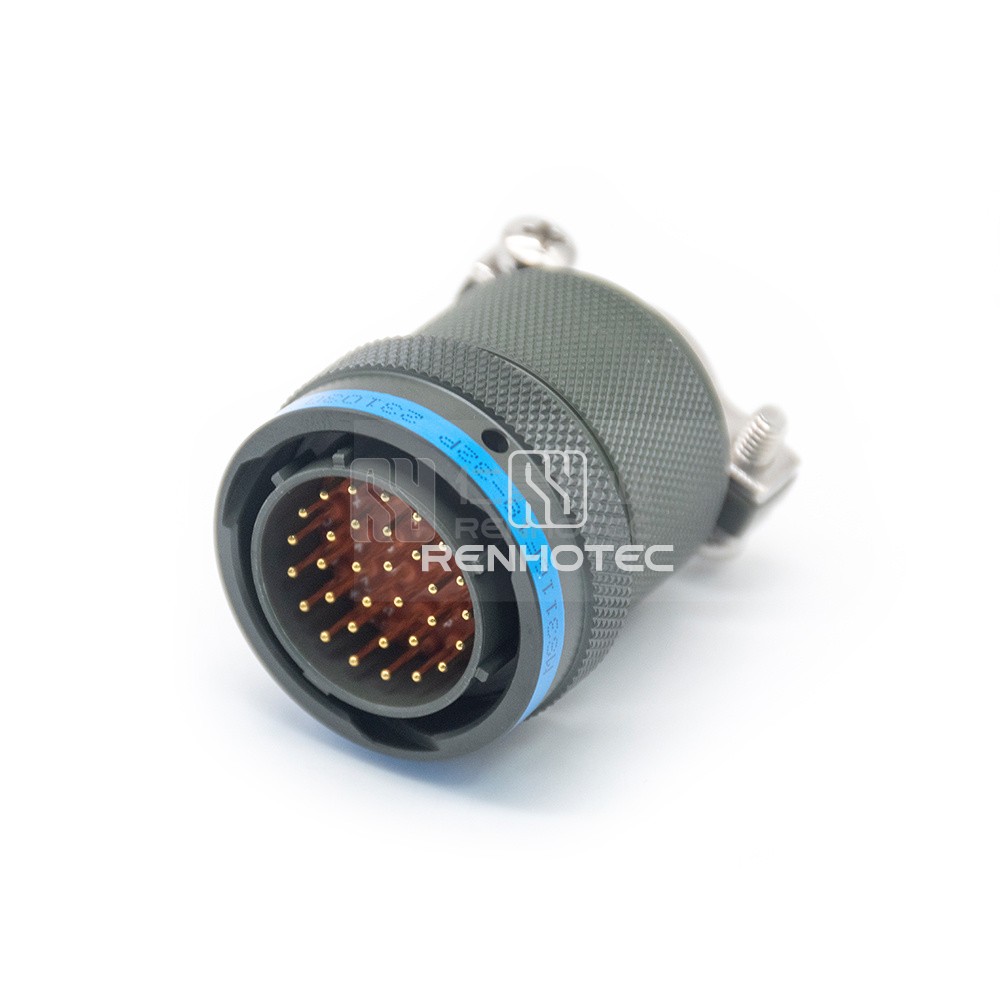

product image

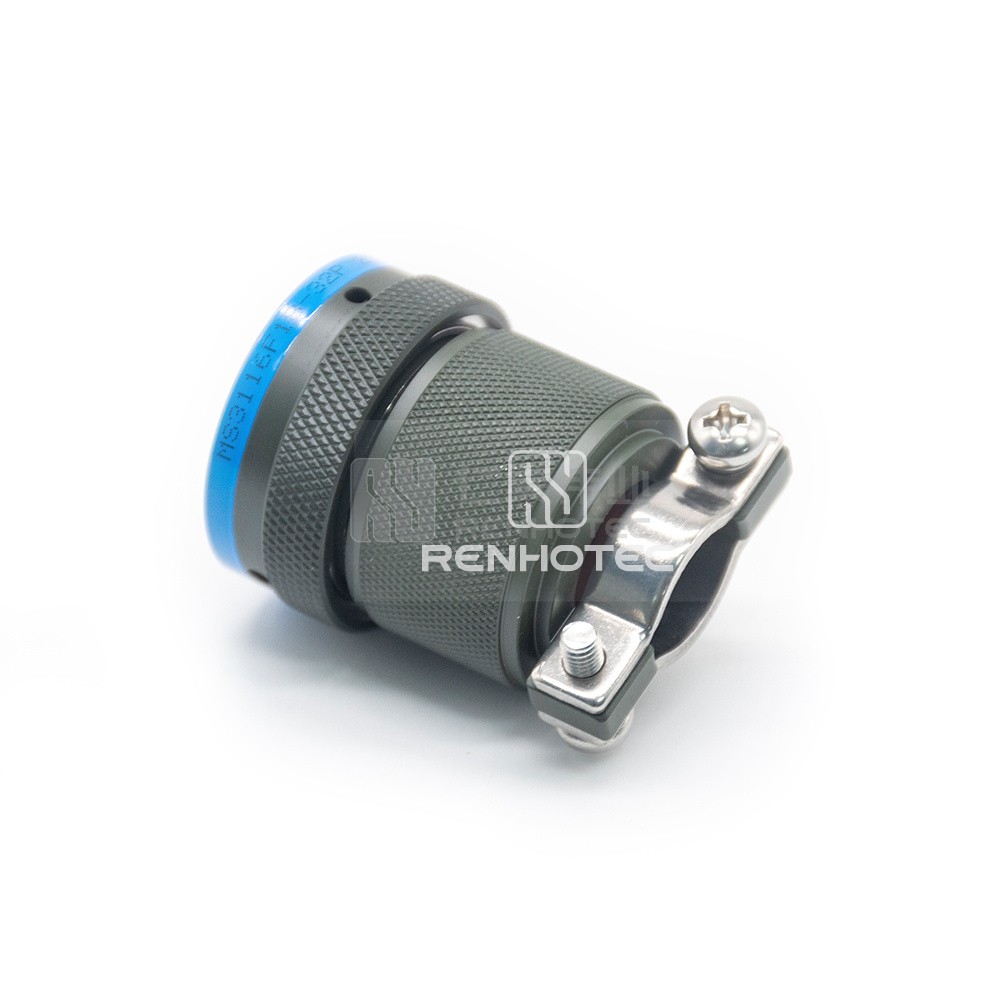

product image

MS3116F18-32P/PT06E-18-32P(SR)

MIL-DTL-26482 Connector MS3116F18-32P Male Straight Plug 32 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High quality MIL-DTL-26482 Connector MS3116F18-32P Male Straight Plug with 32 pins. Ideal for secure and reliable connections in various industrial applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeMale Pin
Number of Positions32
Contact Arrangements18-32
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or RangeAWG24，22，20
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size18
Electrical
ShieldingUnshielded
Rated Current7.5A
Rated Voltage600V
