Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F18-32S Female Straight Plug 32 Pin

MS3116F18-32S/PT06E-18-32S(SR)

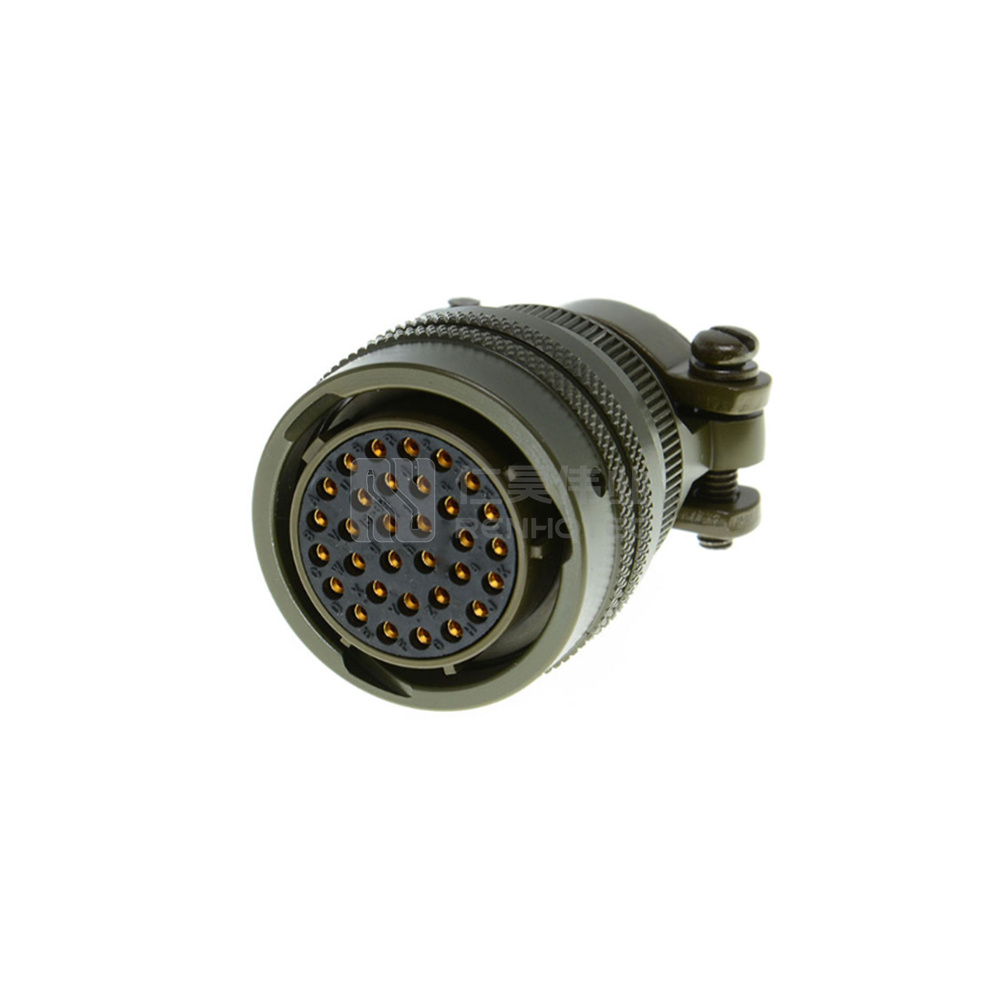

MIL-DTL-26482 Connector MS3116F18-32S Female Straight Plug 32 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 connector featuring MS3116F18-32S Female Straight Plug with 32 pins for secure and reliable connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions32
    Contact Arrangements18-32
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size18

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or RangeAWG24，22，20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
