Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F20-16S Female Straight Plug 16 Pin

MS3116F20-16S/PT06E-20-16S(SR)

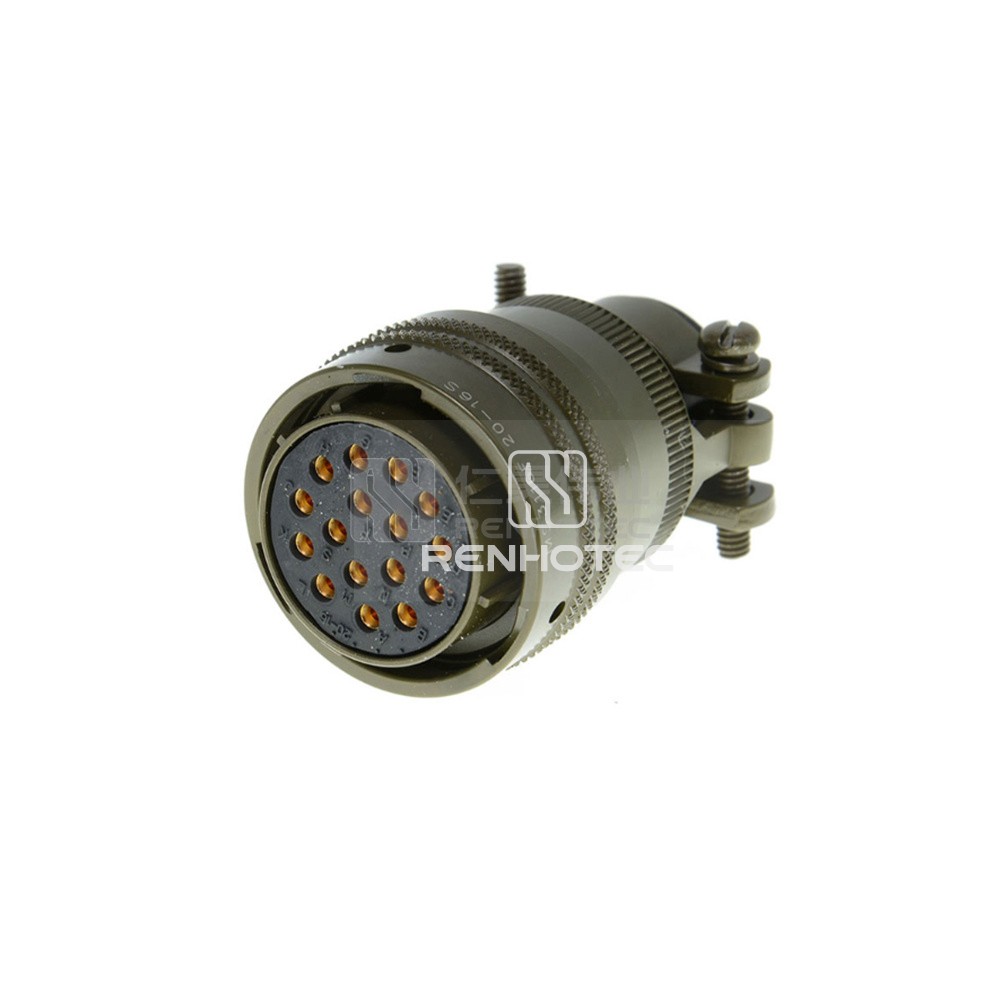

MIL-DTL-26482 Connector MS3116F20-16S Female Straight Plug 16 Pin

High-quality MIL-DTL-26482 connector featuring MS3116F20-16S Female Straight Plug with 16 pins. Ideal for a secure and reliable electrical connection in various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions16
    Contact Arrangements20-16
    Fastening TypeBayonet
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG20,18,16

    Electrical

    ShieldingUnshielded
    Rated Current22A
    Rated Voltage1000V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог разъемов RENHOTEC 26482 [RU] Download
    RENHOTEC 26482 Catalog [EN] Download
