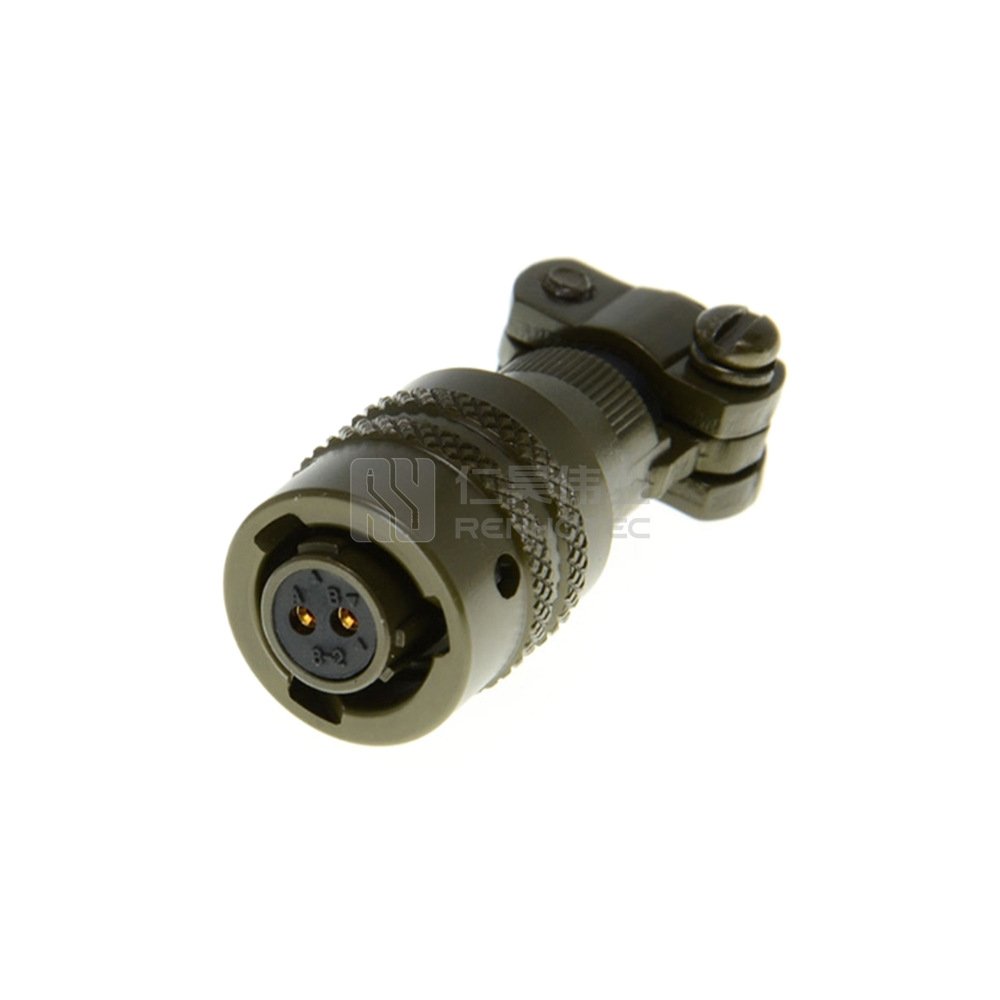

High-quality MIL-DTL-26482 connector with MS3116F8-2S Female Straight Plug, ideal for connecting two-pin electronic systems reliably and securely.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 2 |
Contact Arrangements | 8-2 |
Contact Termination | Solder Cup |
Color | Olive Green |
Shell
Shell Size | 8 |
Mechanical
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | AWG24,22,20 |
Material
Shell Material | Aluminum Alloy |
Contact Finish | Gold |
Insulating Material | Synthetic Rubber |
Contact Material | Copper Alloy |
Electrical
Shielding | Unshielded |
Rated Current | 7.5A |
Rated Voltage | 600V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
