Products > MIL Spec Connector > MIL-DTL-26482 Connector MS3116F8-3S Female Straight Plug 3 Pin

MS3116F8-3S/PT06E-8-3S(SR)

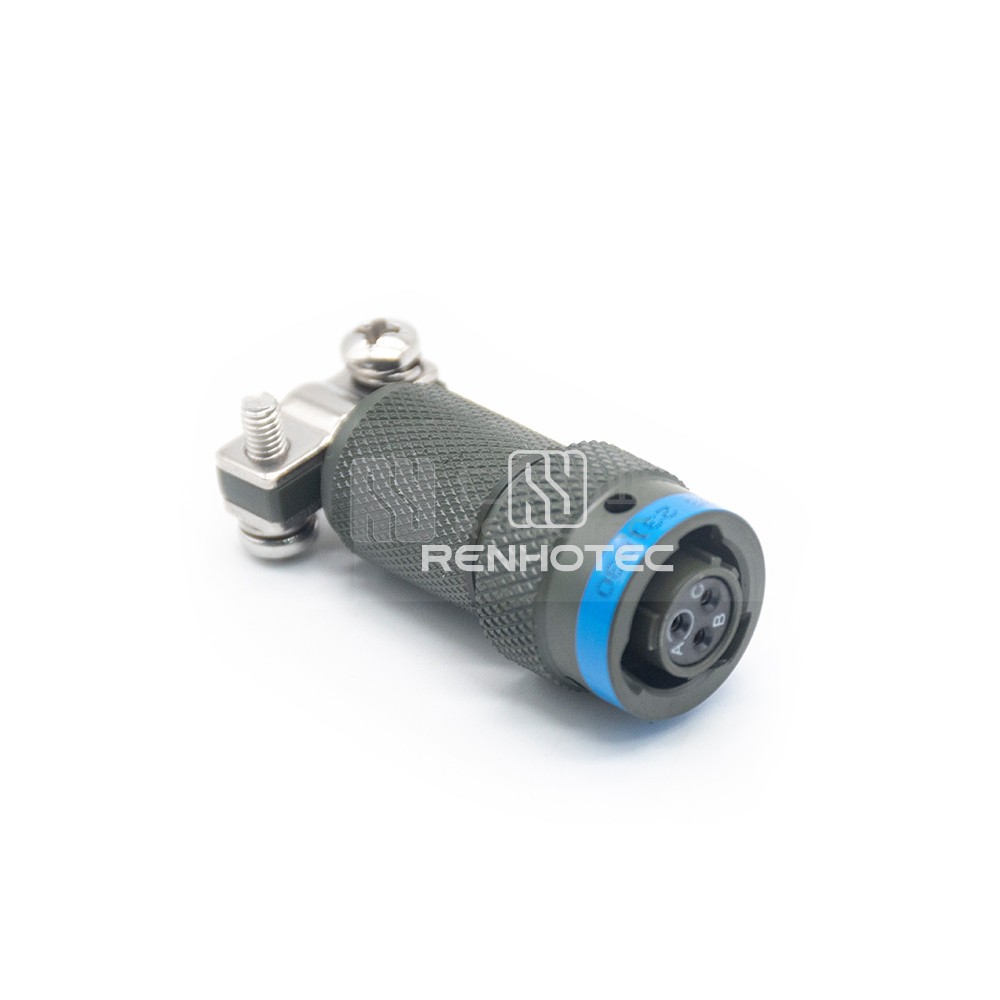

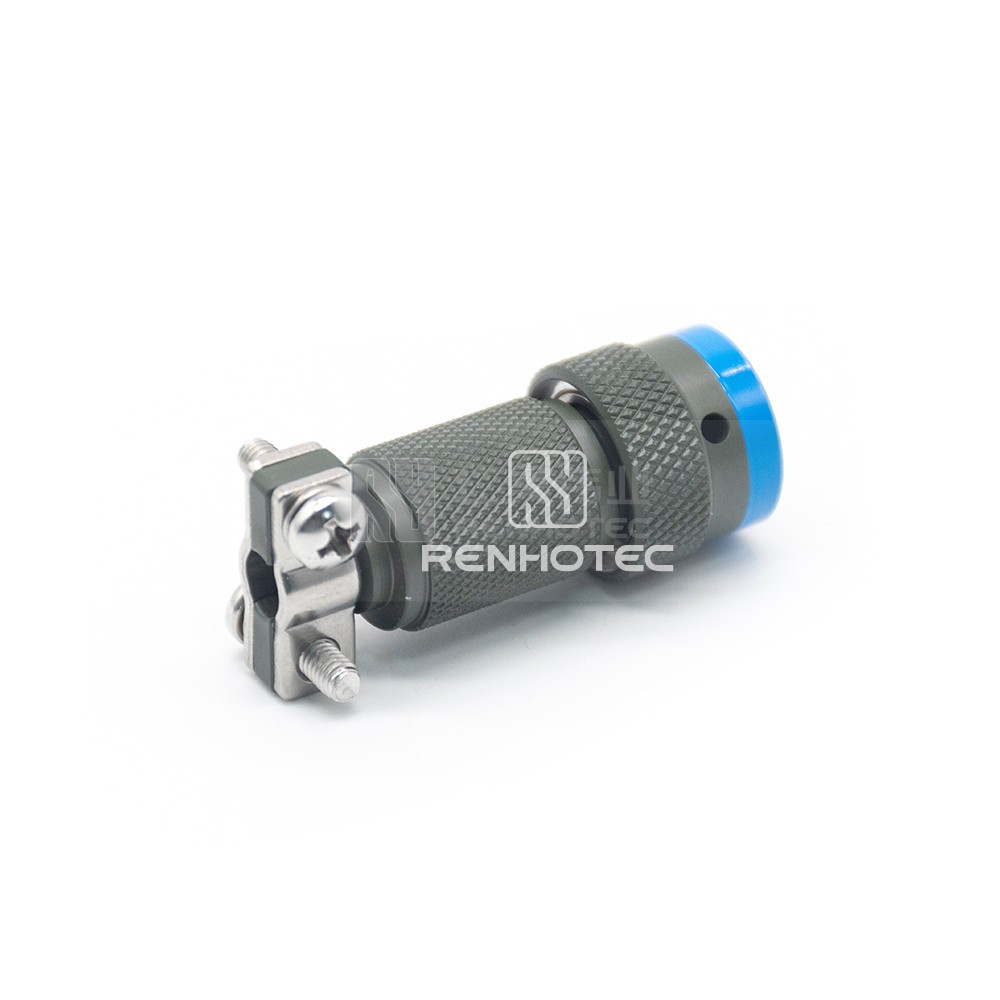

MIL-DTL-26482 Connector MS3116F8-3S Female Straight Plug 3 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-26482 Connector MS3116F8-3S Female Straight Plug with 3 pins. Durable and reliable, perfect for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    Contact Arrangements8-3
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size8

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type
    Wire Gauge or RangeAWG24，22，20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
