Products > MIL Spec Connector > MIL-DTL-26482 MS3112E20-41P Male Box Mount Receptacle 41 Pin

MS3112E20-41P/PT02E-20-41P

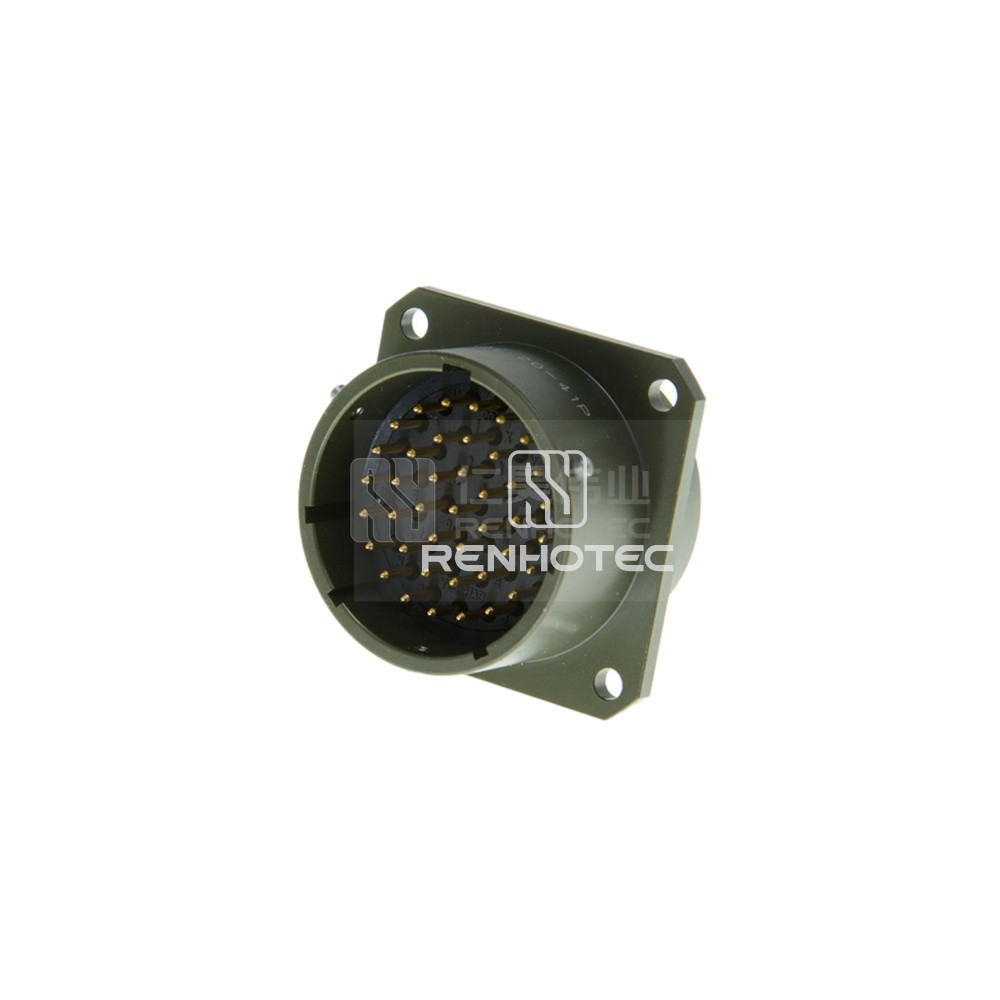

MIL-DTL-26482 MS3112E20-41P Male Box Mount Receptacle 41 Pin

High-quality MIL-DTL-26482 MS3112E20-41P male box mount receptacle with 41 pins. Ideal for reliable and secure connections in various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Mechanical
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions41
    Contact Arrangements20-41
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    ColorOlive Green

    Shell

    Shell Size20

    Material

    Shell MaterialAluminum Alloy
    Contact FinishGold
    Insulating MaterialSynthetic Rubber
    Contact MaterialCopper Alloy

    Mechanical

    Wire Gauge or RangeAWG24,22,20

    Electrical

    ShieldingUnshielded
    Rated Current7.5A
    Rated Voltage600V

    Environmental

    Operating Temperature-55°C ~ + 125°C
