Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/20FB35SN Female Square Flange Receptacle 13 Pin

D38999/20FB35SN

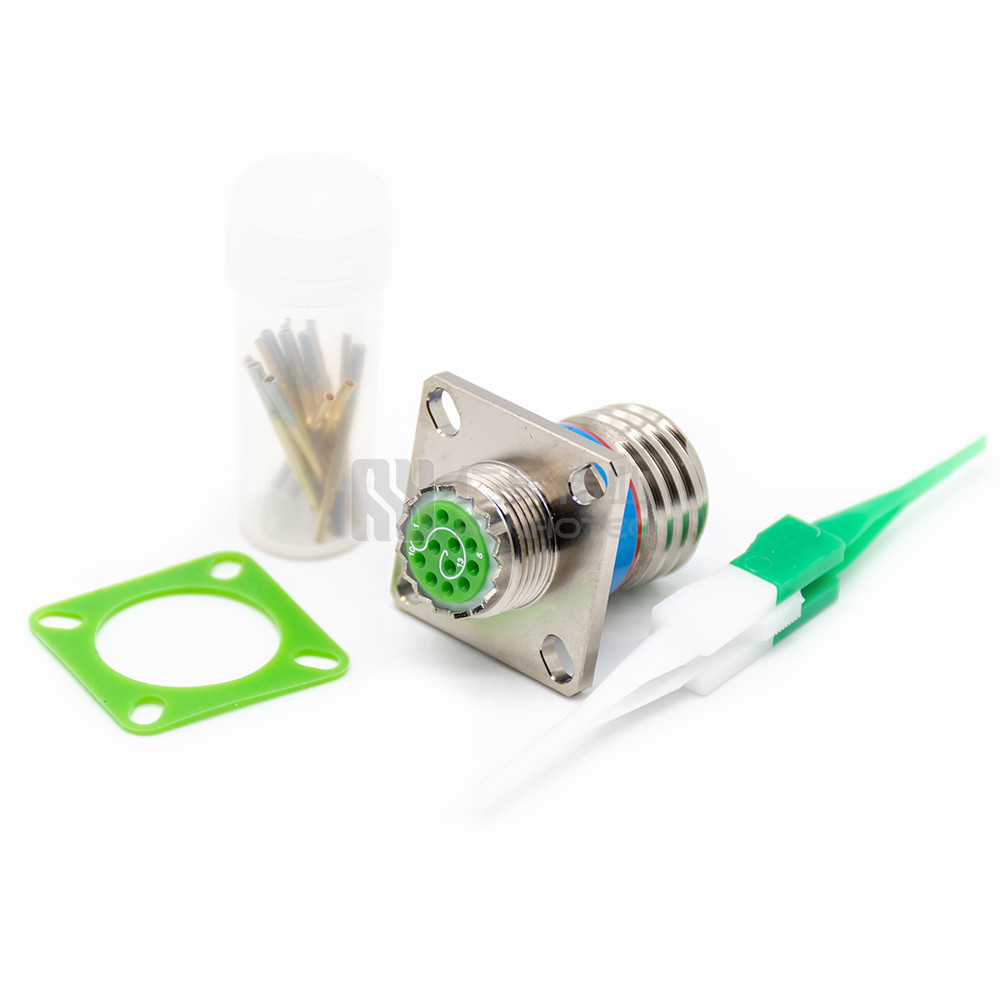

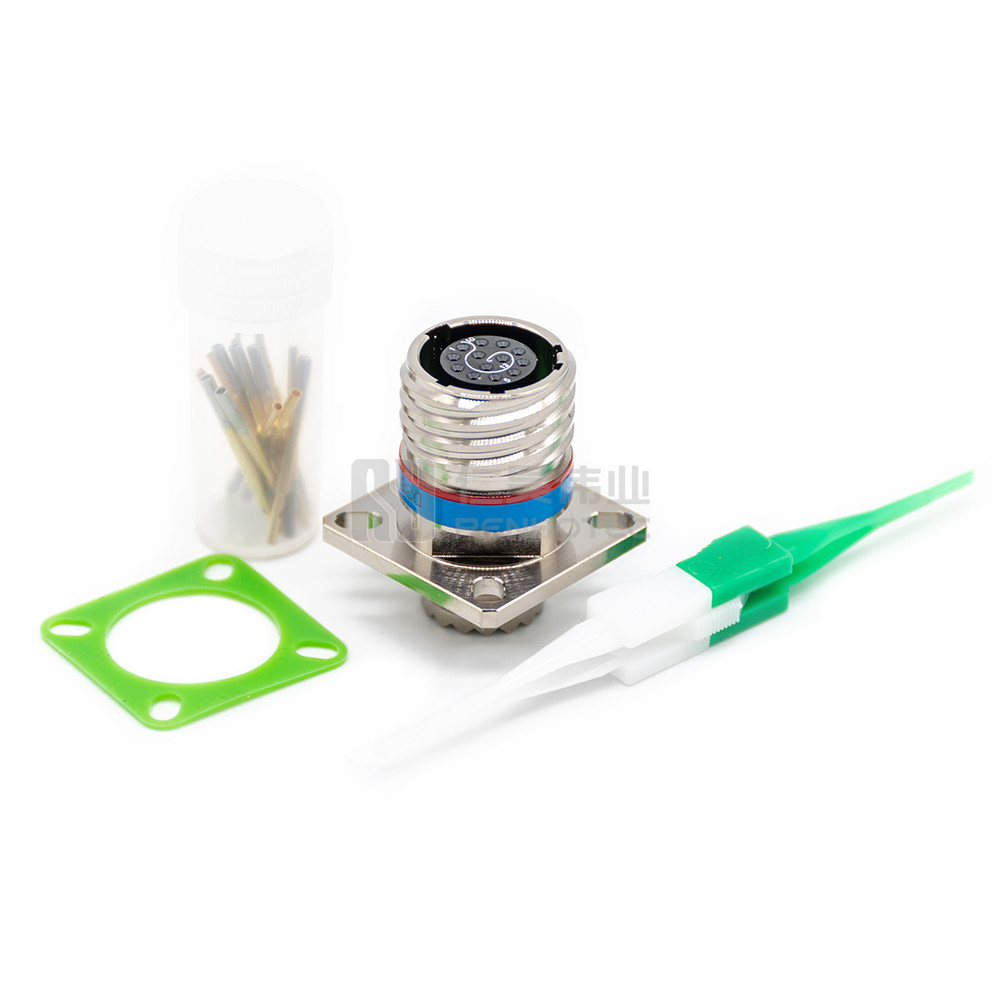

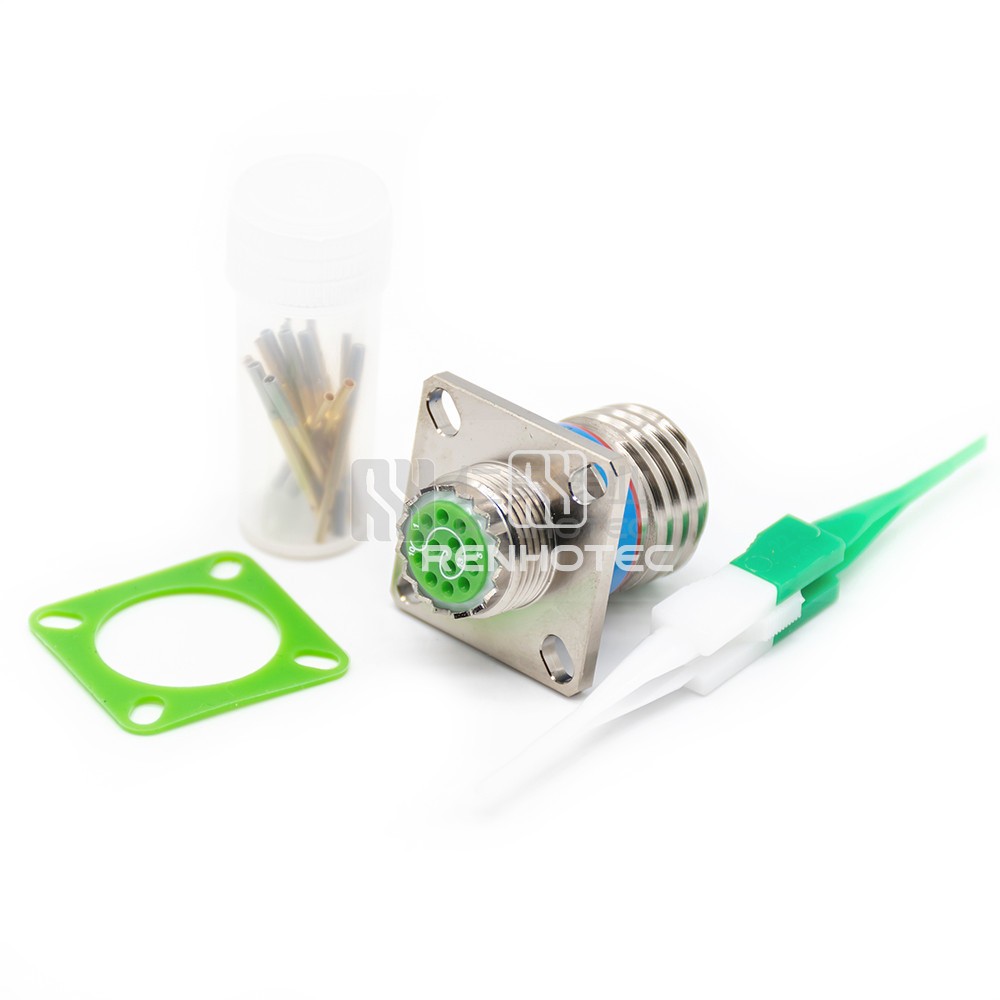

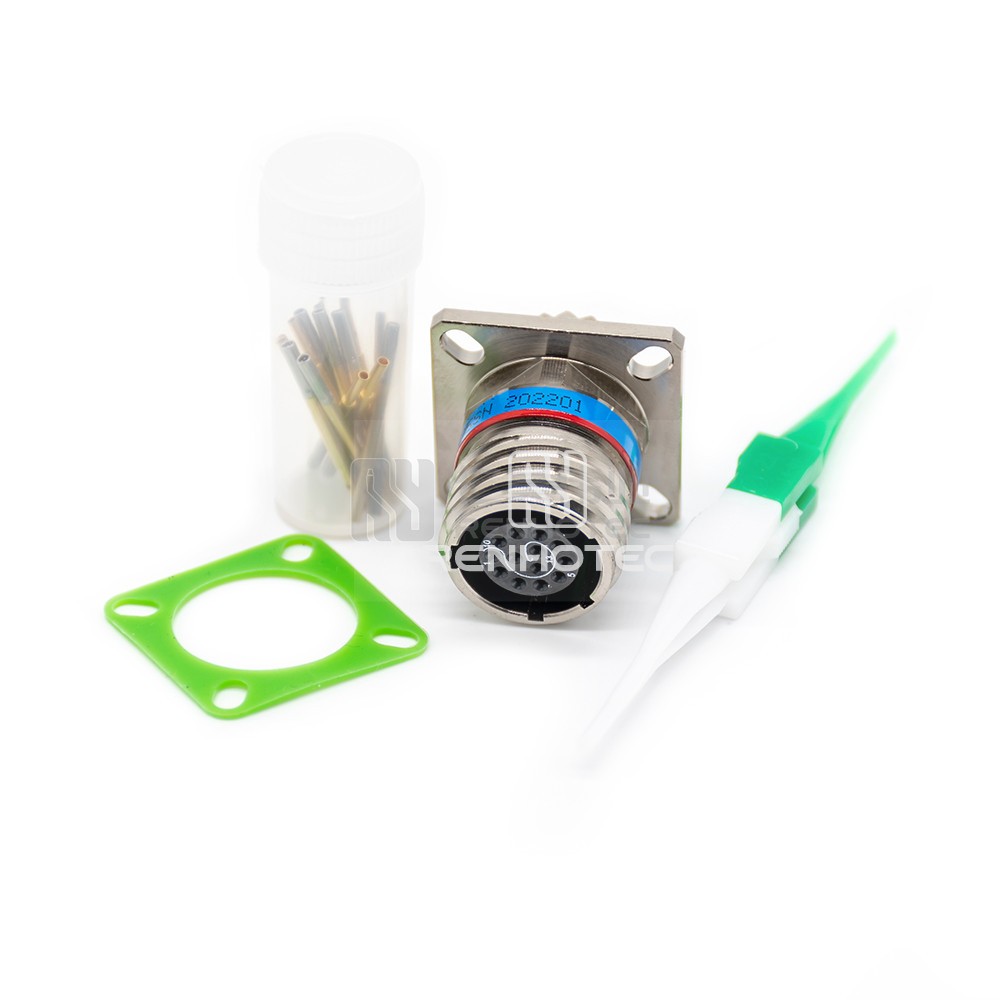

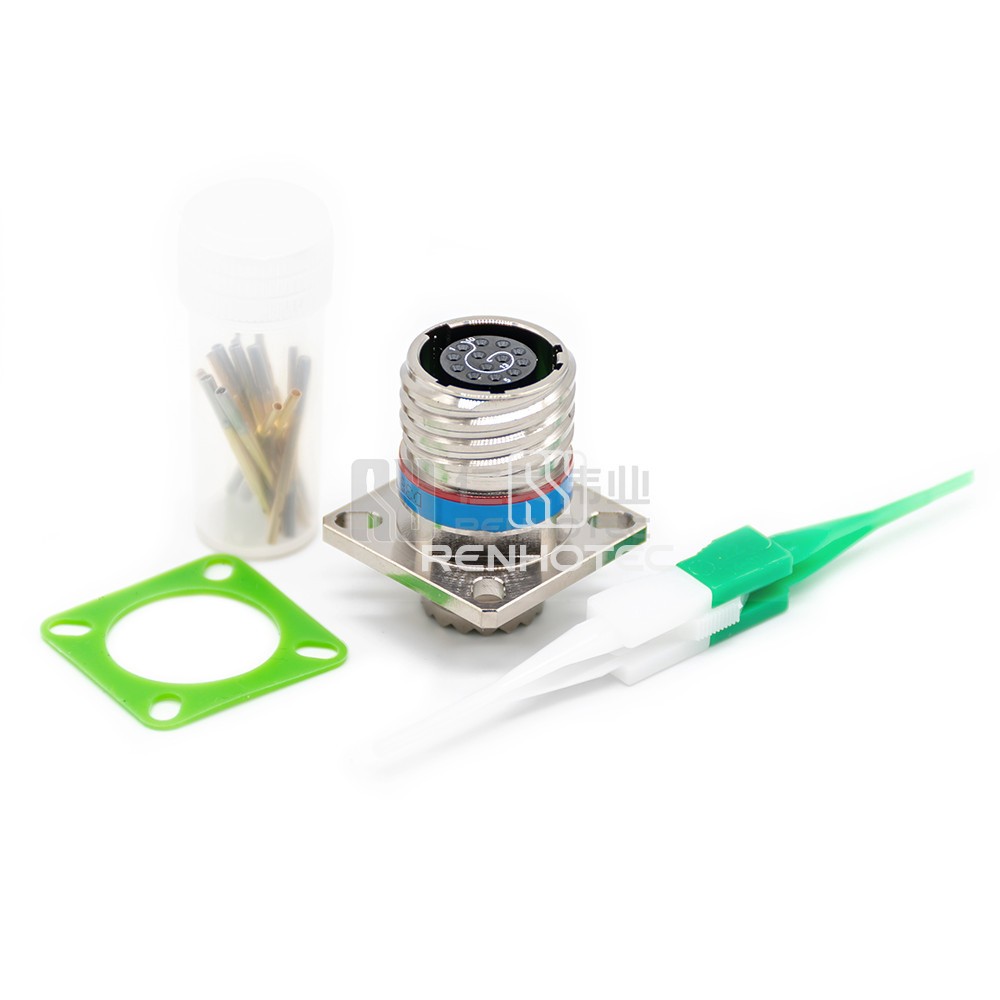

MIL-DTL-38999 Connector D38999/20FB35SN Female Square Flange Receptacle 13 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 female square flange receptacle with 13 pins. Perfect for secure and reliable electrical connections in demanding environments.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions13
    Contact Arrangements11-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeB

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishNickel Plated
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
