Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/20WA35PN Male Square Flange Receptacle 5 Pin

D38999/20WA35PN

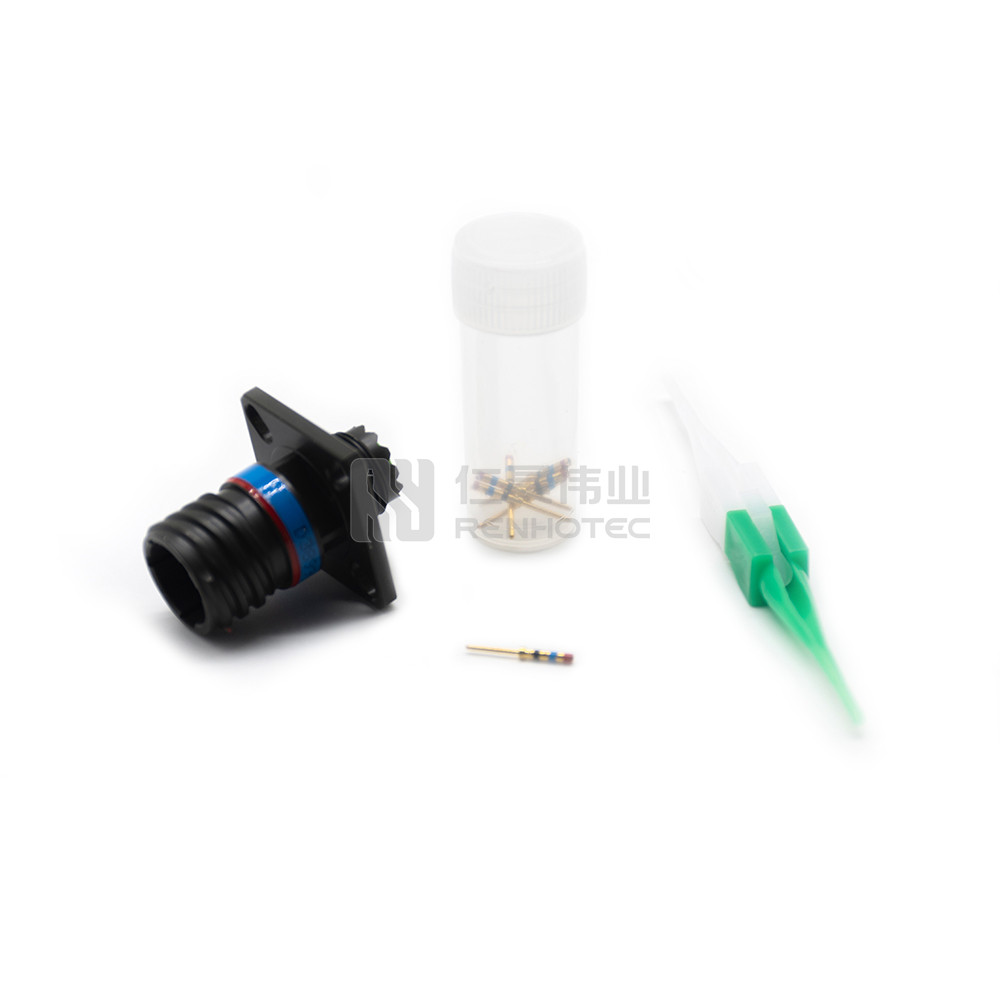

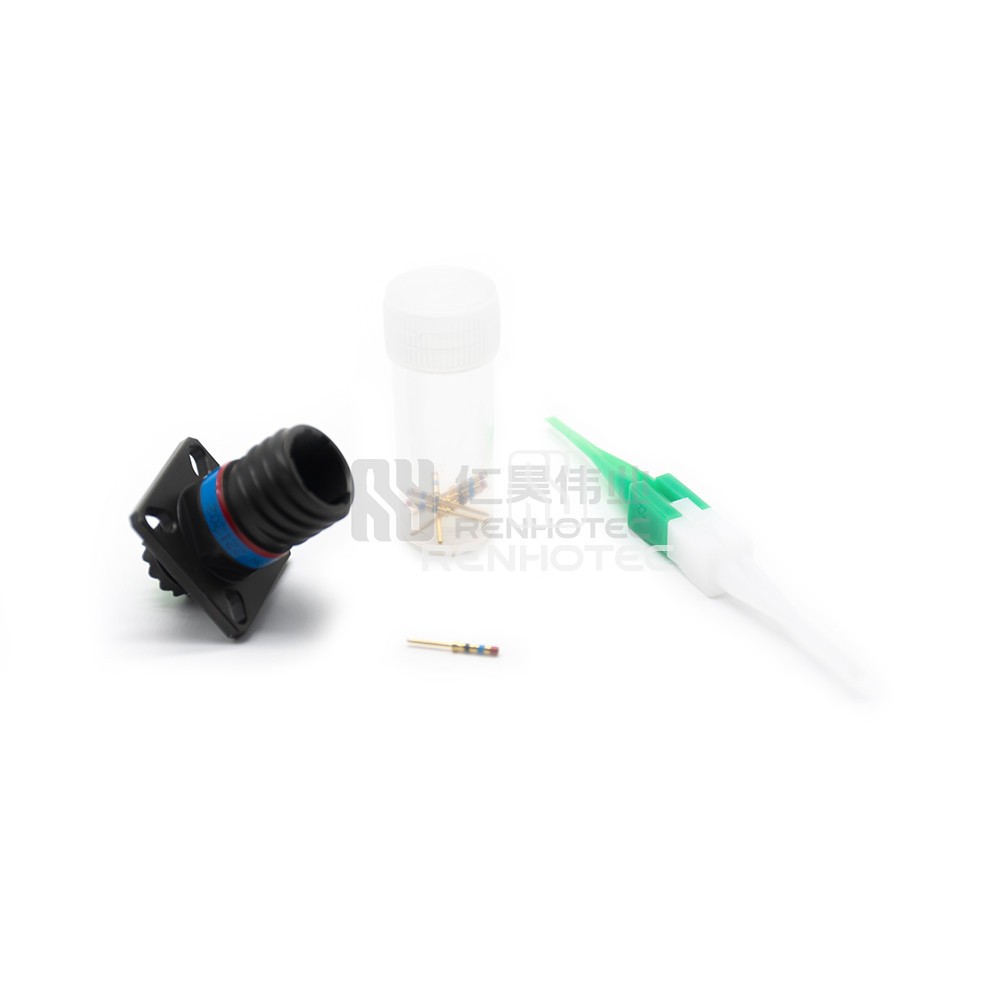

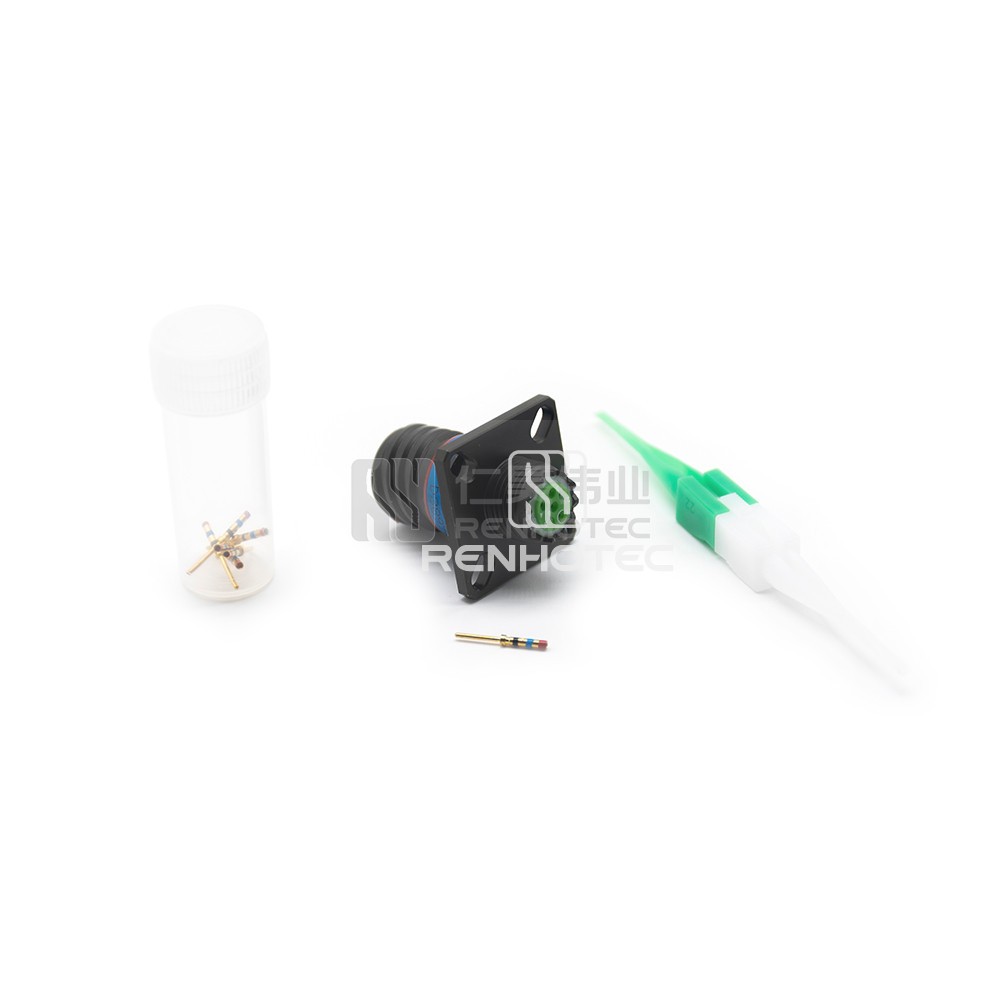

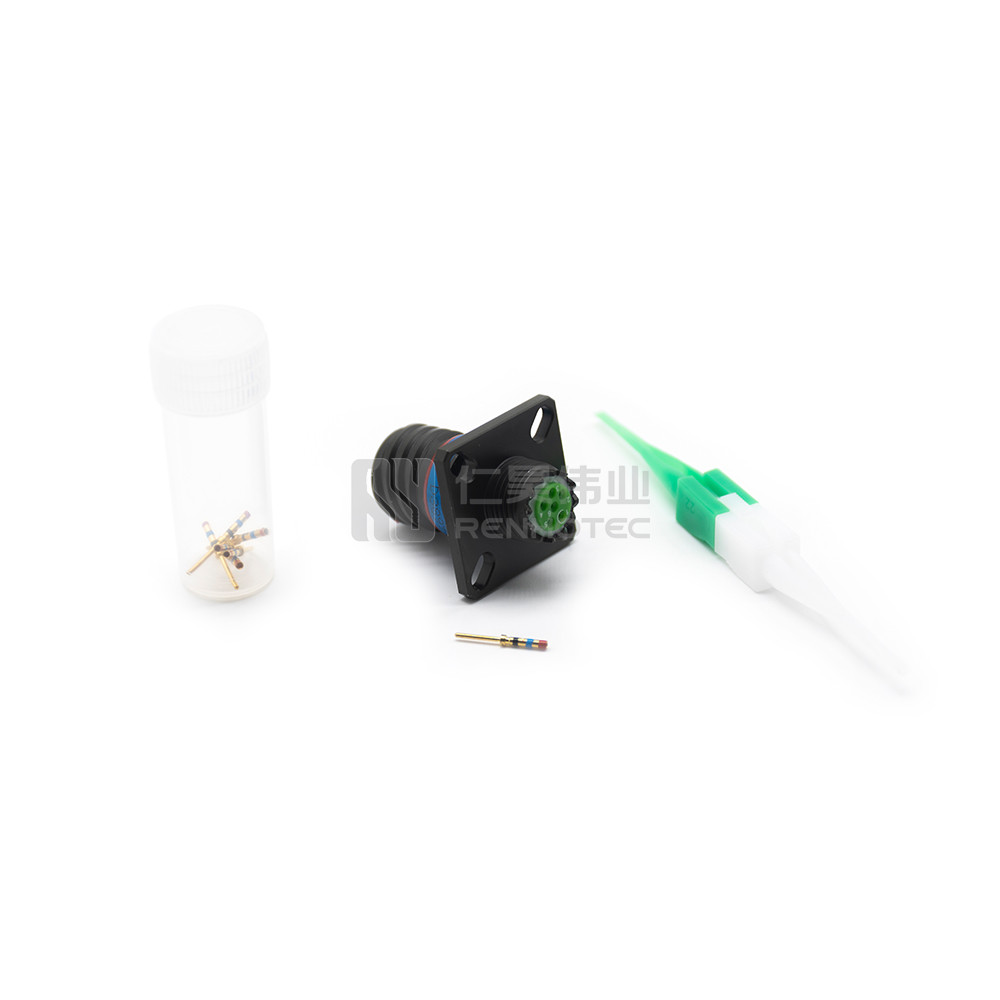

MIL-DTL-38999 Connector D38999/20WA35PN Male Square Flange Receptacle 5 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 square flange receptacle connector with 5 pins, ideal for industrial and military applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions5
    Contact Arrangements9-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeA

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
